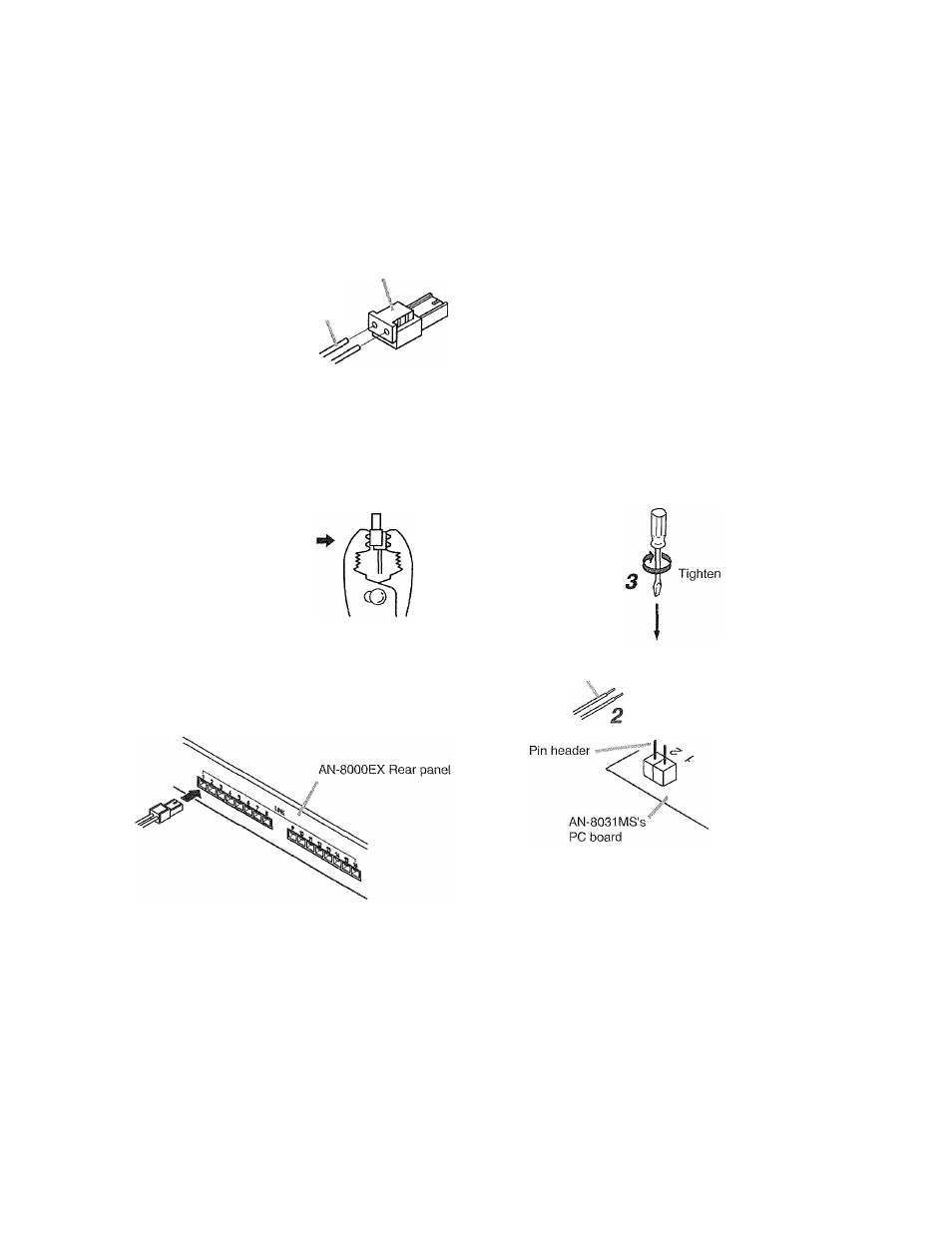

3.6. Terminal Station Connection 3.7. Terminal Plug Connection
Mini-clamp connectors for line terminals and removable
terminal plugs for paging output terminal are supplied with
the AN-8000EX Exchange.
Perform each connector connection as follows.
Step 1. Cut off two-cable ends in equal length, and insert
them securely to a cover section (transparent
side) of the mini-clamp connector.
Note
Insert the cable without stripping the cable jacket.
Step 1. Strip a cable jacket of approx. 5 mm from the
cable end.
5 mm
Note
Do not solder plate on exposed inner cables
when using a stranded wire.
Cover
(transparent side)
Cable
Step 2. With a pair of pliers, lightly pinch the mini-clamp
cover and, after ensuring that the cable is
securely inserted, firmly squeeze on the cover.
Note
Squeeze on the mini-clamp cover until it is
correctly locked.
steps. Insert the wired connector (plug) into the
exchange's connector (socket) until it locks into
place.
Step 2. Loosen the terminal screws and insert the cables.
Step 3. Tighten the terminal screws securely.
Notes
® Tug lightly on the cable to be sure that it does
not pull free. If the cable pulls free, loosen the
terminal screw again and reconnect from Step 2.
» To avoid stripping the screws, use the
screwdriver appropriate to the screws tightened
into the terminal plug.
Step 4. Insert the wired terminal plug into the pin header
on the AN-8031 MS's PC board.
Cable
Removable terminal plug
D4 ? (accessory)
\
