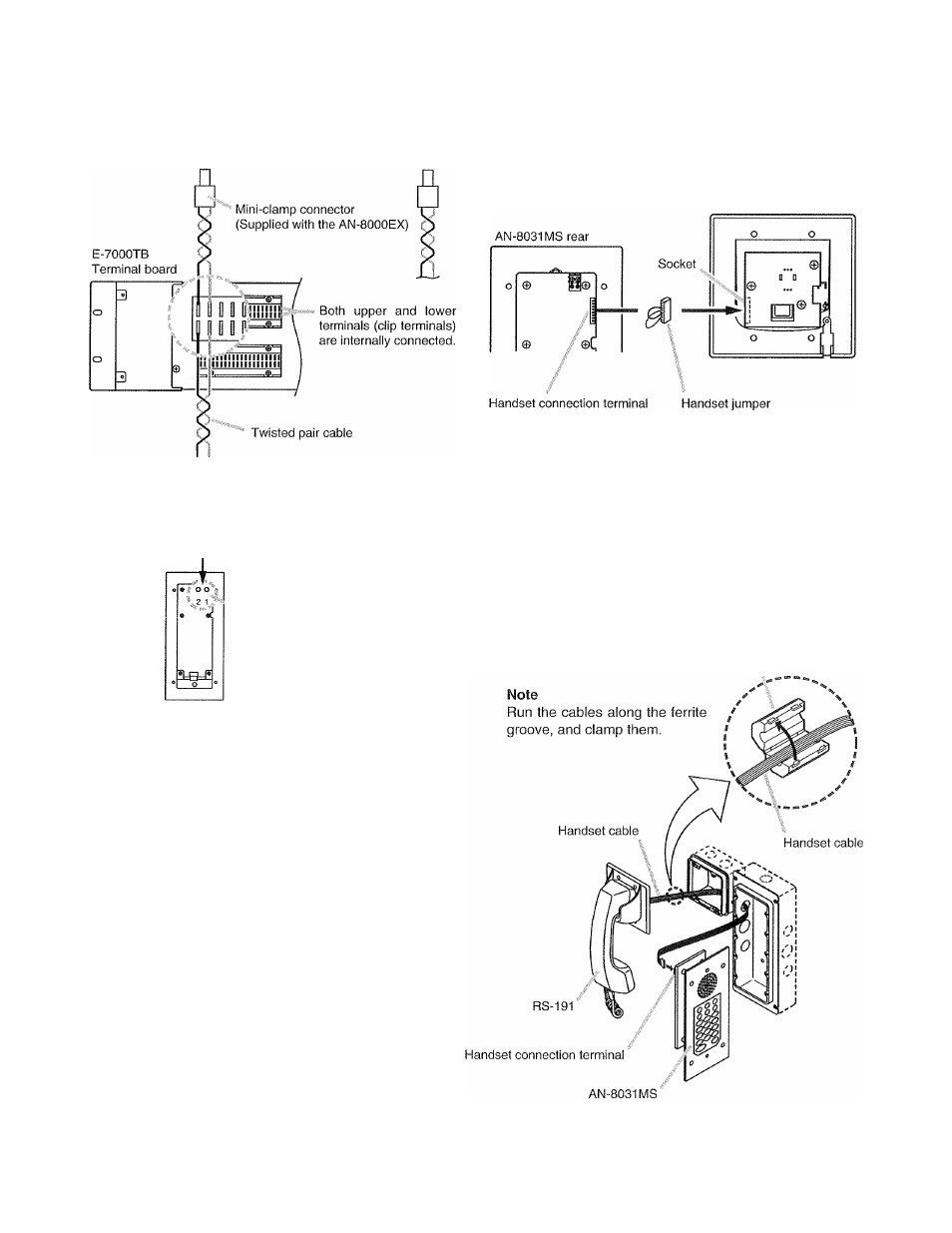

3.1. Connection to the Exchange
AN-8000EX Exchange
3. WIRING
16 lines
©a
M
Removable terminal plug (2P)
(accessory)
Line connection terminals
AN-8031 MS rear
To connect the cables from the AN-8000EX Exchange to
the AN-8031I\/IS, use the removable terminal plug (2P)
supplied with the AN-8031MS.
The cables have no polarity.
Connecting the RS-191 Option Handset to the AN-8031 MS
permits handset conversation.
Step 1. Remove the handset jumper attached to the AN-
8031MS's handset connection terminal, then
insert it to the socket on the RS-19Ts rear PC
board.
RS-191 rear
3.2. Connection to RS-191
Note
Though the socket on the PC board is faced inside, you
can insert the handset jumper into the socket from the
side.
Step 2. Install the ferrite clamp (supplied with the AN-
8031 MS) onto the RS-191's handset cables.
Then, connect the cables to the AN-8031 MS's
handset connection terminal.
Ferrite clamp (accessory)
