MODELS 12197 & 12203 BOLENS® 6HP TILLER

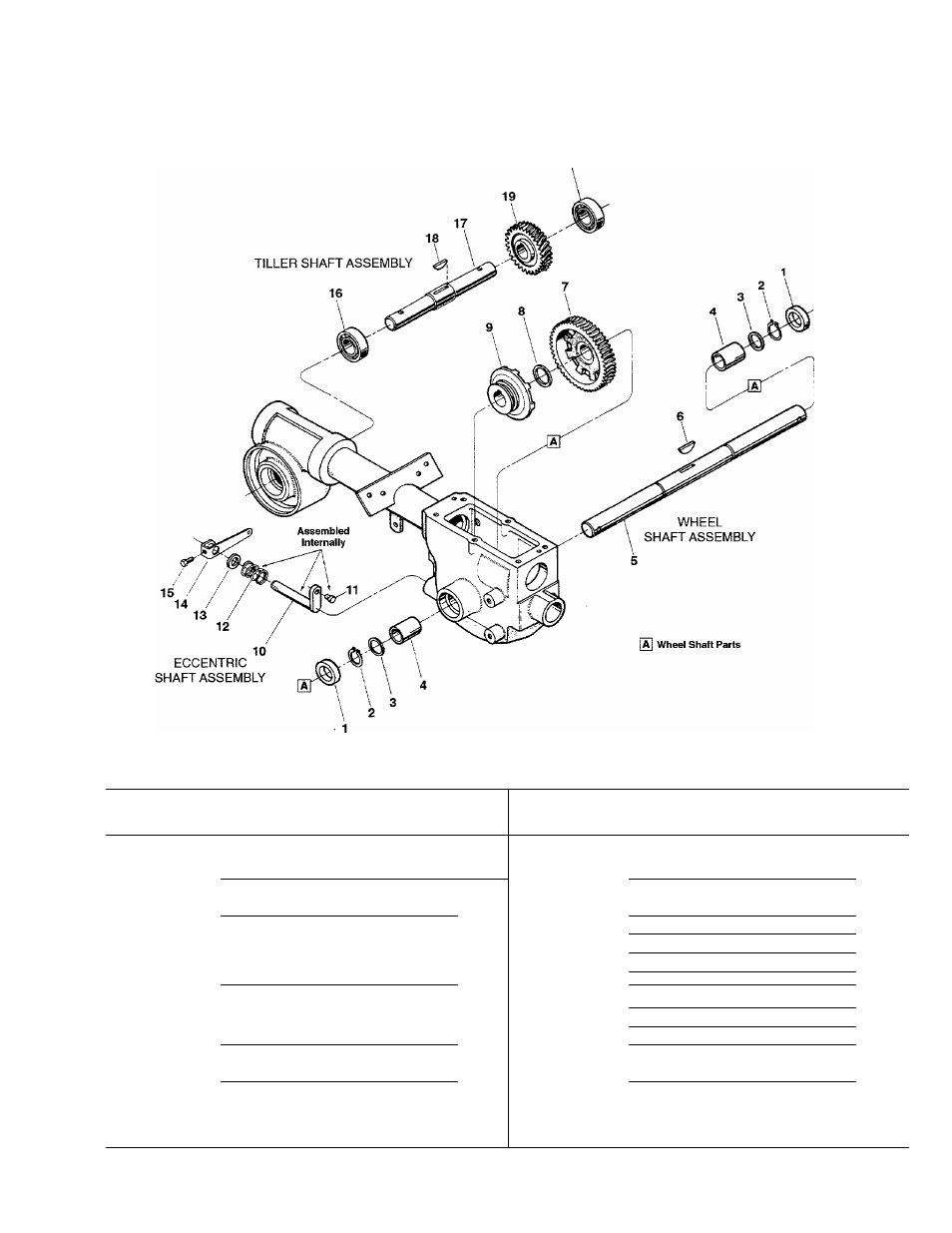

WHEEL SHAFT, ECCENTRIC SHAFT & TILLER SHAFT ASSEMBLIES
16
WHEEL SHAFT, ECCENTRIC SHAFT & TILLER SHAFT ASSEMBLIES
REF
No. PART
No. DESCRIPTION QTY.
REF
No. PART
No. DESCRIPTION QTY.
1 9621 Oii Seal-left and right sides...... 2 9 20712 Clutch-wheei drive, cast iron... 1
2 9511 Ring-retaining, heavy-duty, external 2 10 20879 Eccentric Shaft-wheel clutch
3 1166-1 Shim-1-1/64I.D., .062 thick....... A/R shifting.................................. 1
— 1166-2 Shim-as above, but .030 thick.... A/R 11 1442 Pin-eccentric shaft................... 1
— 1166-3 Shim-as above, but .015 thick.... A/R 12 9055 Spring....................................... 1
— 1166-4 Shim-as above, but .010 thick.... A/R 13 9622 Oil Seal-eccentric shaft............ 1
4 1086 Bushing..................................... 2 14 20757 Lever-eccentric shaft............... 1
5 2494 Wheel Shaft (axle)-incl. Ref. l\lo. 6 1 15 11000804 Screw-hex hd., 1/4-20 x 1/2*.... 1
6 9373 Key-hi-pro (1/4 X1-5/16), clutch 16 97074 Ball Bearing-for tiller shaft....... 2
to wheel shaft........................ 1 17 20896 Tiller Shaft-incl. Ref. No. 18..... 1
7 20914 Gear-wheel drive (worm gear). 18 1104 Key-woodruff, 1/4 x 1-1/4,
cast iron................................. 1 for tiller shaft/worm gear....... 1
8 9935 Shim-between key and gear 19 20913 Worm Gear-bronze, tiller drive... 1
(1.016I.D.X1.468 0.D.X.062
thick)...................................... 1
Specify GRADE 5 if ordering part locally. A/R - As Required
