BOLENS® 6HP TILLER MODELS 12197 & 12203

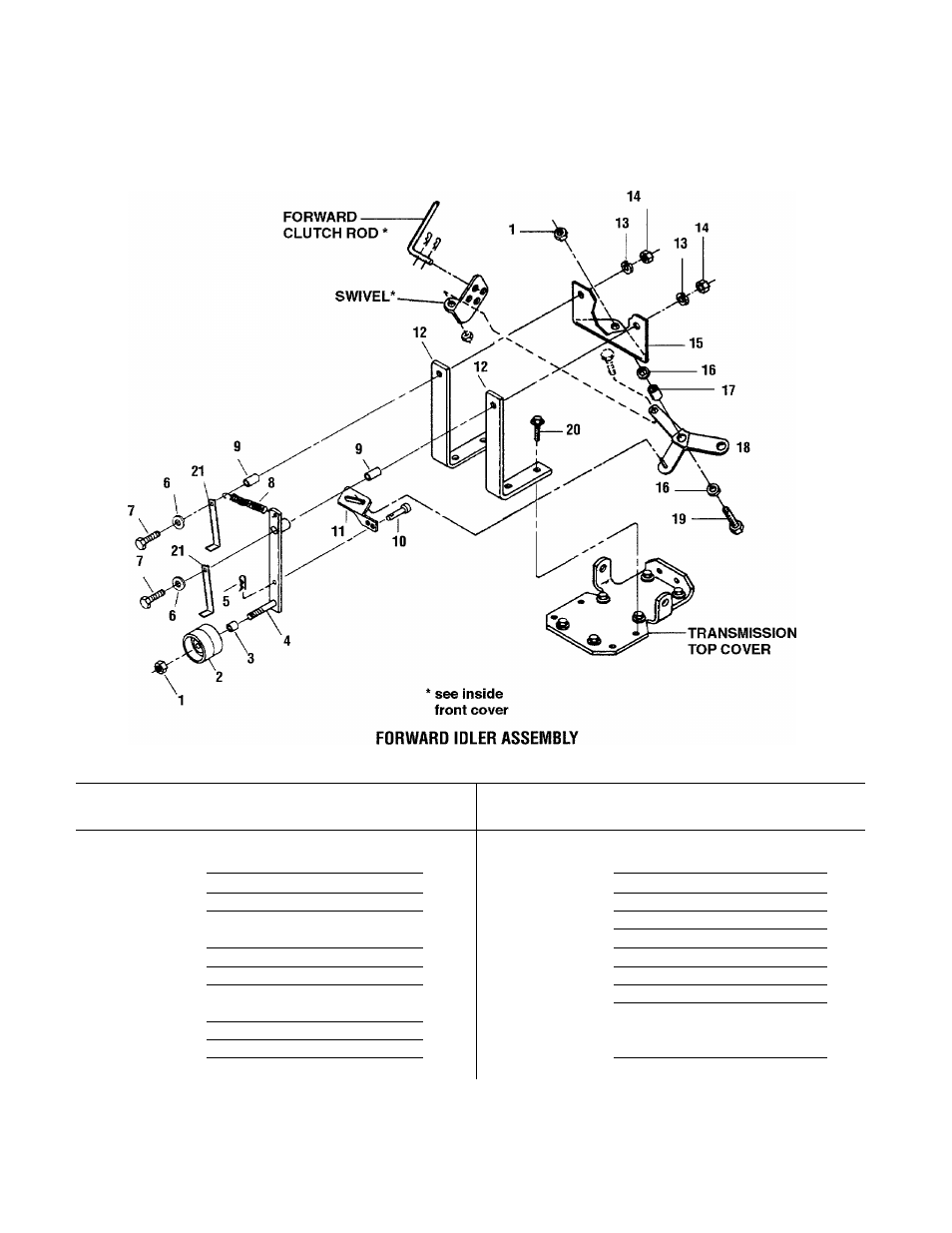

FORWARD IDLER ASSEMBLY
REF
No. PART
No. DESCRIPTION QTY.
REF
No. PART
No. DESCRIPTION QTY
1 1110108 Locknut-hex, 3/8-16.................. 2 11 20517-01 Forward Link............................ . 1
2 9090 Pulley-idler, forward tiller.......... 1 12 1916194001 Mounting Bar............................ . 2
3 20532 Spacer....................................... 1 13 1100242 Lockwasher-5/16...................... . 2
4 1916192001 Idler Arm-left, forward tiller 14 1186230 I\lut-hex, 5/16-18...................... . 2
direction................................. 1 15 1916195001 Shifting Base............................ . 1
5 9338 Hairpin Cotter............................ 1 16 20553 Spacer-Bushing........................ . 2
6 20545 Washer-plain, 5/16.................... 1 17 20532 Bushing-bellcrank.................... 1
7 1111607 Screw-hex hd., 5/16-18 x 2-1/4*. 2 18 1916196001 Bellcrank.................................. 1
8 1916727 Spring........................................ 1 19 1100043 Screw-hex hd., 3/8-16x1-1/4*.. 1
9 9479 Pivot Bushing............................ 2 20 1186331 Screw-flanged hex hd..
10 9340 Pin............................................. 1 5/16-18x1.............................. 1
21 1917149001 Belt Guide-forward belt............ . 2
Specify GRADE 5 if ordering part locally.
