8HP MODEL TILLER MODEL 12206

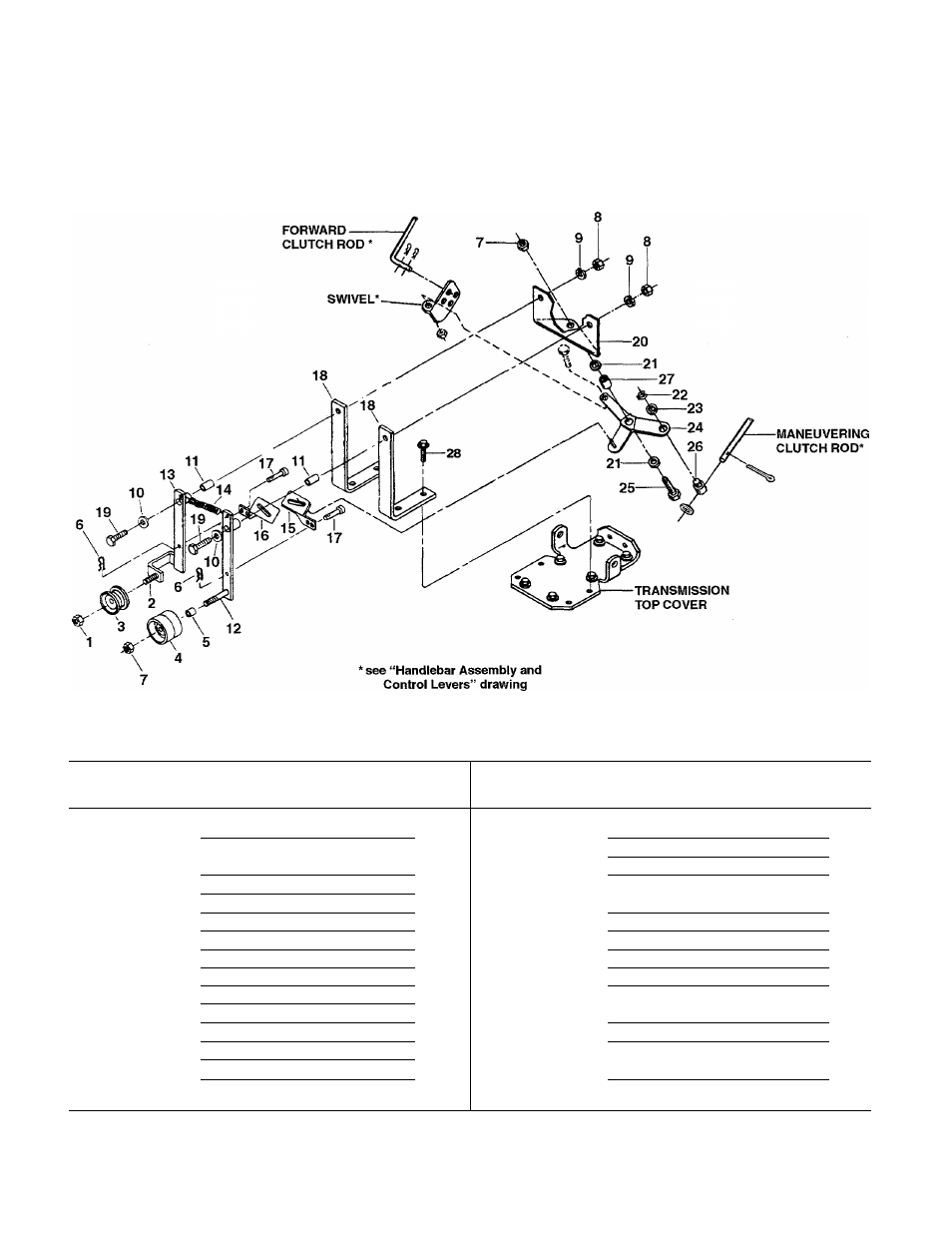

FORWARD/REVERSE IDLER ASSEMBLY
REF
No. PART
No. DESCRIPTION QTY.
REF
No. PART
No. DESCRIPTION QTY.
1 1185506 Locknut-hex, 3/8-16................... 1 16 20517-02 Reverse Link............................... 1
2 1110043 Screw-hex hd, 3/8-16 x 1-1/4**.. 1 17 9340 Pin................................................ 2
3 1909266 Pulley-idler, reverse.................. 1 18 1916194001 Mounting Bar.............................. 2
4 9193 Pulley-idler, forward.................. . 1 19 1111607 Screw-hex hd., 5/16-18x2-1/4** 2
5 1113-1 Spacer......................................... 1 20 1916195001 Shifting Base................... ........... 1
6 9338 Hairpin Cotter............................ . 2 21 20553 Spacer-Bushing.......................... 2
7 1110108 Locknut-hex, 3/8-16................... . 2 22 9532 Klip Ring...................................... 1
8 1186230 Nut-hex, 5/16-18......................... . 2 23 20546 Washer-pivot............................... 1
9 1100242 Lockwasher-5/16....................... . 2 24 1916196001 Bellcrank..................................... 1
10 20545 Washer-plain, 5/16..................... . 2 25 1100043 Screw-hex hd., 3/8-16x1-1/4**.. 1
11 9479 Pivot Bushing............................ . 2 26 1916897 Pivot-for Reverse Clutch lever.. 1
12 1916192001 Idler Arm-left, forward............... . 1 27 20532 Bushing-bellcrank...................... 1
13 1909682001 Idler Arm-right, reverse............ . 1 28 1186331 Screw-flanged hex hd..
14 1492 Spring........................................ . 1 5/16-18x1*................................ 4
15 20517-01 Forward Link.............................. . 1
Specify GRADE 5 if ordering part locally.
