8HP MODEL TILLER MODEL 12206

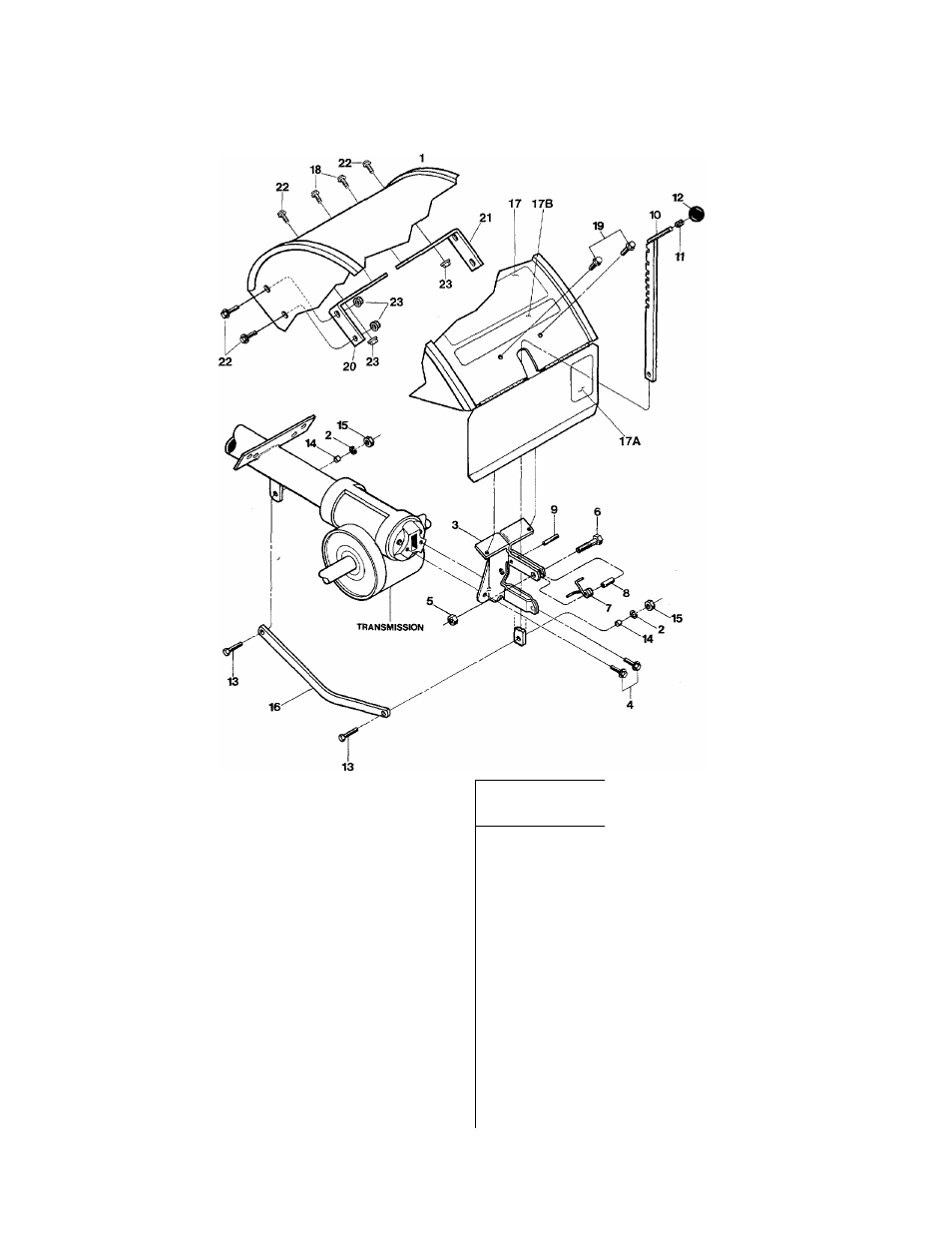

HOOD, BRACKET AND DEPTH REGULATOR
REF
No. PART
No. DESCRIPTION QTY.
1 1917241 Tine Hood. (Incl. hinged flap and
Ref. Nos. 17.17A&17B)............. 1
2 1100243 Lockwasher-3/8.............................. 2
3 1916184001 Bracket-hood & depth regulator... 1
4 90038 Screw-flanged hex hd.,
5/16-18x5/8*............................... 2
5 9811 Locknut-hex, 1/4-20....................... 1
6 1100069 Screw-hex hd., 1/4-20x1*.............. 1
7 9384 Spring-depth regulator plunger.... 1
8 9438 Spacer............................................ 1
9 9308 Roll Pin-1/4x1 (spiral).................... 1
10 1916186001 Bar Assembly-depth adjustment.. 1
11 9120 Ring-retaining, tolerance ring.... 1
12 9119 Knob-depth regulator (Incl. Ref.
No. 11)........................................ 1
* Specify GRADE 5 if ordering part locally.
REF
No. PART
No.
13 1100043
14 1113-1
15 1186231
16 1916185001
17 1916805
17A 1911361
17B 1917199
18 1766984
19 9552
20 1916700001
21 1916701001
22 1186328
23 1186391
DESCRIPTION QTY.
Screw-hex hd, 3/8-16 x 1 -1/4*... 2
Bushing-spacer, drag bar.......... 2
Nut-hex, 3/8-16.............................. 2
Drag Bar-depth regulator........... 1
Decal-tiller operating instructions 1
Decal-Warning.............................. 1
Decal-Logo.................................... 1
Screw-hex hd, self-tapping,
5/16-18x1/2*................................ 2
Screw-flanged hex hd, self-tapping,
1/4-20x1/2*.................................. 2
Bracket-support, left..................... 2
Bracket-support, right.................. 1
Bolt-hex hd., 5/16-18x5/8.............. 6
Nut-hex, 5/16-18........................... 6
