8HP MODEL TILLER

MODEL 12206

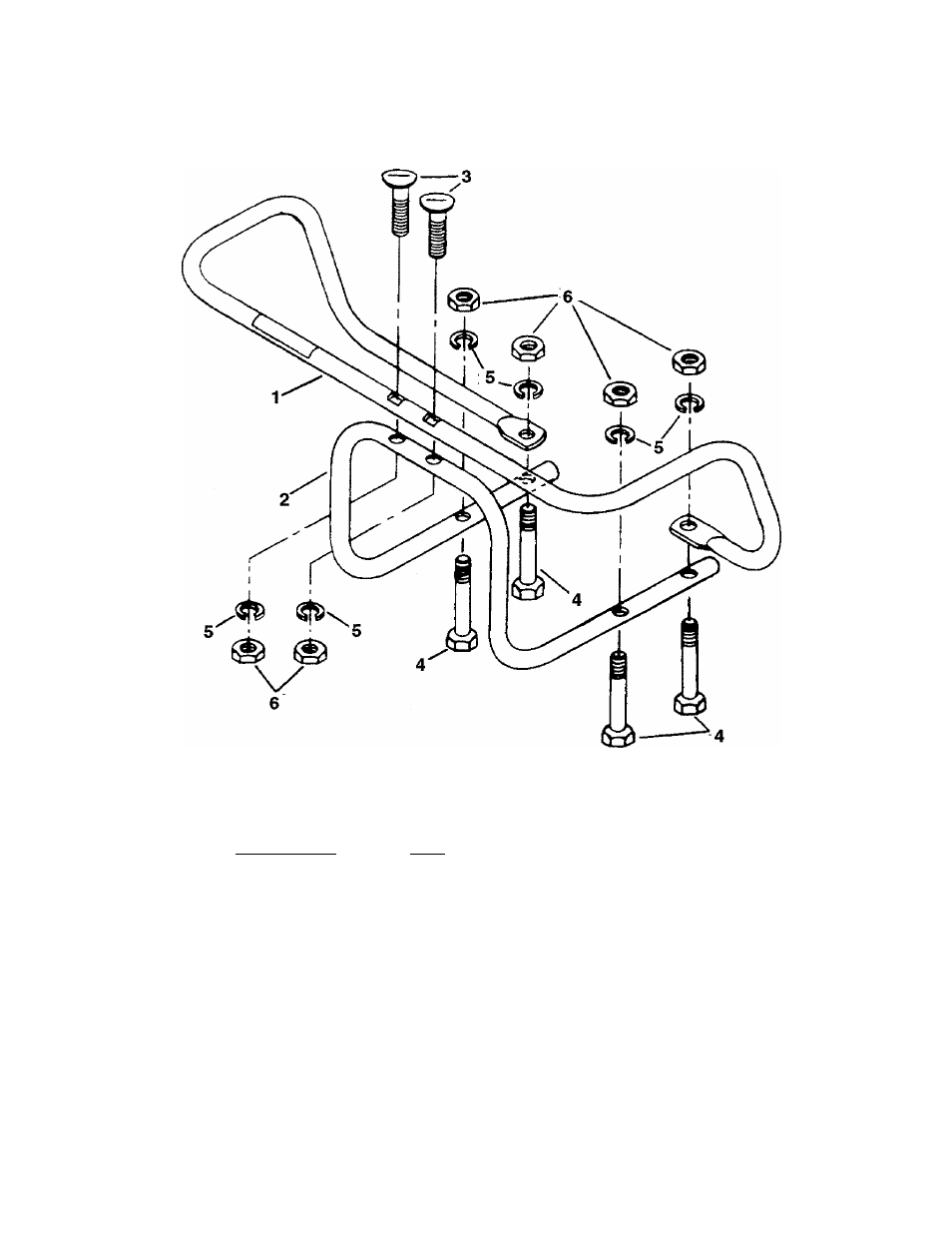

BUMPER ASSEMBLY

REF
No.

PART

No.

1916714001
1904758001
1731025

1111608

1100242

DESCRIPTION_________QTY.

Bumper-top section....................... 1
Bumper-bottom section...........

Bolt-curved head, 5/16-18 x 2

(special bolt); also see #1915811
hardware kit................................. 2

Bolt-hex hd„ 5/16-18x2-1/2*,

not avail, separately (order

#1915811 hardware kit).........

Lockwasher-5/16, not avail,

separately (order #1915811
hardware kit)................................ 6

REF
No.

PART

No.

1186230

1915811

DESCRIPTION

QTY.

Nut-hex, 5/16-18, not avail,
separately (order #1915811

hardware kit).......................... 6

Hardware Kit: two #1731025

curved head bolts; four #1111608
hex hd. bolts; six #1100242 lock-
washers; six #1186230 hex nuts 1
