Section II
Installation
A. MOVTNG THE DRYER INTO POSITION/REASSEMBLY

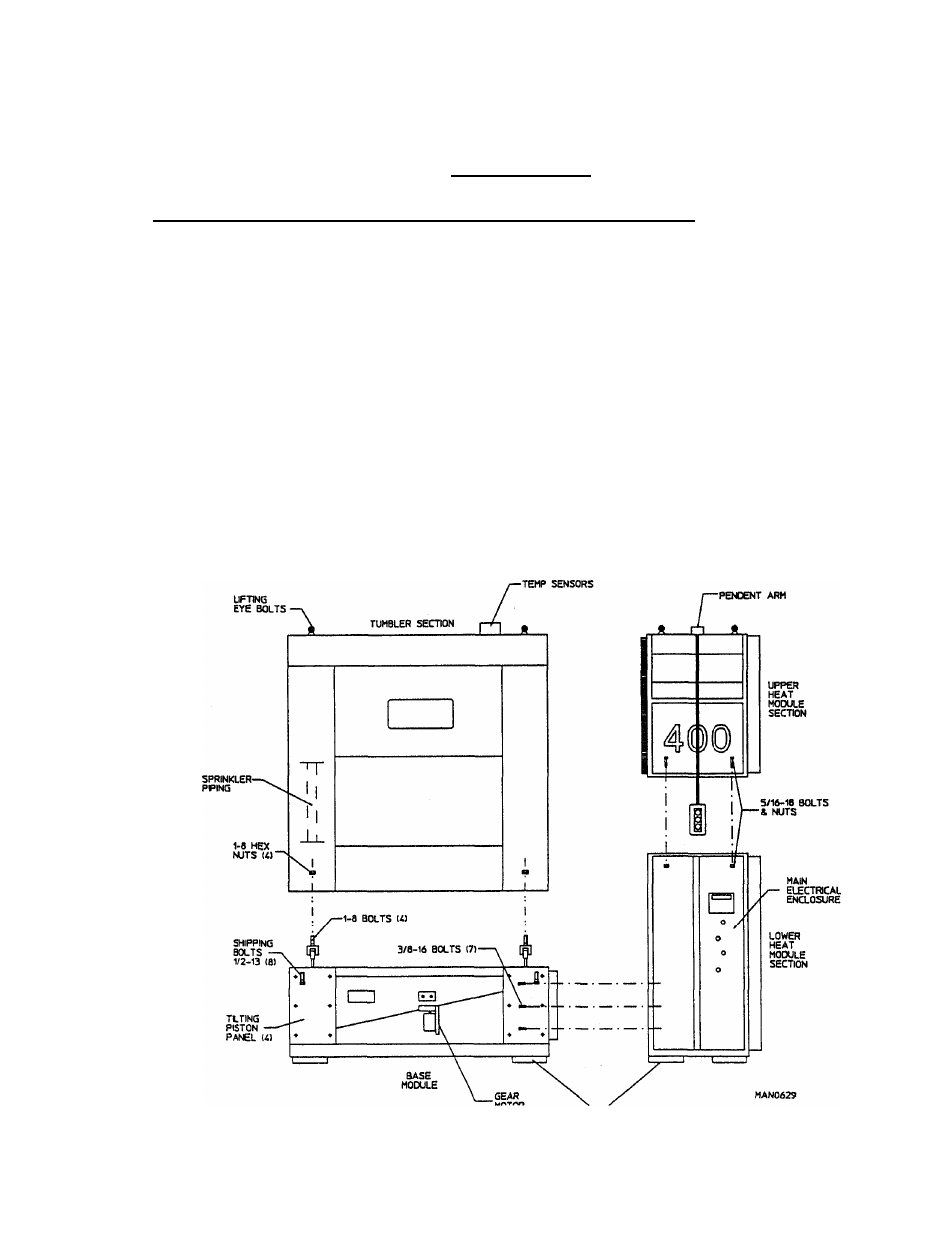

The AD-400 dryer is shipped brokert down into either two, three, or four pieces.
1. Two-Piece Shipment
In this method of shipment, the tumbler section and base module are shipped as one piece, and the
burner section comprises the second piece. Move both pieces into position by lifting them with cables
through the eyebolts on top. These pieces may also be moved by lifting from underneath with a fork
truck. The tumbler section/base module weighs about 6,600 poimds, and the Burner Section weighs
about 3,200 pxDunds. Put the sections together and match the seven (7) clearance holes in the base module
right side channels with the seven (7) 3/8-16 tapped holes in the left side of the burner module. Use the
3/8-16 bolts provided with the dryer to bolt the two sections together. Remove the eight (8) 1/2-13
shipping bolts that fasten the tumbler section to the base. Remove the four (4) tilting piston panels to gain
access to these shipping bolts.
