Pendant Arm and Light/Siren Cable Plugs
Reconnect the pendant arm cable plug, the light/siren cable plug. These are located on top of the
bumer/heater section of the dryer.

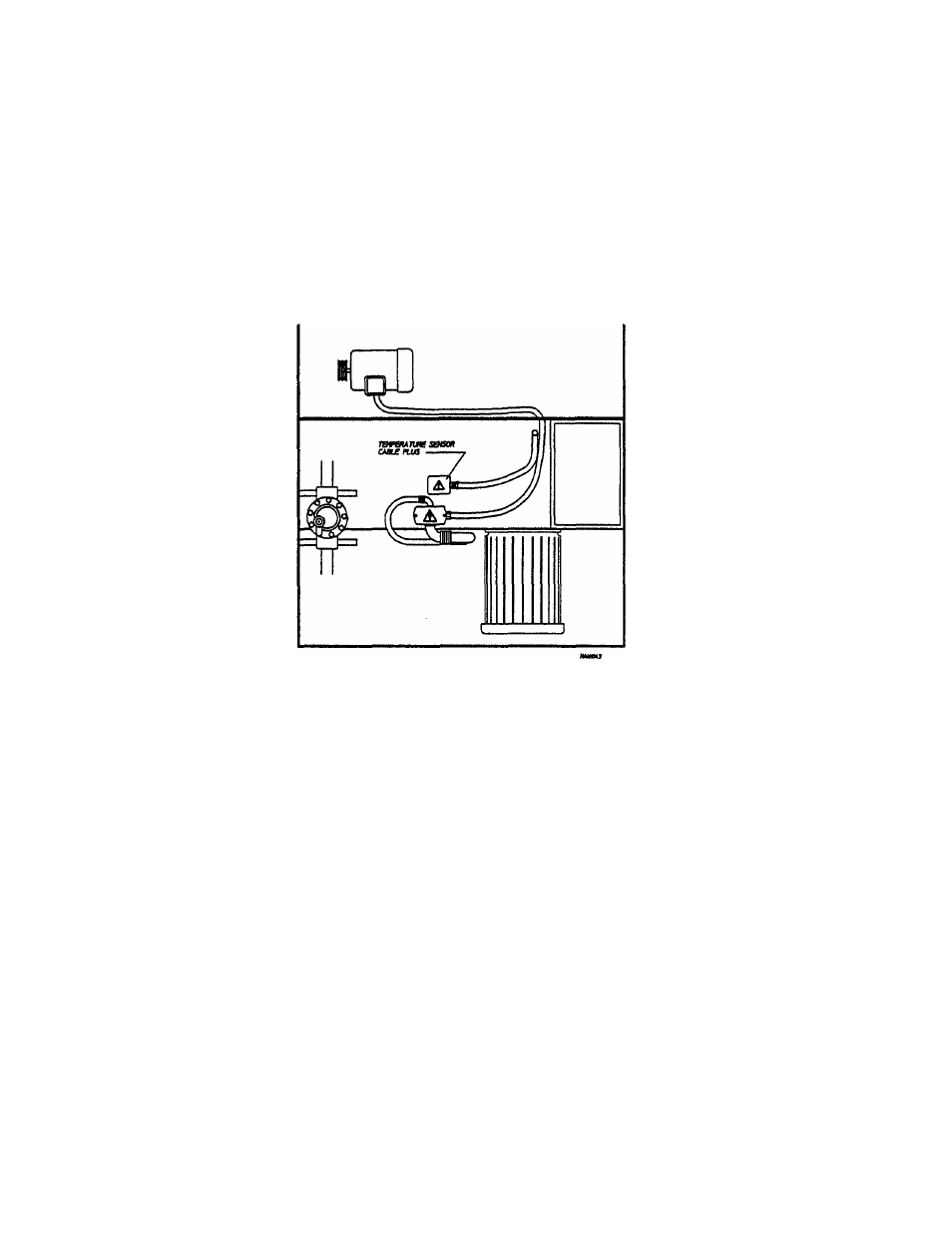

Temperature Sensor Cable Plug
This cable is shipped along side the right hand side lumber drive motor. Locate and route this cable into
the bumer/heater section and reconnect onto its mating receptacle and latch together, (see drawing
below)
V... )
If the tumbler section was shipped apart from the base module, then the basket junction box cable
plug will be shipped with the base near the lint fan motor. Pull this plug and cable up through the
large hole in the floor of the tumbler section and reconnect the plug into the basket junction box. This
cable will be pulled up whenever the tumbler tilts, so be sure it has enough slack to it.
If the burner section was shipped in two (2) pieces, then the burner fan motor conduit must be
reconnected to the burner fan motor. The spark plug and flame rod cables must be plugged back into
the spark plug and flame rod on the burner box. Also, reconnect the front panel conduit plug located
behind the upper burner section front panel.
