These two (2) large plugs are shipped with the base module. They must be fed through the large hole in
the rear of the lower burner section and plugged into the mating plugs mounted on the floor of the
bumer/heater section.
• Tumbler and Base Input Signal Plugs
• Lint Fan Motor Conduit
This conduit is shipped in the bottom of the bumer/heater section and must be fed through the rear of
the base module and reconnected into the lint fan motor's junction box. Reconnect the conduit wire
marked LI to the motor wire marked LI. Do the same for L2 and L3. Also reconnect the ground wire.
• Left Side Tumbler Drive Motor Conduit
This conduit is shipped in the bottom of the bumer/heater section and must be fed through the rear of
the base and reconnected to the left side tumbler drive motor junction box. sitting behind the motor.
Reconnect the conduit red wire to the junction box red wire. Do the same for orange and blue. Also
reconnect the ground wire.
• Right Side Tumbler Drive Motor Conduit
This conduit is shipped along side the right side tumbler drive motor. Locate and route this conduit into
the bumer/heater section and reconnect into its junction box located on the bumer/heater section blower

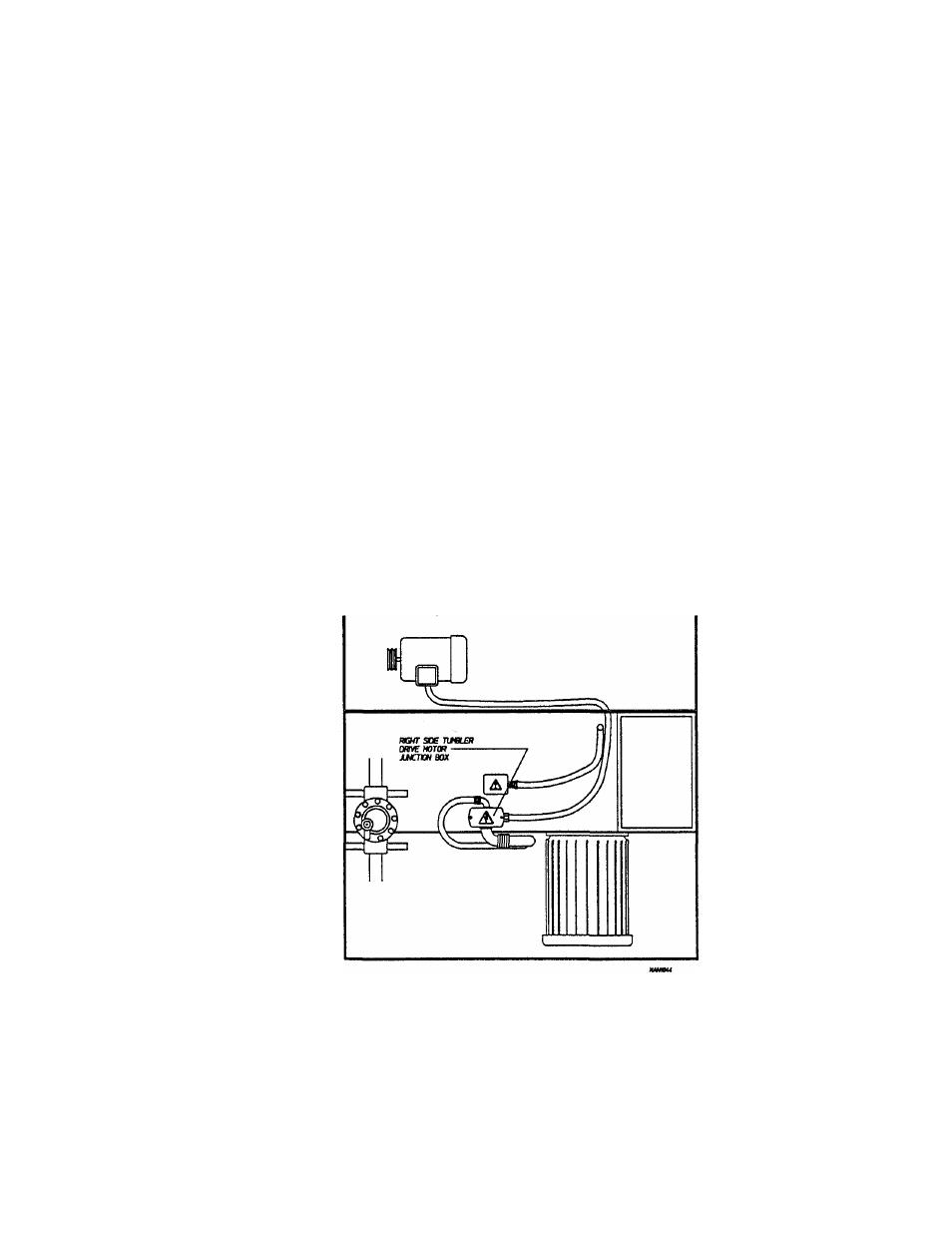

motor housing, (see drawing below) Reconnect the conduit's wires to the junction box wires, matching
the colors. Also, reconnect die ground.
• Lint Screen Motor Conduit
This conduit is shipped inside the main electrical enclosure in the lower bumer/heater section. Feed this
conduit through the bottom front of the base and reconnect it into the lint screen motor junction box.
This motor is single phase. Connect the conduit wire to the motor wires, matching the colors. Reconnect
the ground wire also.
