B. MAIN ATR BLOWFR/HEAT RECLAIMER SYSTEM
The fan which moves the exhaust air through the AD-400 dryer is an 18-inch diameter, backwardly
inclined, steel PLR wheel that is driven at 3,450 rpm by a 25 hp motor. This fan moves a maximum of
9,000 cfm of air through the dryer.
The dryer is equipped with a pneumatically operated heat reclaimer damper, which when opened, will
recirculate approximately 50 percent of the dryer's exhaust air.

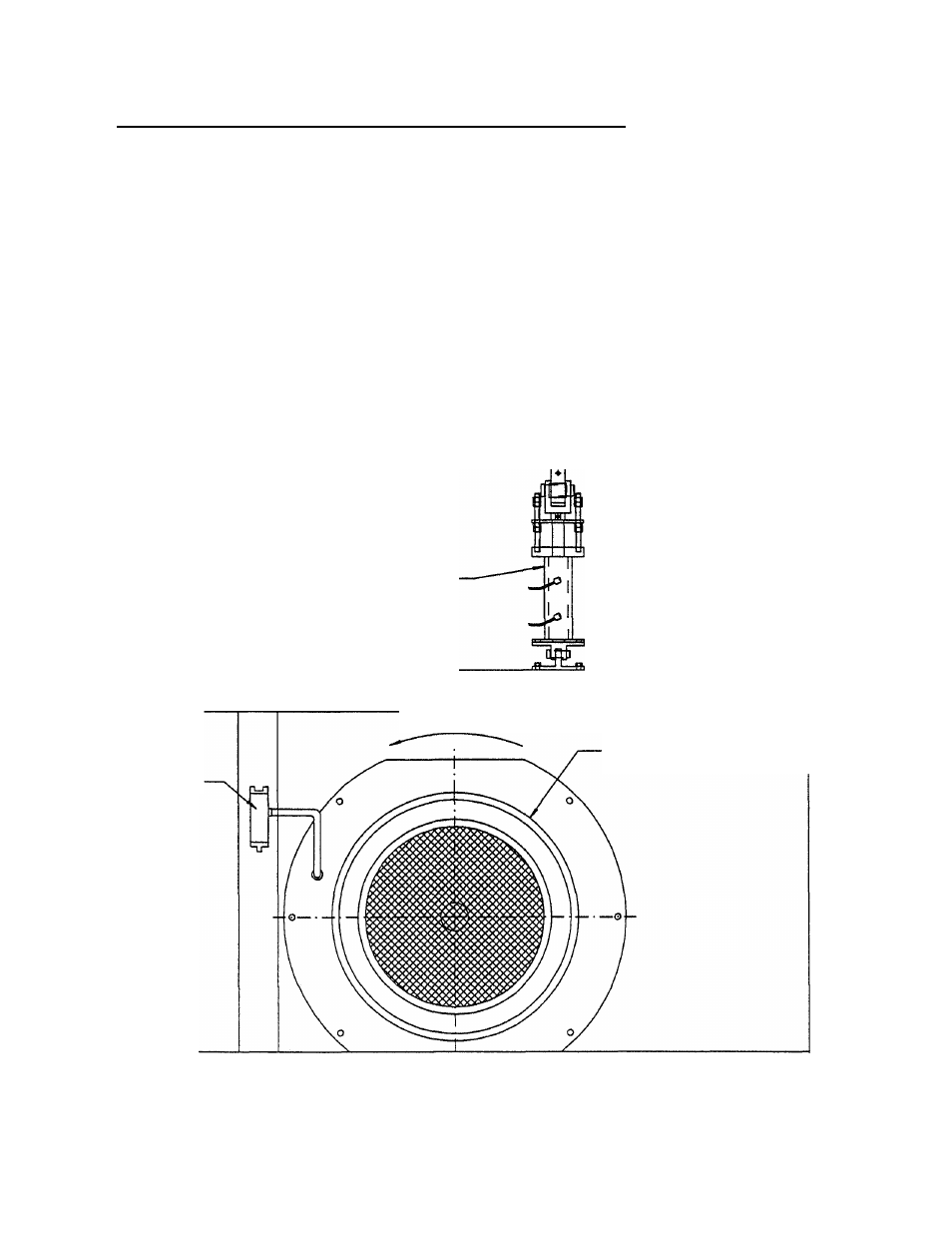

HEAT RECLAIMER
DAMPER
SWITCH ACTIVATOR
HEAT
RECLAIMER
PISTON
MAN0722
X
HEAT RECLAIMER DAMPER
(LOCATED INSIDE DUCT)
FAN ROTATION
AIR JET
SOLENOID
25 Hp MAIN
BLOWER MOTOR
28
