21020690 B 6500 Disk Array User’s Guide
Chapter 4 Maintenance, Troubleshooting & Hardware Replacement
Page 4 - 20 Power Switch Removal
Power Switch
Removal 1. Perform top cover removal procedure as described previously.
2. Disconnect power switch from power supply as follows:
Note orientation of switch: the “l” marker is up; the “O” marker is
down.
Note wire positions on switch, then remove the four wires from their
connectors on the power switch.
3. Using fingers and/or a flat-blade screwdriver, compress the plastic lock
tabs that secure the switch to the enclosure wall and push the switch
through the back of the enclosure.
Replacement Reverse the steps above. Use the figure below to make correct connections to
the power switch terminals.

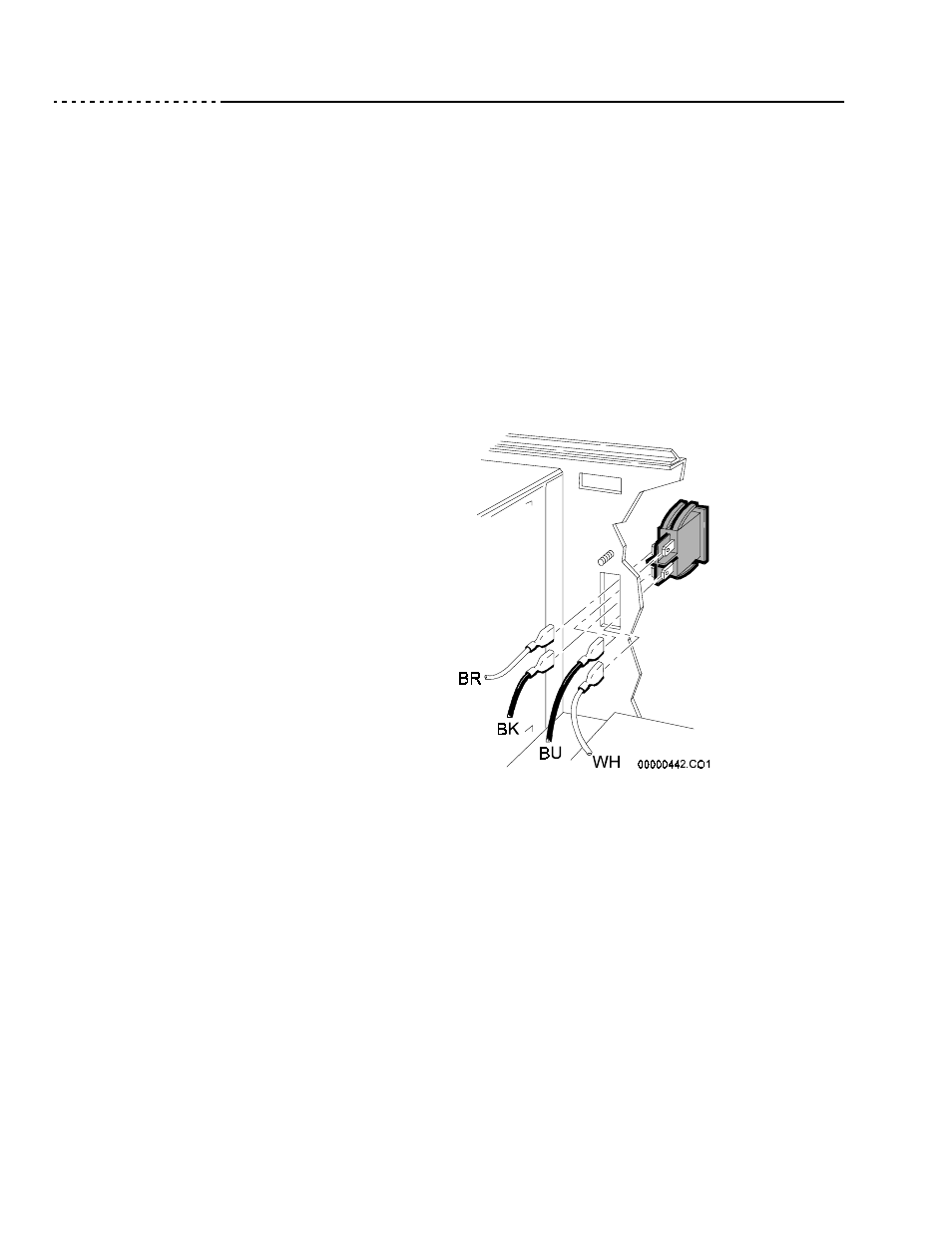

Figure 24 Power Switch Removal/Replacement
