6500 Disk Array User’s Guide 21020690 B
Chapter 4 Maintenance, Troubleshooting & Hardware Replacement
Failure Detection and Troubleshoot-ing Guidelines Page 4 - 9
Drive Test
Failures
When the Built-In Self-Test (BIST) described previously has finished, a
firmware-based drive test is executed that tests the integrity and functionality
of each drive channel, including the capacity to rebuild and generate parity.

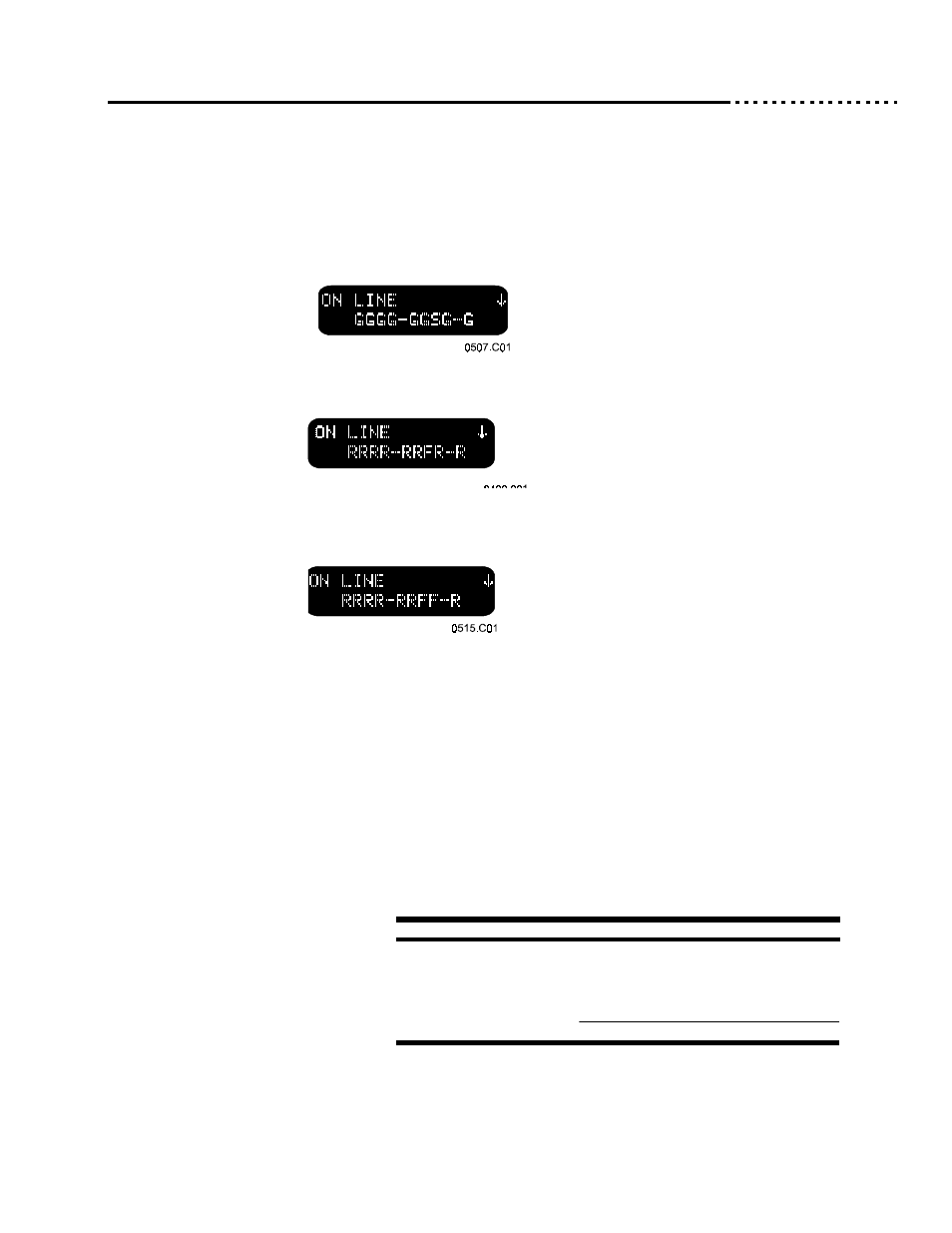

If a drive fails when tested, the drive is first shown on the display as
6 (spinning
up); other drives that pass the drive test are shown as
* (good). In the following
example, drive 3 is shown failing the drive test.
When the drive test times out, drives that pass the drive test are shown as
5 and
the failed drive is shown as
) (drive 3 in the example).
Note If multiple drives fail, the array will display a message similar to
this message:
Disk Drive
Failures
The array will continue to function if one disk drive fails.
Caution When a disk fails, it should be replaced and a rebuild should be
performed as soon as possible. See disk replacement and rebuild
instructions later in this chapter.
Indicators
• Display/operation panel shows an
) as status for the drive that has failed
• Audible alarm sounds (if enabled)
Handling
If you see this Check or replace this
21 /,1(
555555)55
Meaning: Drive 3 in the array
has failed
The order of the drives in the status display is:
9876_5432_1
with 1 being the rightmost drive in the unit.
The LED for the failed drive will be out.
Replace failed drive and rebuild.
Table 5: Disk Failures
