GENERÄL
INFORMATION
Generac 1M-72LP Industrial Mobile Generator
GENERATOR APPLICABILITY
These generators have been designed and manufactured for
supplying electrical power for recreational vehicles. You should
not modify the generator or use it for any application other than
for what it was designed. If there are any questions pertain­
ing to its application, write or call the factory. Do not use the
unit until you have been advised by a competent authority.
DANGER: FOR FIRE SAFETY, THE GENERATOR
MUST HAVE BEEN PROPERLY INSTALLED IN
COfyiPLIANCE WITH INDUSTRY STANDARDS. THE
GENERATOR ALSO MUST HAVE BEEN INSTALLED
IN STRICT COMPLIANCE WITH THE MANUFAC­
TURER’S DETAILED INSTALLATION
INSTRUCTIONS. AFTER INSTALLATION, DO
NOTHING THAT MIGHT RENDER THE UNIT IN
NON-COMPLIANCE WITH SUCH CODES, STAN­
DARDS AND INSTRUCTIONS.
A
You can use this generator to supply electrical power for oper­
ating 120/240 volts, single phase, 60 Hertz, AC electrical
loads requiring the following:
Industrial
Generator
Pow er
(w attage)
Am ps at
120 Volts
Am ps at
240 Volts
IM-72LP 7200 60 30
CAUTION: Do not overload the generator. Some
installations may require that electrical loads be
alternated to avoid overloading. Applying exces­
sively high electrical loads may damage the
generator and may shorten its life. Add up the
rated watts of all electrical lighting, appliance, tool
and motor loads the generator will power at one
time. This total should not be greater than the
wattage capacity of the generator, if an electrical
device nameplate gives only volts and amps, multi­
ply volts times amps to obtain watts (volts x amps
= watts). Some electric motors require more watts
of power (or amps of current) for starting than for
continuous operation.
INSTALLATION
This Owner’s Manual has been prepared under the assump­
tion that a competent, qualified technician installed the
generator into an industrial vehicle. We also assume the
installer complied with all applicable codes, standards and reg­
ulations pertaining to installation.
Owners/Operators should make sure nothing is done during
installation that might render the unit unsafe or in noncompli­
ance with applicable codes, standards and instructions. They
should be sure the unit has been installed to allow adequate
ventilation for cooling and exhaust air.
SAFETY
Before using the generator set, carefully read GENERAL
SAFETY RULES inside the cover. Comply with these RULES
to prevent accidents and damage to equipment and/or prop­
erty. Generac suggests copying and posting the GENERAL
SAFETY RULES in potential hazard areas of the generator.
Safety should be stressed to all operators of this equipment.
GENERATOR AC CONNEQION
SYSTEM
This generator set is equipped with dual Stator AC power
windings. These two stator windings supply electrical power
to customer electrical loads by means of a dual 2-wire con­
nection system. Note, however, that neutral is grounded.
The generator may have been installed so that units power
120/240 volts AC loads (Figure 1); or you can wire them to
connect only 120 volts AC electrical loads (Figure 2). Be sure
to install jumper wire between the circuit breakers and remove
bar in ciricuit breaker set (Figure 2) when reconnecting for 120
volts.

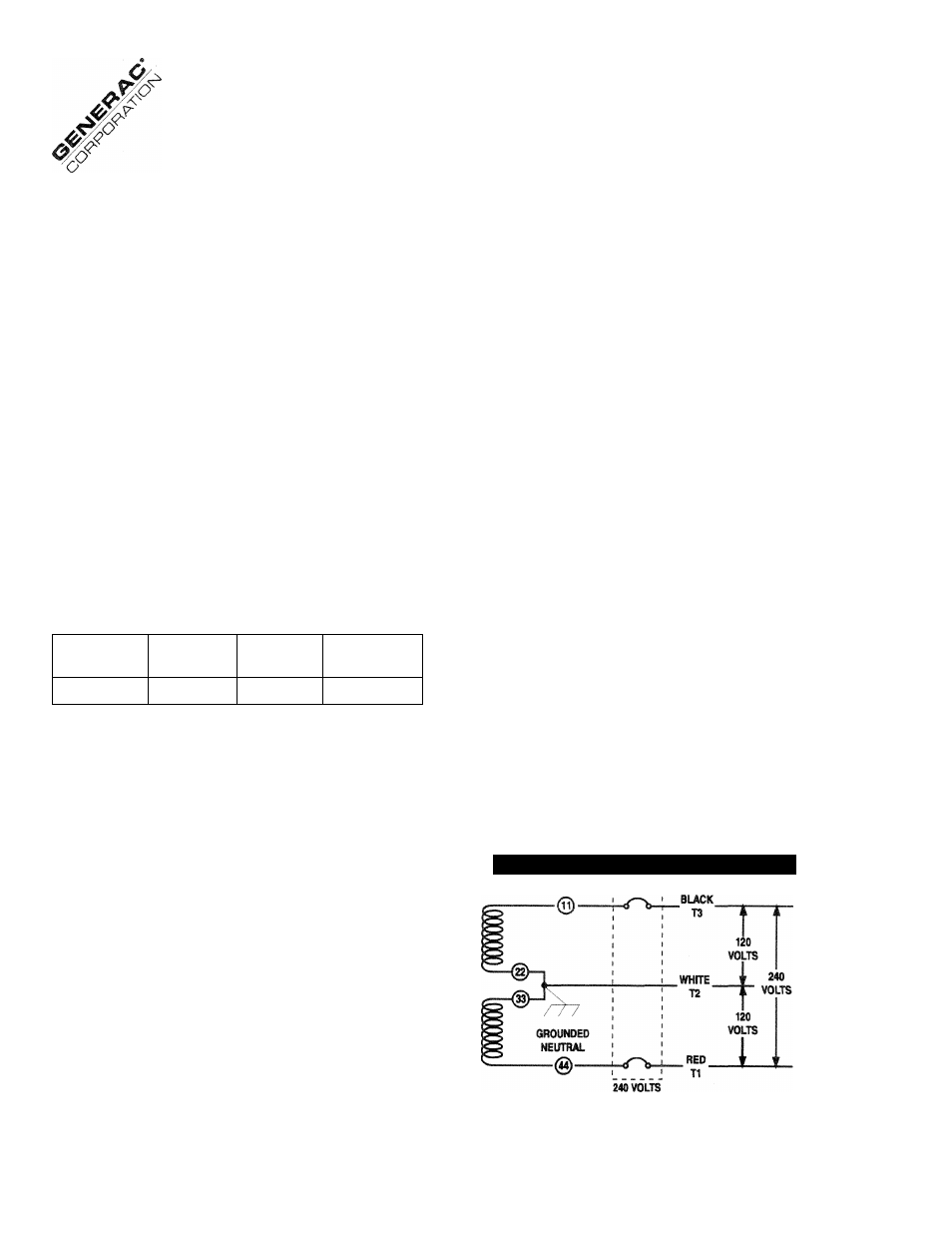

Figure 1 — Connections for 120/240 Volts
CIRCUrr BREAKER
I n d u s t r i a l M o b i l e G e n e r a t o r
6
