Generac NP-66LPG Recreational Vehicle Generator
i Drawing No. A4029

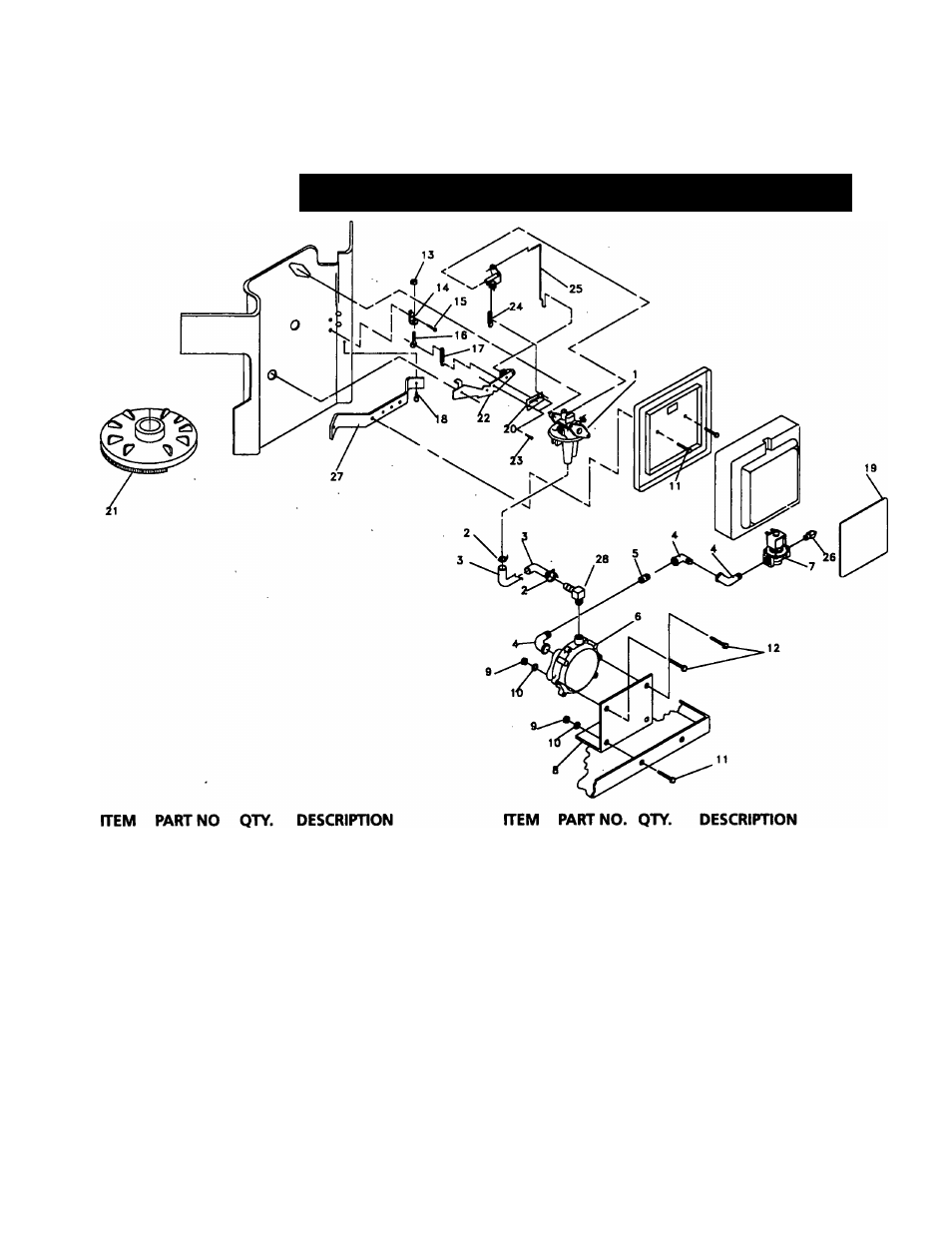

EXPLODED VIEW- CARBURETOR
1
A1662A
1
V-TWIN CARBURETOR
2
57822
2
HOSE CLAMP
3
74994
1
1/2” I.D.x10”.LONG HOSE
4
26307
3
STREET ELBOW
5
26915
1
3/4” PIPE SLEEVE
6
75211
1
GASEOUS FUEL
regulator
7
A2666
1
GASEOUS FUEL
solenoid
8
78864
1
REGULATOR MOUNTING
BRACKET
9
49813
4
M6 HEX NUT
10
22097
4
M6 LOCK WASHER
11
47411
2
M6-1.0X16MMHEXHD.CAPSCR.
12
38750
2
M6-1.0X30MMHEXHD.CAPSCR.
13
37398
1
HEX LOCK NUT'(NYLON)
14
74961
1 GOVERNOR ADJUSTER BRACKET
15
56893
5
#10-24x1/2” SCREW
16
47227
1
GOVERNOR ADJUSTER SCREW
R e c r e a t i o n a l V e
17
18:
19
20
21
22
23
24
25
+
+
26
27
28
74962C
66476
91351
75944
73130
70155
76242
70125
70108
28739
55162
81190
70103
61695
2
M6-1.0X12MM HEX SCREW
2
M6-1.0X12MM HEX SCREW
W/LOCKWASHER
1
AIR CLEANER DECAL
1
GOVERNOR SPRING BRACKET
1
FLYWHEEL ASSEMBLY
1
GOVERNOR LEVER
2
1/8” I.D.x 1/8” RIVET
1
ANTI-LASH SPRING
1
GOVERNOR-TO-CARBURETOR
ROD
4
4” LONG TIE WRAP
9cc
PIPE SEALANT
1
LP HOOK UP FITTING
1
AIR CLEANER SUPPORT BRACKET
1
BARBED 90 DEG. 3/8” X1/2”
+ NOT SHOWN
