C/^ Generac NP-66LPG Recreational Vehicle Generator
-V
Drawing No. 89403

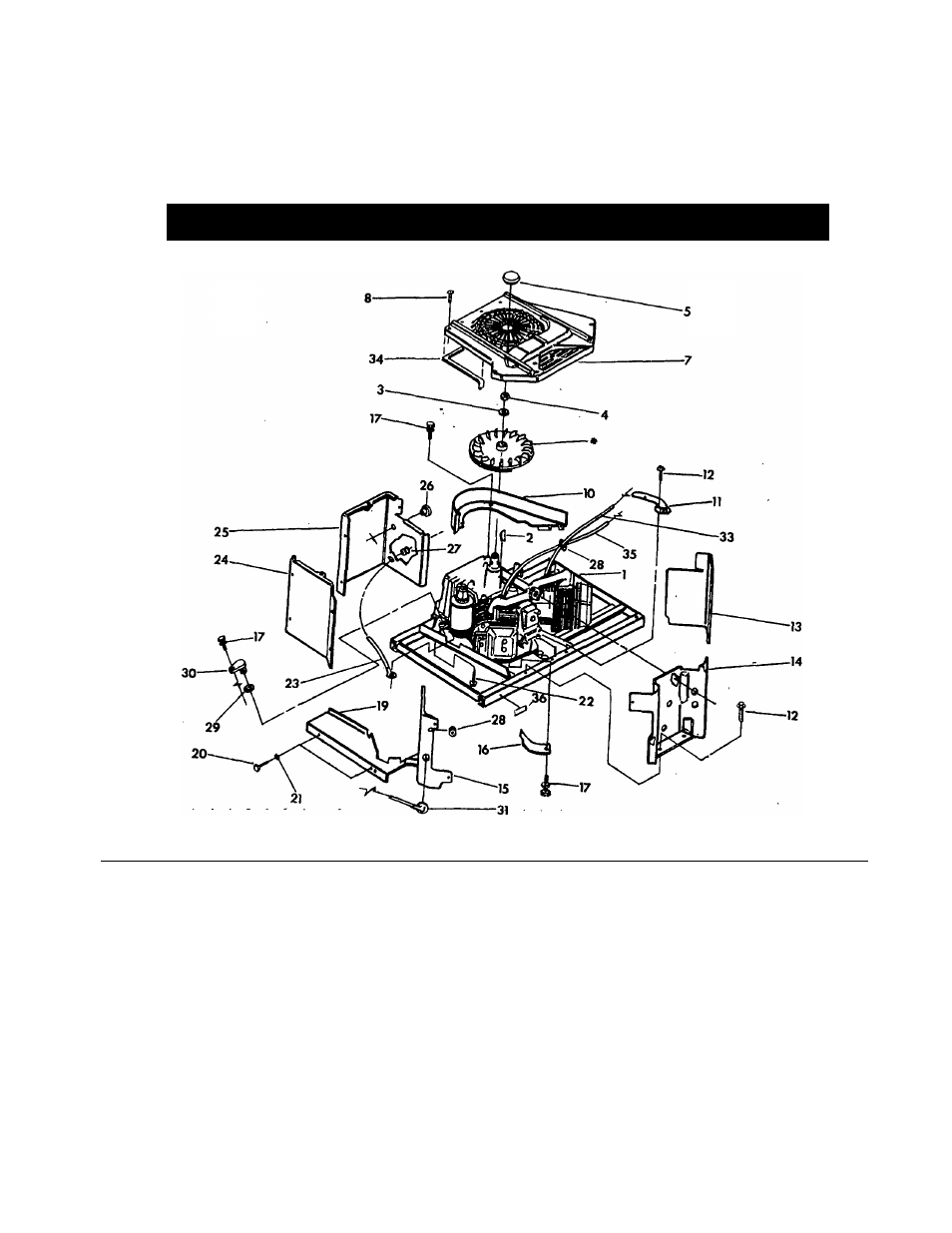

EXPLODED VIEW - ENGINE ENCLOSURE
TEM PART NO QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
1
_____ —
1 See Engine Exploded View 20 42907 2 M8-1.25 X 16mm Capscrew
2 99258 1 6 X 25 Woodruff Key 21 22129 2 M8 Lockwasher
3 67198N 1 Belleville Washer 22 75246 4 3/8’-16x 1-1/4'Screw
4 67890 1 M20-1,50HexNut 23 10-74260 1 No. 16 Wire Assembly
5 87865 1 Flywheel Access Plug 24 74900 1 Starter Cover
7 86313 1 Engine Housing Top 25 73186 , 1 . Crankcase Wrapper
8 56893 23 No. 10-24 X 3/8' Crimptite Screw 26 81108 1 Snap Bushing
10 87750 1 Flywheel Scroll 27 22717B. 1 Rubber Grommet
11 74916 ■ 1 No. 2 Base Cover 28 22717A 3 Rubber Grommet
12 74908 9 M5 X 10mm Taptite Screw 29 . 67866 1 0-ring
13 73190 1 No. 2 Cylinder Wrapper 30 77001 1 Oil Fill Plug
14 78858 1 Valley Cover 31 73132 2 Spark Plug Boot
15 78859 1 No. 1 Cylinder Wrapper 33 87858A 1 Ground Wire Assembly—#2 cyl.
16 74902 2 Wrapper A Barrel 34 29289 2 ft. Foam Tape
17 66476 5 M6-1.00 X 12mm Capscrew with 35 87858B 1 Ground Wire Assembly — #1 cyl.
19 73191 1
lock washer
No. 1 Base Cylinder Cover
R e c r e a t i o n a l
.36 50277
V e h i c l e G e n e r a t o r
1 Oil Drain Decal
22
