ASSEMBLY
;TOASSEMBLEYOUBTSLLERYDUWILLNEED:
(1) Utility knife
(1) Wire cutter
(1) Screwdriver
(1) Tire pressure gauge
(1) Pair of pliers
(1) 9/16" wrench (or 9/16" socket, ratchet, and extension;
or adjustable wrench)
(1) 7/16“ wrench (or 7/16” socket, ratchet, and extension;
or adjustable wrench)

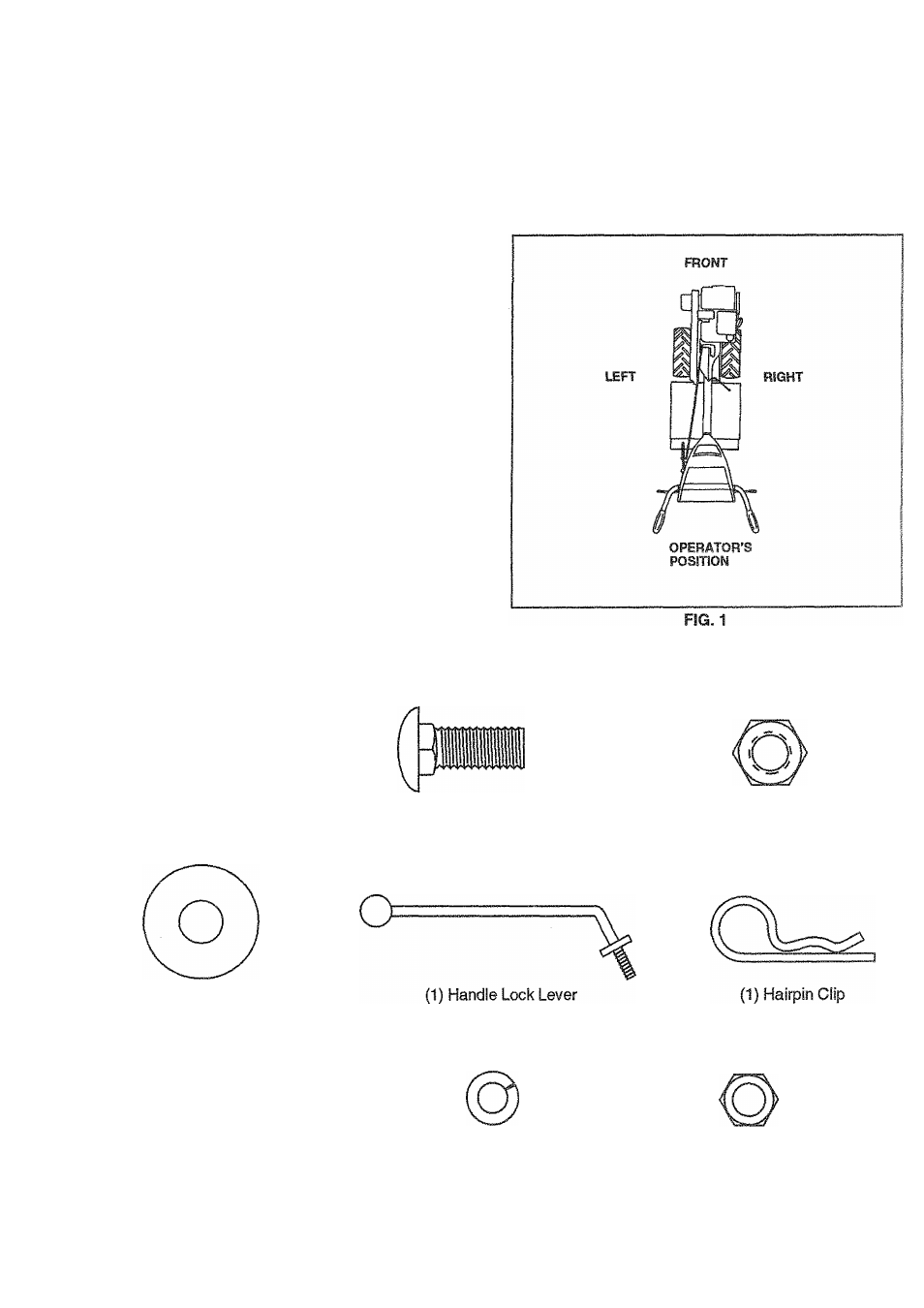

OPERATOR’S POSITIOI^ (See Fig. 1)
The right hand (R.H.)and left hand (L.H.) sides of your tiller
are determined from the operator’s position while standing
behind tiller.
CONTENTS OF HARDWARE PACK
(2) Handle Locks
(2) Carriage Bolts 3/8-16 UNC x 1 Gr. 5
(2) Center Locknuts 3/8-16 UNC
(1) Flat Washer 13/32 x 1 x 11 Ga.
Jill
(1) Shoulder Bolt
(1) Lock Washer 1/4
5
(1) Hex Nut 1/4-20
