SERVICE AND ADJUSTMENTS

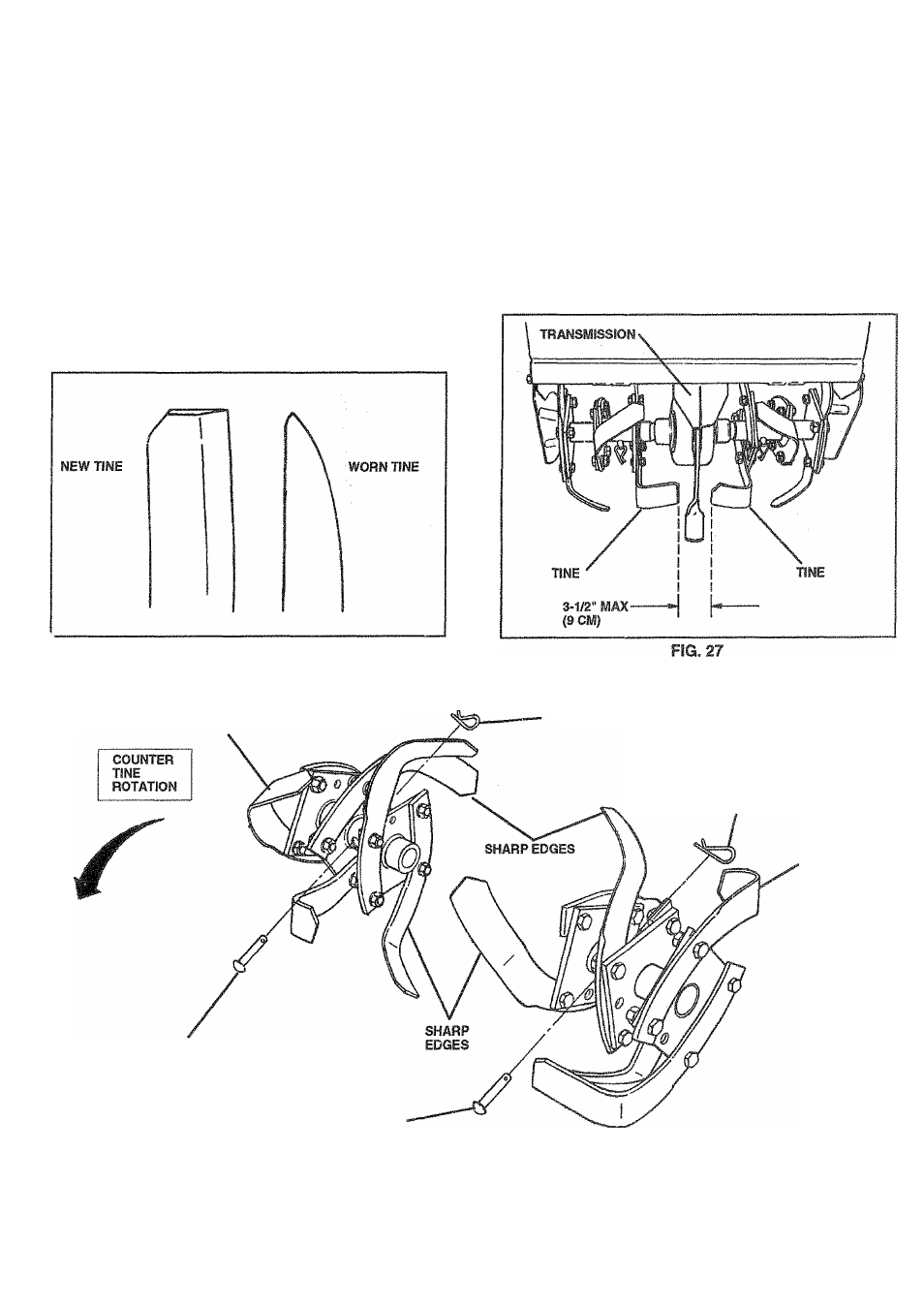

. hNE REPLACEMENT (See Figs« 26, 27 and
28) .
A
CAUTION: Tines are sharp. Wear
qloves or other protection when han
dling tines.
A badly worn tine causes your tiller to work harder and dig
more shallow. Most important, worn tines cannot chop and
shred organic matter as effectively nor bury it as deeply as
good tines. A tine this worn needs to be replaced.
To maintain the superb tilling performance of this
machine the tines should be checked for sharpness,
wear, and bending, particularly the tines which are next
to the transmission. If the gap between the tines
exceeds 3-1/2 inches (9cm), they should be replaced
or straightened as necessary.
New tines should be assembled as shown in Fig. 28.
Sharpened tine edges will rotate rearward from above.
FIG. 26
SHARP EDGE
HAIRPIN CUP
SHEAR PIN
HAIRPIN CUP
SHARP EDGE
SHEAR PIN
FIG. 28
17
