REPAIR PARTS

5 HP 17" TILLER - - MODEL NO. PPRT5, PRODUCT NO. 954 00 62-21

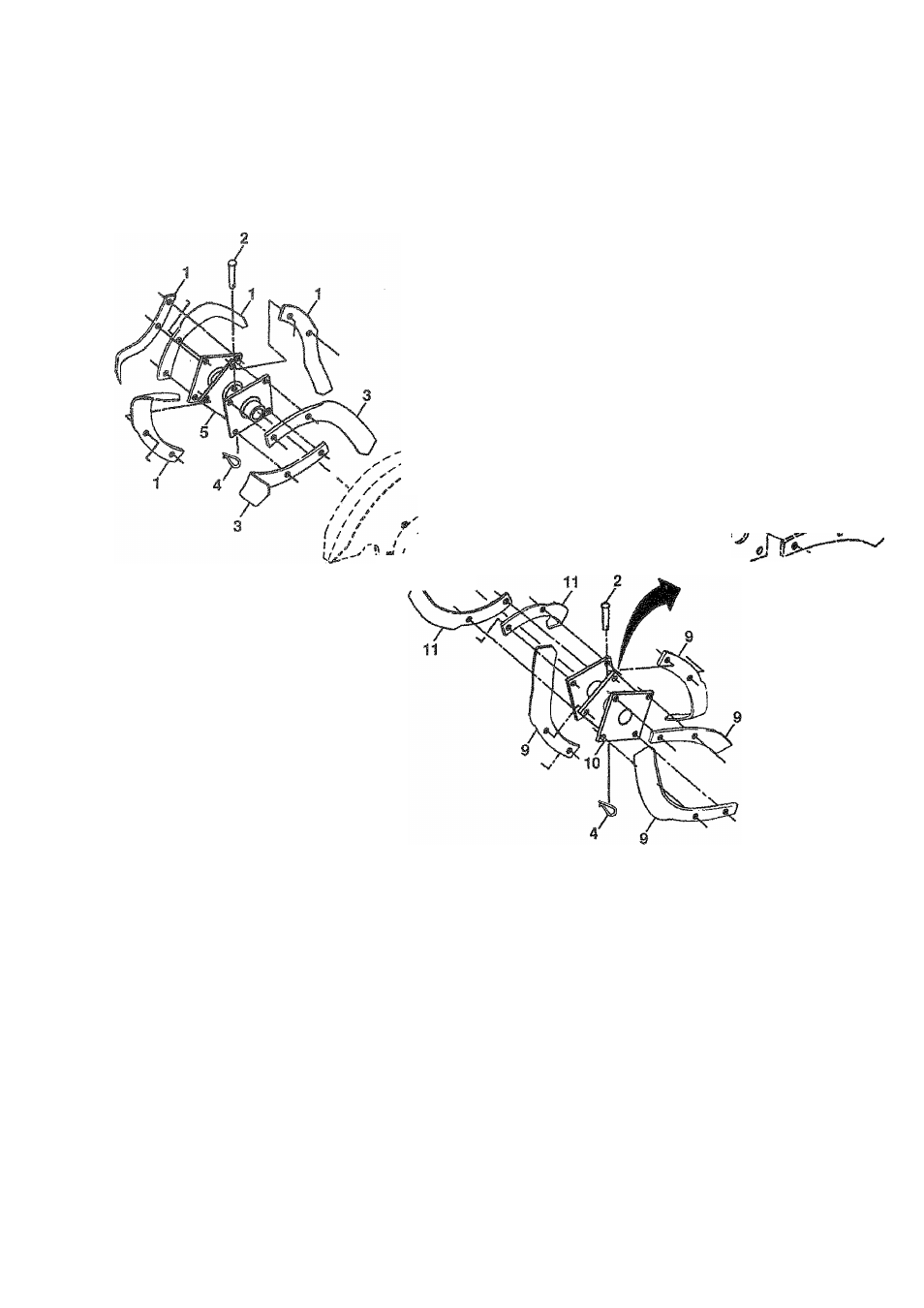

TINE ASSEMBLY

/;? V

/'-‘“I /. .->

,

x/^" ii :

..y

0

"i

(¿c\ ' _

X #V

11^*^

>

KEY PART

MO. NO.

1 532004459

2

532132673

3

532006554

4

532124660

5

532132727

6

873610600

7

810040600

DESCRIPTION

Tine, Outer, L.H.

Pin, Shear

Tine, inner,

L.H.

Clip, Hairpin

Assembly, Hub and Plate, L.H.

Nut, Hex 3/8-24

Washer, Lock 3/8

KEY

NO.

PART

NO.

DESCRIPTION

8

874610616

Bolt, Hex 3/8-24 x 1

9

532004460

Tine, Outer, R.H.

10

532132728

Assembly, Hub and Plate, R.H.

11

532006555

Tine, Inner, R.H.

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

26
