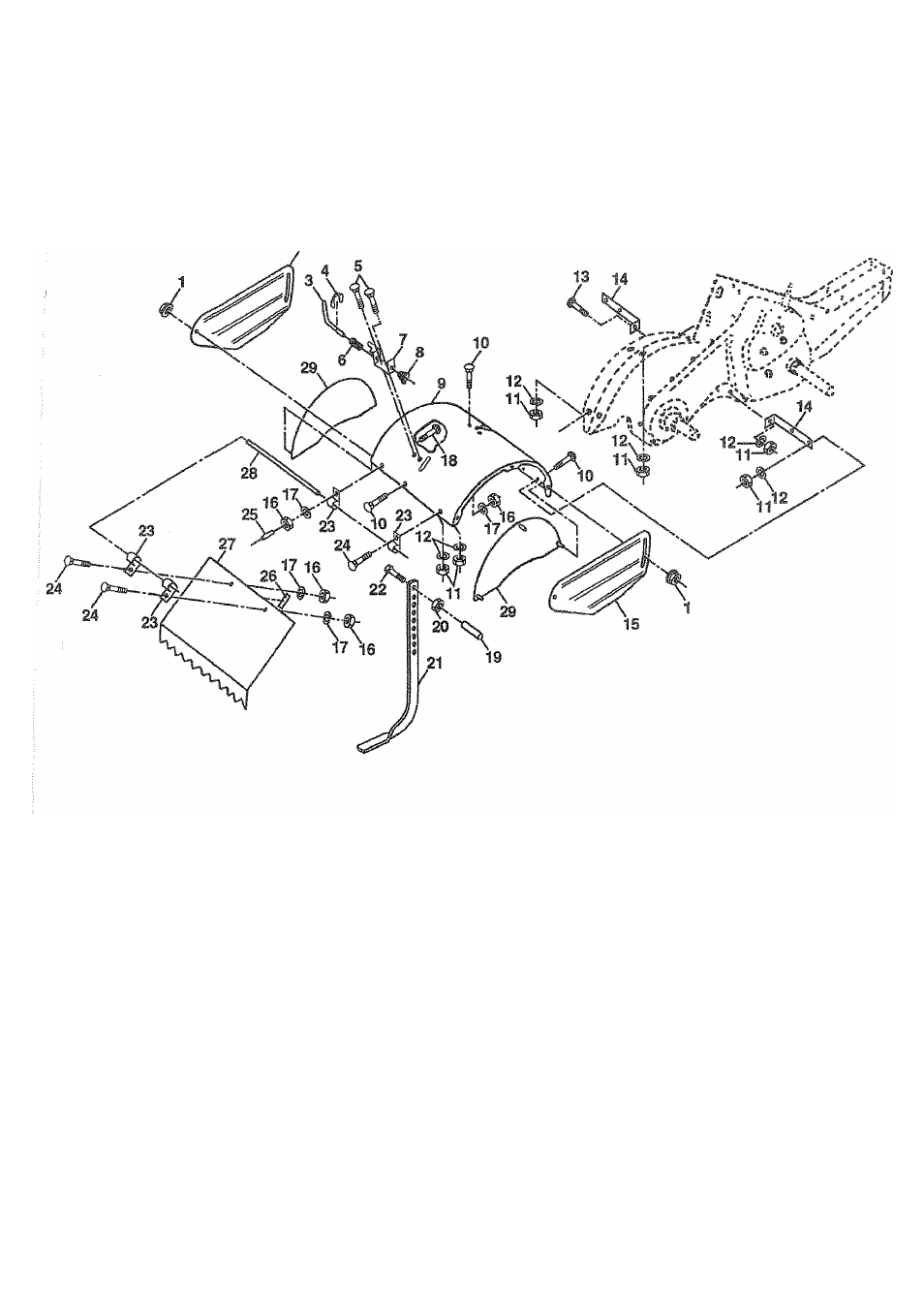

REPAIR PARTS
5 HP 17" TILLER - - MODEL NO. PPRT5, PRODUCT NO. 954 00 62-21
"JNE SHIELD
KEY
HO,
PABT
HO,
DESGBIPTIOM KEY
m.
PART
NO.
DESCRIPTION
1 898000129 Nut, Flange 5/16-18 18 872040410 Bolt, Carriage 1/4-20 x 1-1/4 Gr. 5
2 532125001 Shield, Side, Outer L. H. 19 532102701 Grip
3 532008393 Pin, Stake, Depth 20 873220600 Nut, Hex 3/8-16
4 812000036 Ring, Klip 21 532102156 Stake, Depth
5 872110508 Bolt, Carriage 5/16-18 x 1 22 874930632 Bolt, Hex 3/8-16x2
6 532008394 Spring 23 532004440 Hinge
7 532008392 Bracket, Latch 24 872140404 Bolt, Carriage 1/4-20 x 1/2 Gr. 5
8 532109230 Spring, Depth Stake
Shield, Tine
25 532124717 Cap. Vinyl
9 532124713 26 532109227 Pad, Idler
10 872140506 Bolt, Carriage 5/16-18x3/4 Gr 5 27 532124714 Shield, Leveling
11 873220500 Nut, Hex 5/16-18 28 532120588 Pin, Hinge
12 810040500 Washer, Lock 5/16 29 532124715 Shield, Side
13 872110510 Bolt, Carriage 5/16-18 x 1-1/4 532124263 Decal, Tine Shield
14
]
532124343
532125002 Bracket, Shield Tine
Shield, Side, Outer R.H.
532120075 Decal, Warning (Leveling Shield)
■i6
17
873220400
810040400 Nut, Hex 1/4-20
Washer, Lock 1/4
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
