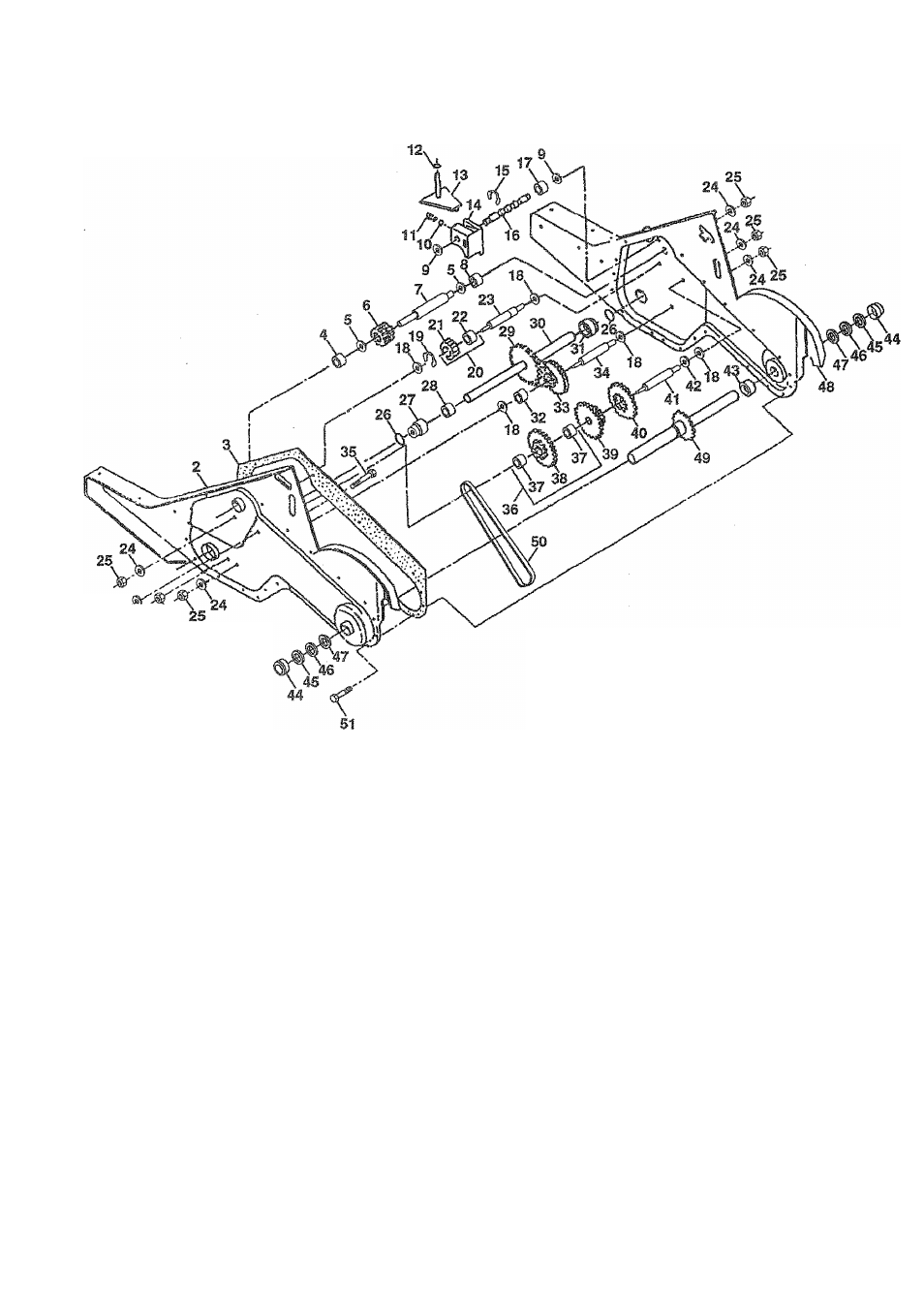

REPAIR PARTS
5 HP 17“ TILLER - - MODEL NO. PPRT5, PRODUCT NO. 954 00 62-21
TRANSMISSION
^^4
52
¿5
KEY
PART
NO.
NO.
1
532132718
2
532121147
3
532106211
4
532005020
5
532001370
6
532102113
7
532102110
8
532124792
9
532102136
10
532124697
11
532100371
12
532106160
13
532102107
14
532008353
15
812000039
16
532102109
17
532104159
18
532004358
19
812000040
20
532102114
21
532102115
22
532006803
23
532102111
24
810040700
DESCRIPTION
Transmission Assembly
(Includes Key Nos. 2-52)
Gearcase, L.H. w/Bearing
(Includes Key No. 4)
Gasket, Gearcase
Bearing, Needle
Washer, Thrust 5 / 8 x 1.1 O x 1/32
Pinion, input
Shaft, input
Bearing, Needle
Washer, Seal
Ball, Steel
Spring, Shift, Fork
O-Ring
Arm,, Shift
Fork, Shift
Ring, Klip
Shaft, Shift
Spacer,
Split
Washer
Ring, Klip
Gear, Assembly, Reverse
Idler
(Includes Key Nos. 21 and 22)
Gear, Reverse Idler
Bearing, Needle
Shaft, Reverse Idler
Washer, Lock 7/16
KEY
NO.
PART
NO.
DESCRIPTION
25
873610700
Nut, Hex 7/16-20
26
532102128
0-Rlng
27
532102100
Bearing, Shaft, Ground Drive
28
532106390
Spacer 0.765 x 1.125 x 1.23
Chain #35-60 Pitch
29
532102134
30
532109204
Ground Shaft Assembly
31
532102106
Bearing, Shaft, Ground Drive
32
532106388
Spacer 0,70 x 1.00 x 1,150
33
532102121
Sprocket and Gear Assembly
Shaft. Reduction (2nd)
Screw, Whiz, L
ock
5/16-18
x
3-1/2
34
532102112
35
532102101
36
532106141
Sprocket Assembly w/Bearing
(includes Key Nos. 37 and 38)
37
532124791
Bearing, Needle
38
532106142
Sprocket, Tine
39
532105345
Gear, Cluster, Red 1st & 2nd
40
532105346
Gear, Reverse
41
532008358
Shaft, Reduction (1st)
42
532004220
Washer, Thrust
43
532106146
Spacer 1.01 x 1,75 x 0.760
44
532009672
Cup, Formed
45
532102144
Ring, Spiral
46
532009676
Seal, Ring, Rubber
47
532009674
Seal, Oil
48
532121745
Gearcase, R.H. w/Bearing
(Includes Key No. 8)
49
532132688
Shaft, Tine
50
532106147
Chain, Roller #50-50 Pitch
51
817580408
Screw 1/4-20x1/2
52
873220500
Nut, Hex 5/16-18
532006066
Grease, Plastilube #1
NOTE: All component dimensions given In U.S. inches.
1 inch - 25.4 mm
