REPAIR PARTS

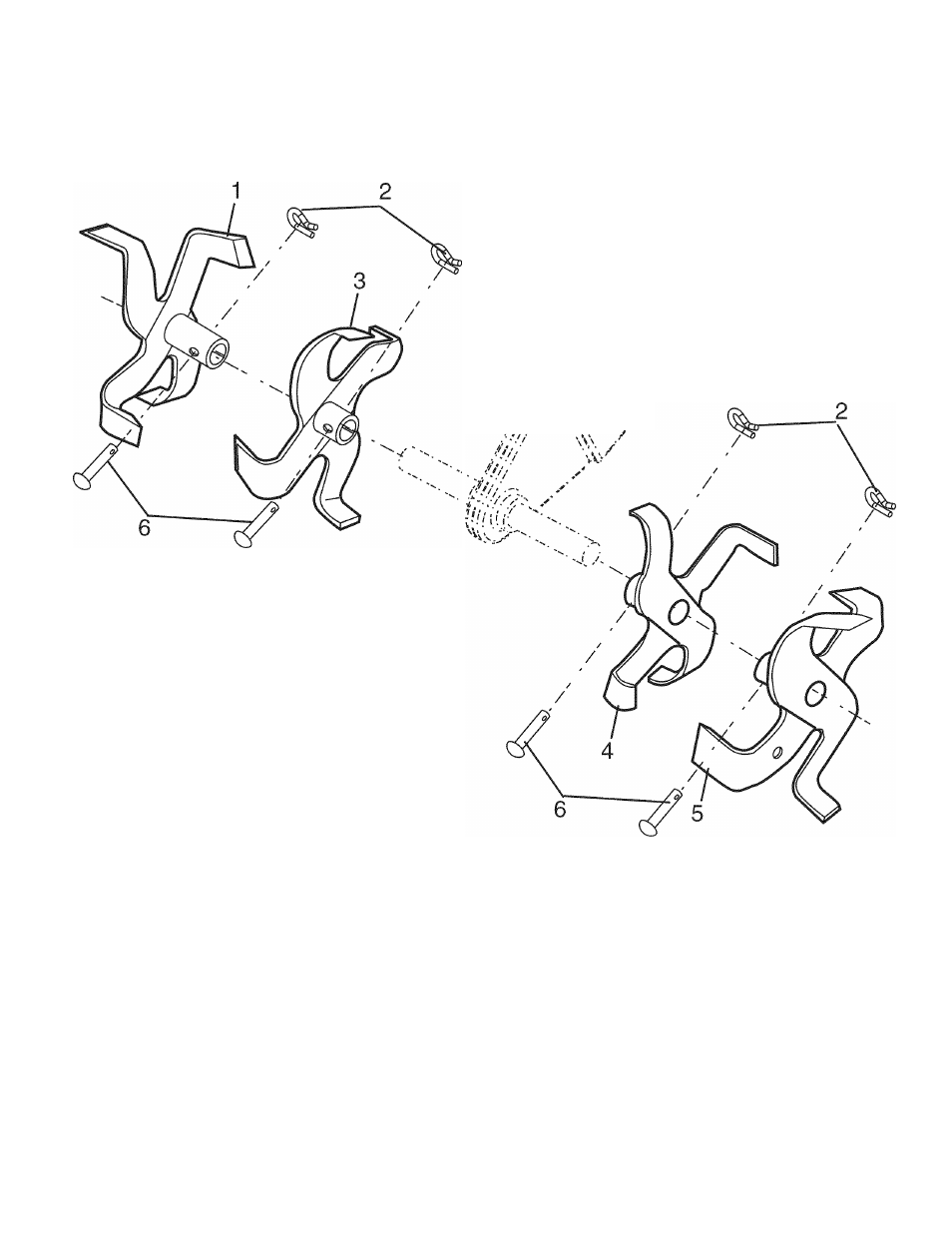

TINE ASSEMBLY
TILLER - - MODEL NUMBER 917.299390
-r-x
.
^ • ✓ •
-
“
>•* ''•V-.
/■' //'
>}• //
\\\
/
'\V\ ,
,/
/ .
■ /
tine_ipb_3
KEY
NO. PART
NO.
DESCRIPTION
KEY
NO. PART
NO.
DESCRIPTION
1 532 15 69-34 Tine, Outer, R.H, 4 532 15 69-31 Tine, Inner, L.H,
2 532 00 31-46 Retainer, Spring 5 532 15 69-33 Tine, Outer, L.H,
3 532 15 69-32 Tine, Inner, R.H, 6 532 00 49-29 Rivet Pan Hd Driiied 1/4 Dia,
