Husqvarna 917.29939 - Manual (Page 18)

REPAIR PARTS

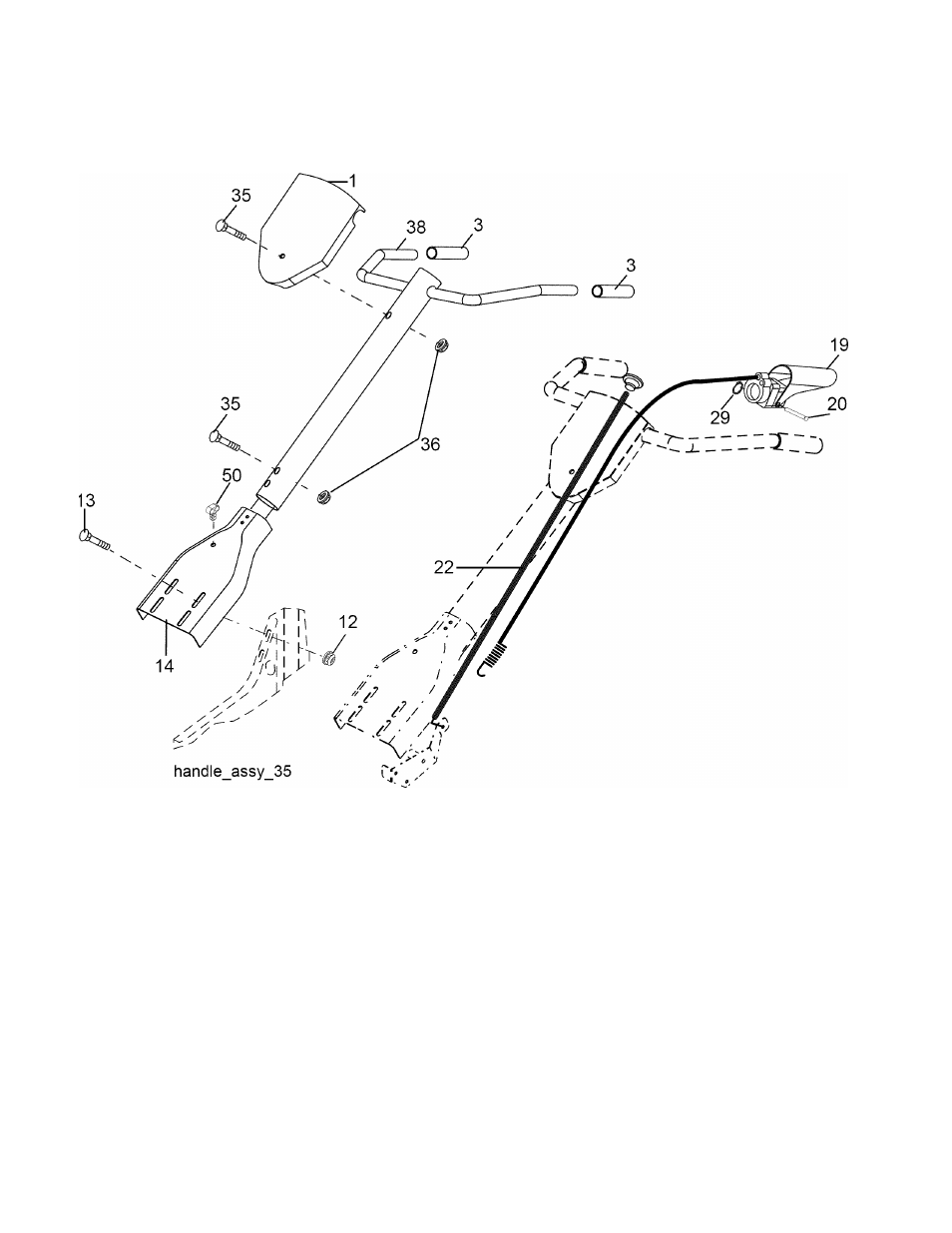

TILLER - - MODEL NUMBER 917.299390
HANDLES
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 532 43 27-09 Panel, Control 35 872 01 05-20 Bolt 5/16-18x2-1/2
3 532 16 57-87 Grip, Handle 36 873 97 05-00 Locknut, Flange 5/16-18 unc
12 898 00 01-29 Nut, Flange 38 532 43 55-67 Assembly, Handle Column
13 872 01 05-06 Bolt, Carriage 5/16-18 x 3/4 50 532 18 15-80 Clip Routine Dual
14 532 18 14-76 Assembly, Panel and Tube
19 532 18 85-32 Lever, Control, Tine
20 532 18 85-55 Pin, Pivot
22 532 18 81-71 Cable Asm Reverse NOTE: All component dimensions given In U.S, Inches,
29 812 00 00-59 Retainer, Ring 1 Inch = 25,4 mm
