TILLER - - MODEL NUMBER 917.299390

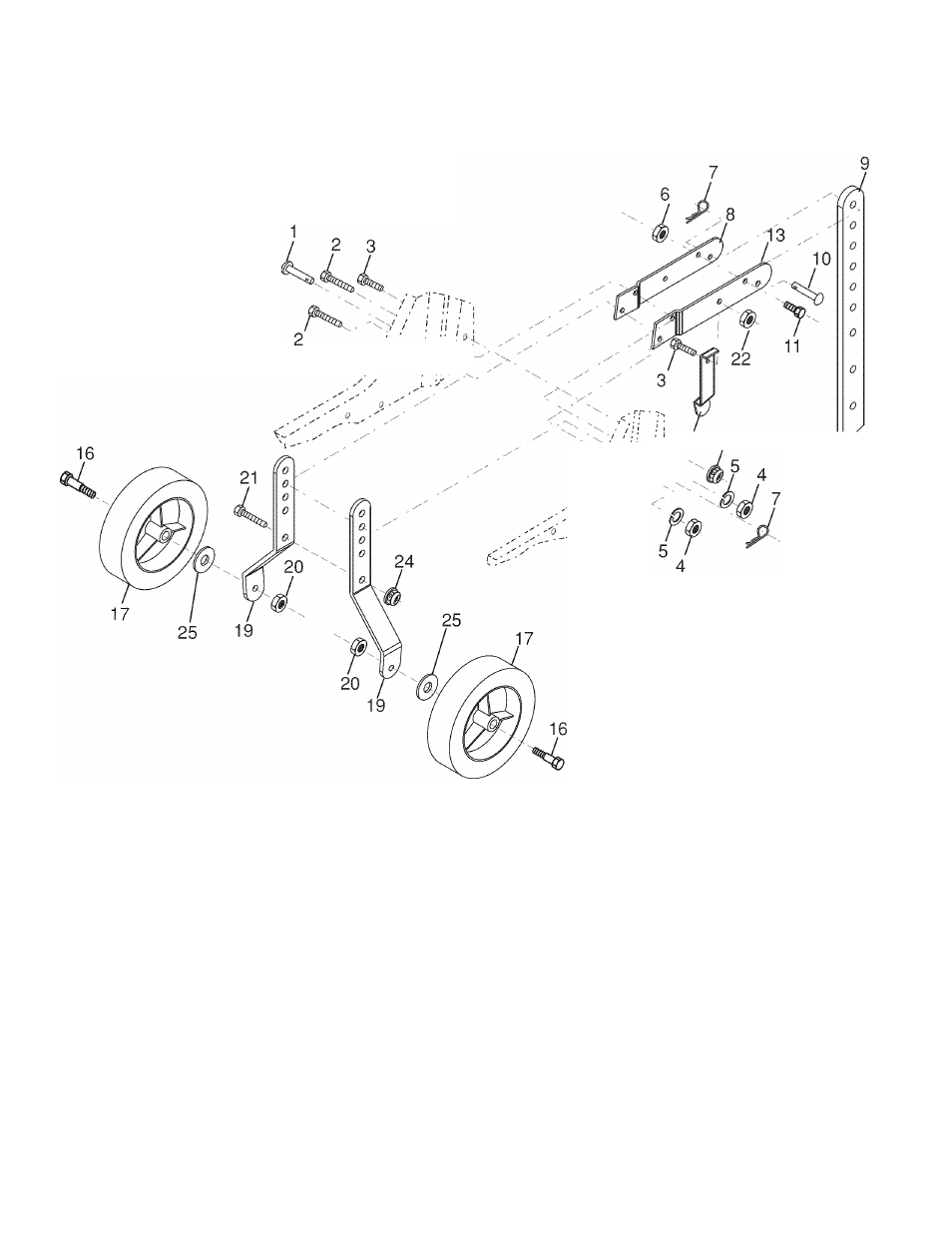

WHEEL AND DEPTH STAKE ASSEMBLY
REPAIR PARTS
/ /
Ч
' ■ ,'V
Hoj-'m
' v/ ; ;; ,>e
bJ
15
24
'>■ / ;; ; ,t" ^
■ л : : fl.'fl.'
' f
wheel d.stake 9
KEY
PART
KEY
PART
NO.
NO. DESCRIPTION
NO.
NO. DESCRIPTION
1
532 00 91-94 Pin, Clevis
15
532 00 53-88 Spring, Stake
2
874 76 05-20 Bolt,
Hex Head
5/16-18x1-1/4
16
532 12 11-17 Bolt, Shoulder
3
874 76 05-12 Bolt, Hex Head 5/16-18 x 3/4
17
532 42 70-25 Wheel
4
873 22 05-00
Nut,
Hex 5/16-18
19
532 00 91-90 Bracket, Wheel
5
810 04 05-00 Washer, Lock 5/16
20
873 68 06-00 Locknut, Crown 3/8-16
6
873 80 06-00 Locknut, w/washer 3/8-16
21
874 76 05-16 Bolt, Hex Head 5/16-18 x 1
7
532 12 49-61 Clip, Hairpin
22
873 80 05-00 Locknut, w/insert 5/16-18
8
532 00 19-52 Support, Depth Stake, R.H,
24
873 97 05-00 Locknut, Flange 5/16-18 unc
9
10
532 12 22-33 Stake, Depth
532 00 03-26 Pin, Clevis
25
819 17 14-16 Washer 17/32 x 7/8x16 Ga.
11
13
874 78 06-28 Bolt, Hex 3/8-16 x 1-3/4
532 00 19-51 Support, Depth Stake, L.H,
NOTE:
All component dimensions given in U.S, inches,
1 inch = 25,4 mm
20
