Models 664D & E666M

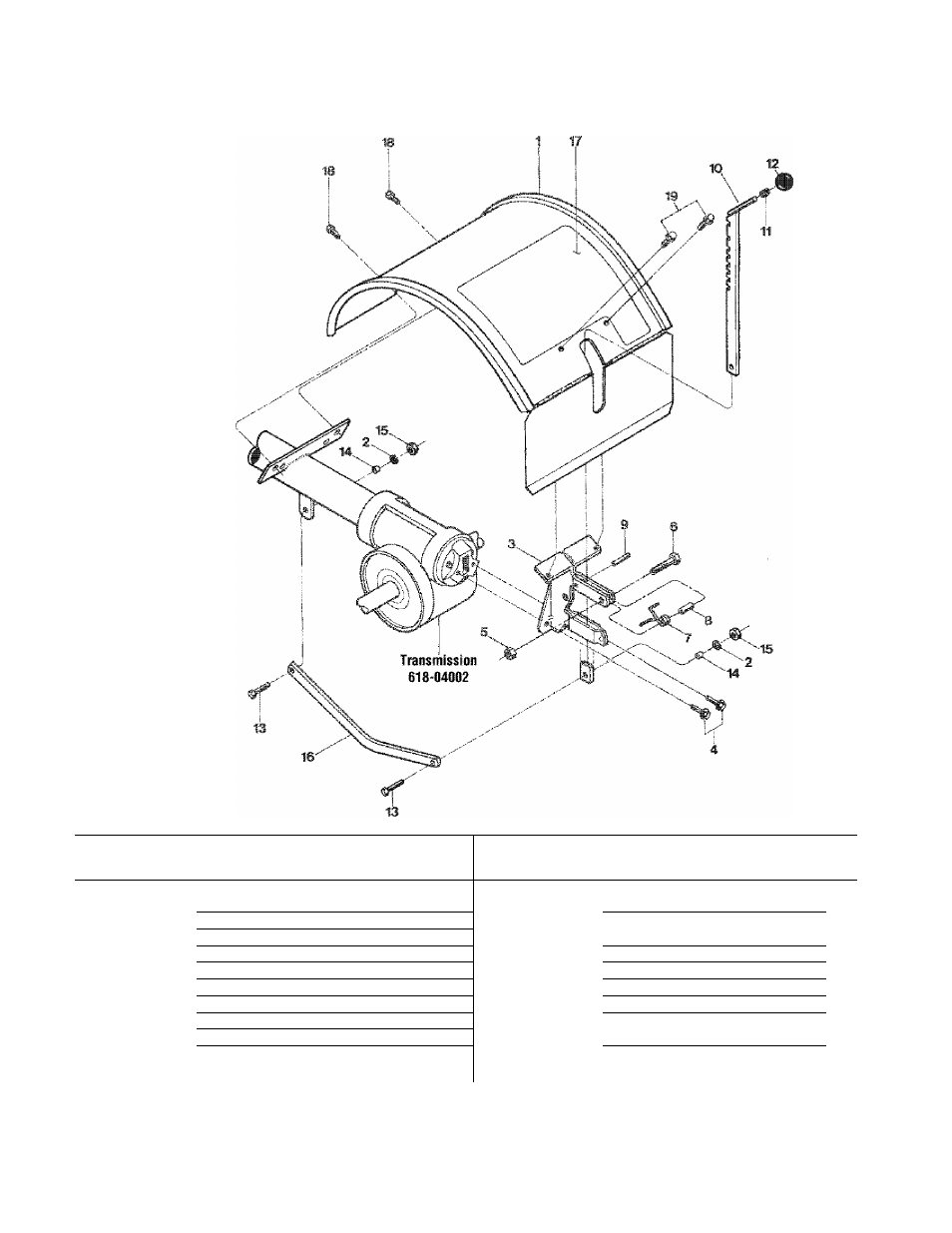

HOOD, BRACKET and DEPTH REGULATOR
REF.
No.
PART
No.
DESCRIPTION
QTY.
REF
No.
PART
No.
DESCRIPTION
QTY
1
686-04013
Tine Hood .......... ....... ....... ....... .
...
1
11
6W-9120
Retaining Ring (tolerance ring).......... .
1
2
710-0169
Lockwasher, 3/8.................. ....... .
... 2
12
GW-9119
Knob, Depth Regulator (Incl. Ref. 11).
1
3
GW-2525
Bracket-hood & depth regulator...........
...
1
13
710-3005
Hex Hd. Screw, 3/8-16 x 1-1/4*..........
2
4
710-04049
Hex Flange Screw, 5/16-18 x 5/8*...
... 2
14
GW-1113-1
Bushing, Drag Bar............ ....... ....... .
2
5
712-0291
Hex Locknut, 1/4-20 .......... ....... .
...
1
15
712-3017
Hex Nut, 3/8-16..................... ....... .
2
6
710-0597
Hex Hd. Screw, 1/4-20 x 1 *............... ... 1
16
GW-20775
Drag Bar.............................................
1
7
GW-9384
Spring............................................. ... 1
17
777S30649
Decal, operating instructions..................
1
8
GW-9534
Spacer............................................. ... 1
18
710-0759
Hex Hd. Screw, self-tapping,
9
1185469
Roll Pin (spirai), 1/4 X1 ...................... ... 1
5/16-18x5/8*.................................
2
10
GW-1117A
Depth Adjustment Bar Assembly
19
710-0599
Hex Flange Screw, self-tapping,
(incl. Refs. 11 and 12)..................... ... 1
1/4-20x1/2*..................................
2
Specify GRADE 5 if ordering part localiy.
