Models 664D & E666M
REF.
No.
PART
No. DESCRIPTION QTY.
REF.
No.
PART
No. DESCRIPTION QTY

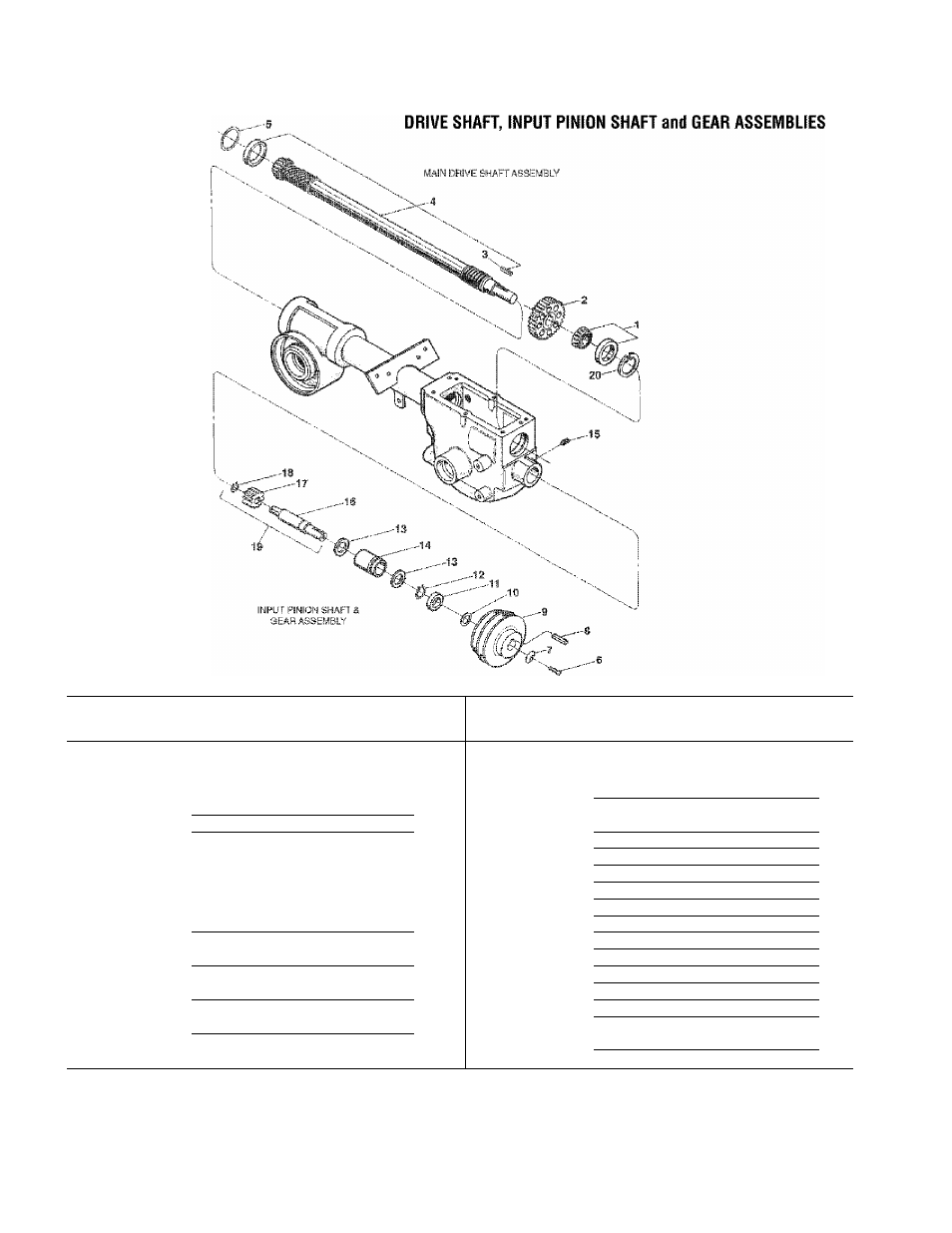

MAIN DRIVE SHAFT INPUT PINION SHAFT & GEAR ASSEMBLY
1 GW-1714 Bearing, Tapered Rotter with Race .... 1 6 GW-9572 HexHd. Screw, 5/16-24x1-1/8*........... 1
2 GW-20718 Spur Gear.......................................... 1 7 GW-9944 Washer, Disc Spring (concave
3 GW-9301 Key, 3/16sq.x1.................................. 1 surface faces pulley)........................ 1
4 GW-20912 Main Drive Shaft (Drive shaft is one- 8 1108841 Key, 3/16 sq.x 1-1/2.......................... 1
piece with integral, single-lead, 9 1916522 Transmission Drive Pulley..................... 1
work-hardened front worm, and 10 GW-1440 Support Washer.................................. 1
integral, six-lead, work-hardened 11 721-04044 Oil Seal, Input Pinion Shaft.................... 1
rear worm. Also includes pressed- 12 1113527 Retaining Ring (external)...................... 1
on GW-1714 and GW-9301)............. 1 13 GW-9953 Thrust Washer.................................... 2
5 GW-1224-1 Shim, Rear Bearing Cap, .010" thick 14 GW-9428 Bushing............................................ 1
(see Note below)............................. A/R 15 GW-9677 Set Screw, 5/16-18x3/8*.................... 1
5 GW-1224-2 Shim, same as above, but .030" thick 16 GW-20791 Input Pinion (steel shaft)....................... 1
(see Note)............. ....... ....... ........ . A/R 17 GW-20792 Input Pinion Gear...................... ....... . 1
5 GW-1224-3 Shim, same as above, but .005“ thick 18 GW-9093 Retaining Ring (external) 1........... ...... . 1
(see Note)............. ....... ....... ....... . A/R 19 GW-20799 Pinion Assy. (Incl. one each Refs. 16,
GW-1325G Shim Set (Incl. two GW-1224-1; two 17 and 18......... ........... ....... ....... . A/R
1224-2 and one GW-1224-3)........ . A/R 20 GW-9517 Retaining Ring (internal)...... ...... ....... . 1
NOTE: Shim between drive shaft rear bearing and rear bearing cap to achieve 5-to-10 thousandths of an inch (.005-.010) end p!ay on drive shaft.
A/R - As Required
* Specify GRADE 5 if ordering part iocaliy.
