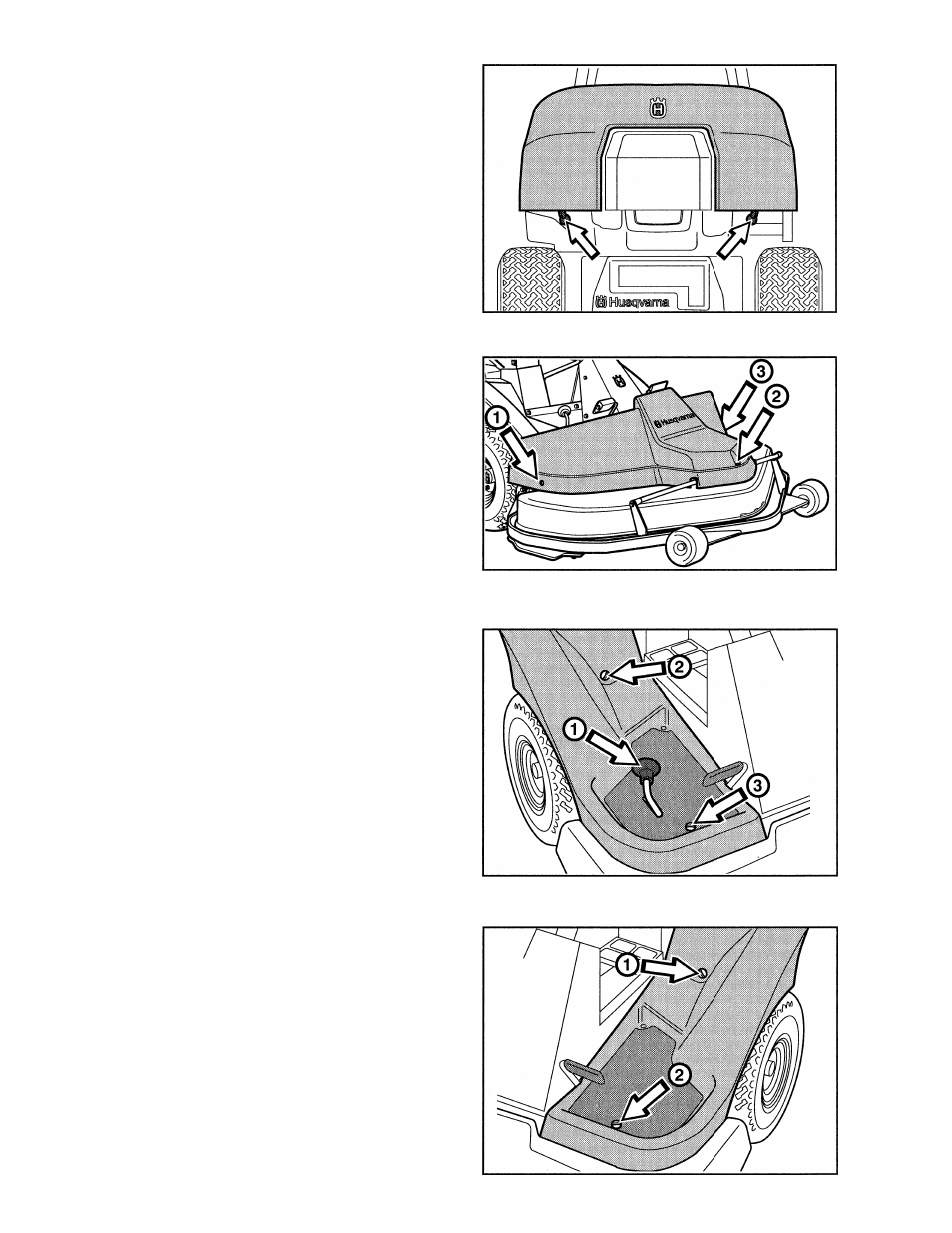

Dismantling of the machine hoods
Engine hood
Release the two rubber straps on the rear edge of
the engine hood and lift off the hood.
Front hood
Dismantle the screws (1,2 and 3) and lift off the
front hood.
Right-hand fender
Dismantle the foot-plate (1), screws (2 and 3), and
lift off the fender.
Left-hand fender
Dismantle the screws (1 and 2), and lift off the
fender.
