The cutting unit on Rider 1200 has rear ejection, i.e.
the grass cuttings are thrown out behind the cutting
unit.

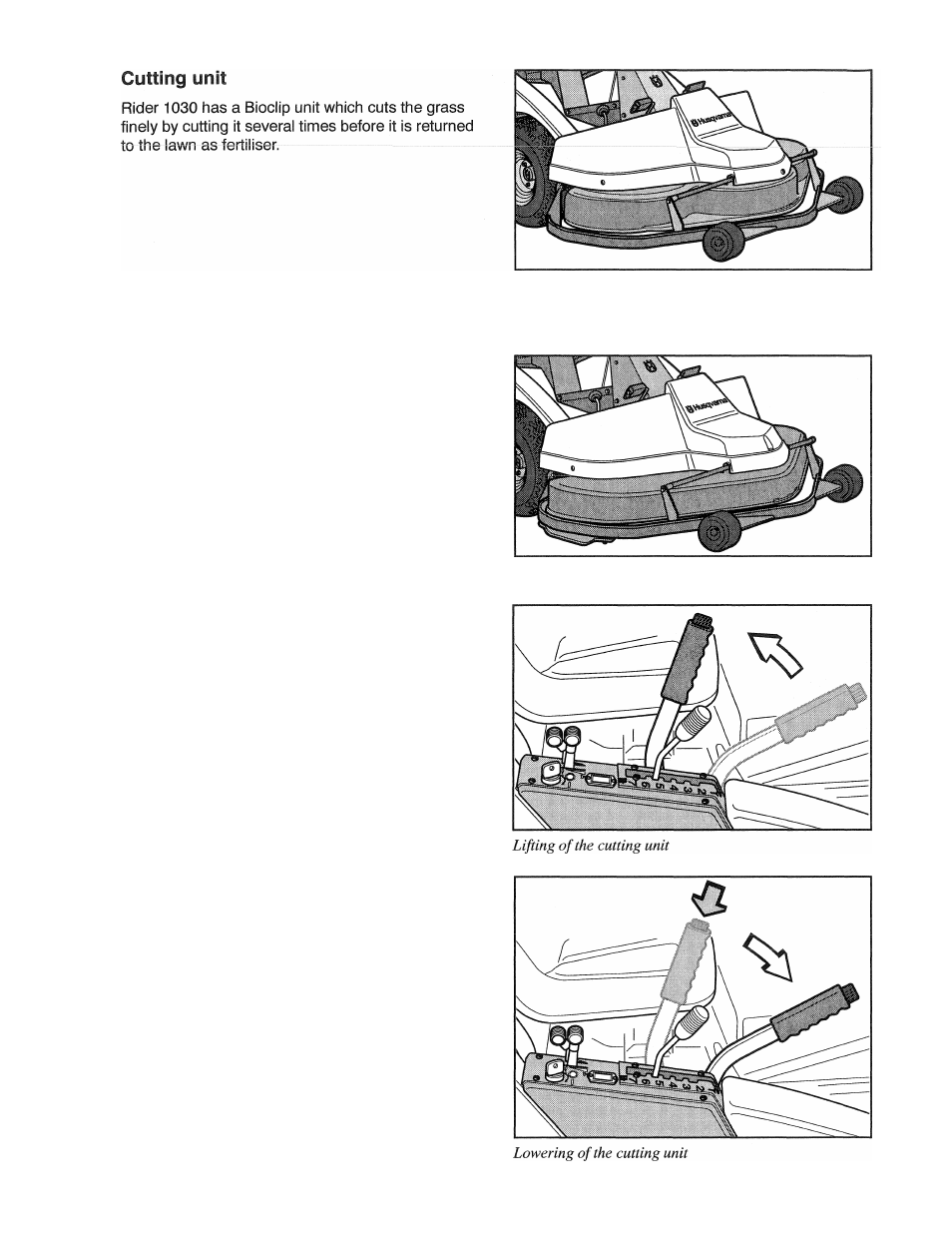

Lift lever for cutting unit
The lift lever is used to set the cutting unit in
transport or mowing position.
1. Pull back the lever to the locked position for
transport.
The cutting unit will lift up and the blades stop
rotating.
Press in the lock button and move the lever
forwards for the mowing position.
The unit will lower down and the blades start to
rotate.
3. The lever can also be used to temporarily
regulate the cutting height, e.g. for a small
mound in the lawn.
