Presentation
These instructions describe two machine models,
Rider 1030 Bioclip and Rider 1200.
Rider 1030 Bioclip and Rider 1200 are fitted with
Vanguard V-Twin engines from Briggs & Stratton of
18h.p.
The power transmission from the engine is handled
by a hydrostatic gearbox which enables stepless
variation of the speed with the foot pedals.
There is one pedal for driving forward and one for
reversing.
The cutting unit on Rider 1200 has rear ejection
with a moving width of 1200 mm.
Rider 1030 has a cutting unit with Bioclip function
and a mowing width of 1030 mm.

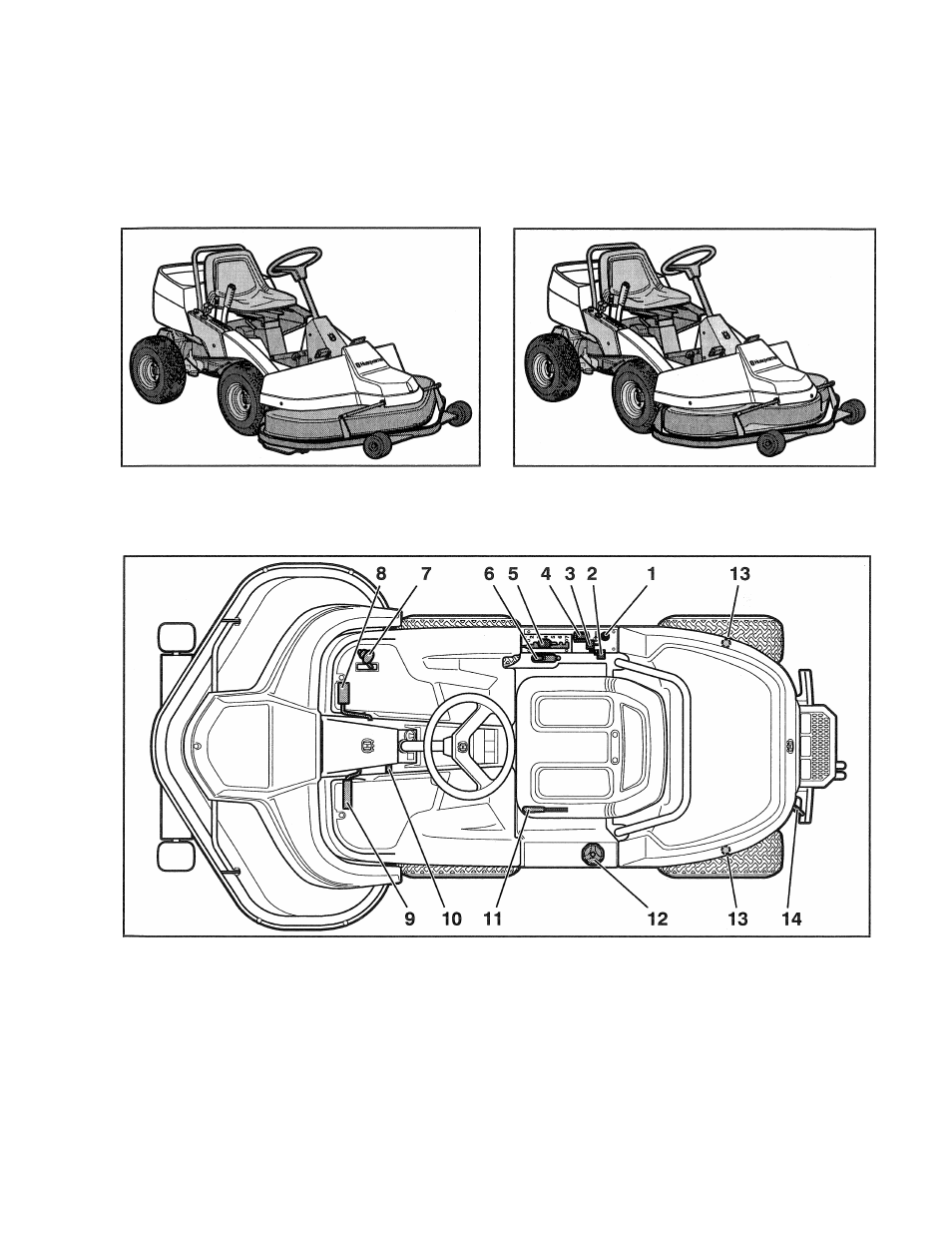

Location of the controls
1. Ignition lock
8.
Speed limiter for driving forward
2. Choke lever
9.
Brake pedal
3. Throttle control
10.
Lock button for parking brake
4. Counter
11.
Lever for adjustment of seat
5. Lever for adjustment of cutting height
12.
Fuel tank cap
6. Lifting lever for cutting unit with lock button
13.
Main lock
7. Speed limiter for reversing
14.
Lever to disengage the drive
