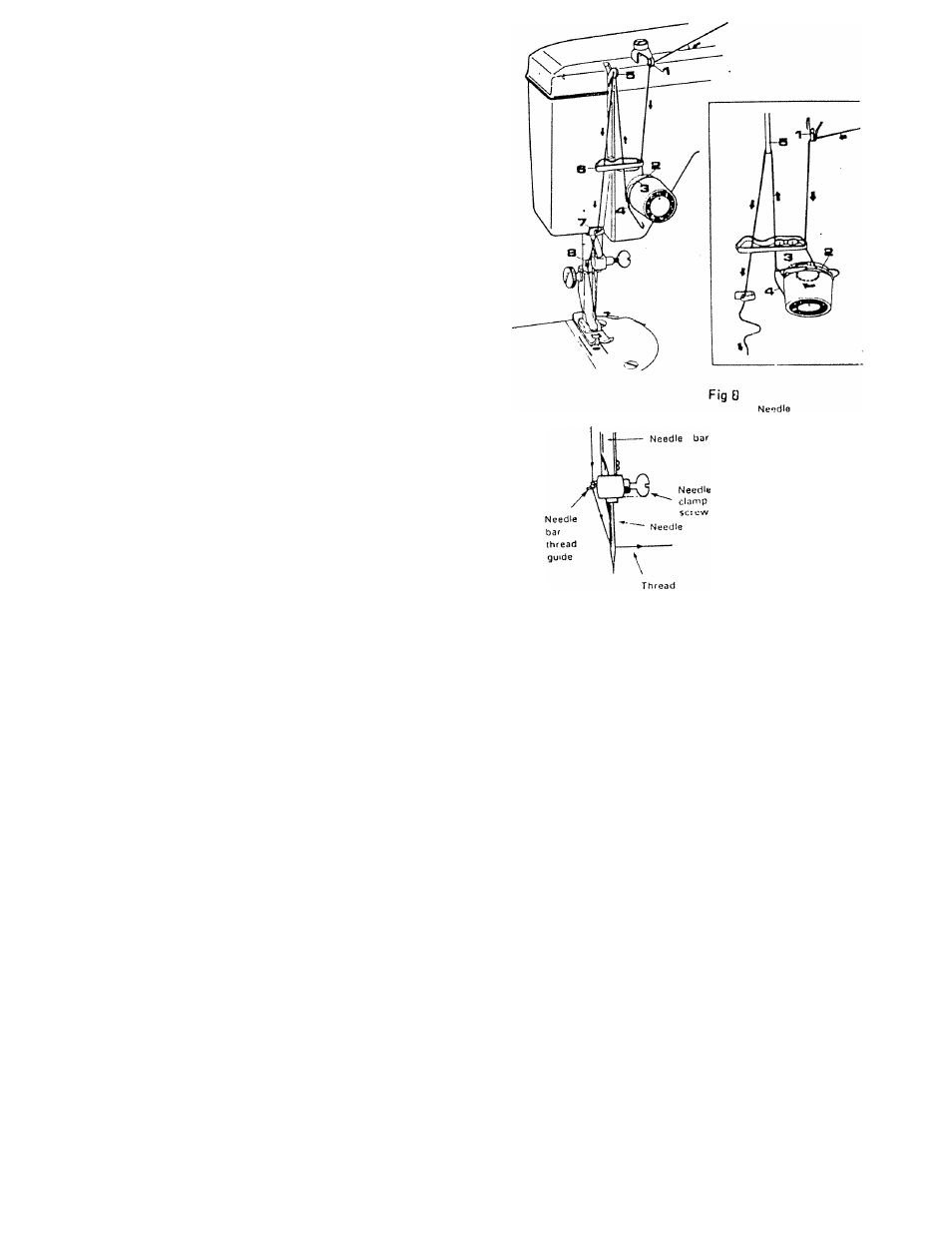

Place a spool of thread on spool pin and raise the take-up
lever to its highest point Refer to
8
)
Pull thread through slot of upper thread guide (1) down
through tension discusl2!up into thread check spring (3) and
and on up into the eye of the take-up lever (51 from right
to left.
Return thread through middle thread guide (61 down through
lower thread guide (71 and into needle bar thread guide (81
Thread needle from left to right, pulling about four inches
of thread through needle.
6. THREADING THE MACHINE
7. SETTING THE NEEDLE
1. Turn the balance wheel towards you, raising needle bar
to its highest position, and loosen the needle clamp screw.
2. Hold the needle in the left hand with the point down
and insert the needle up into the needle clamp as for
as it will go with' its flat surface to the right then retight
en the clamp screw (Fig. 91.
F i g 9
Flat surface
