27. CLEANING THE SHUTTLE RACE

When the thread is tangled in the race or lint gets into the

space between the shuttle and shuttle-race, this will cause

abrupt heavy running or complete stoppage of the machine.

When this occurs

1. Raise the needle bar to its highest position and take the

bobbin case out.

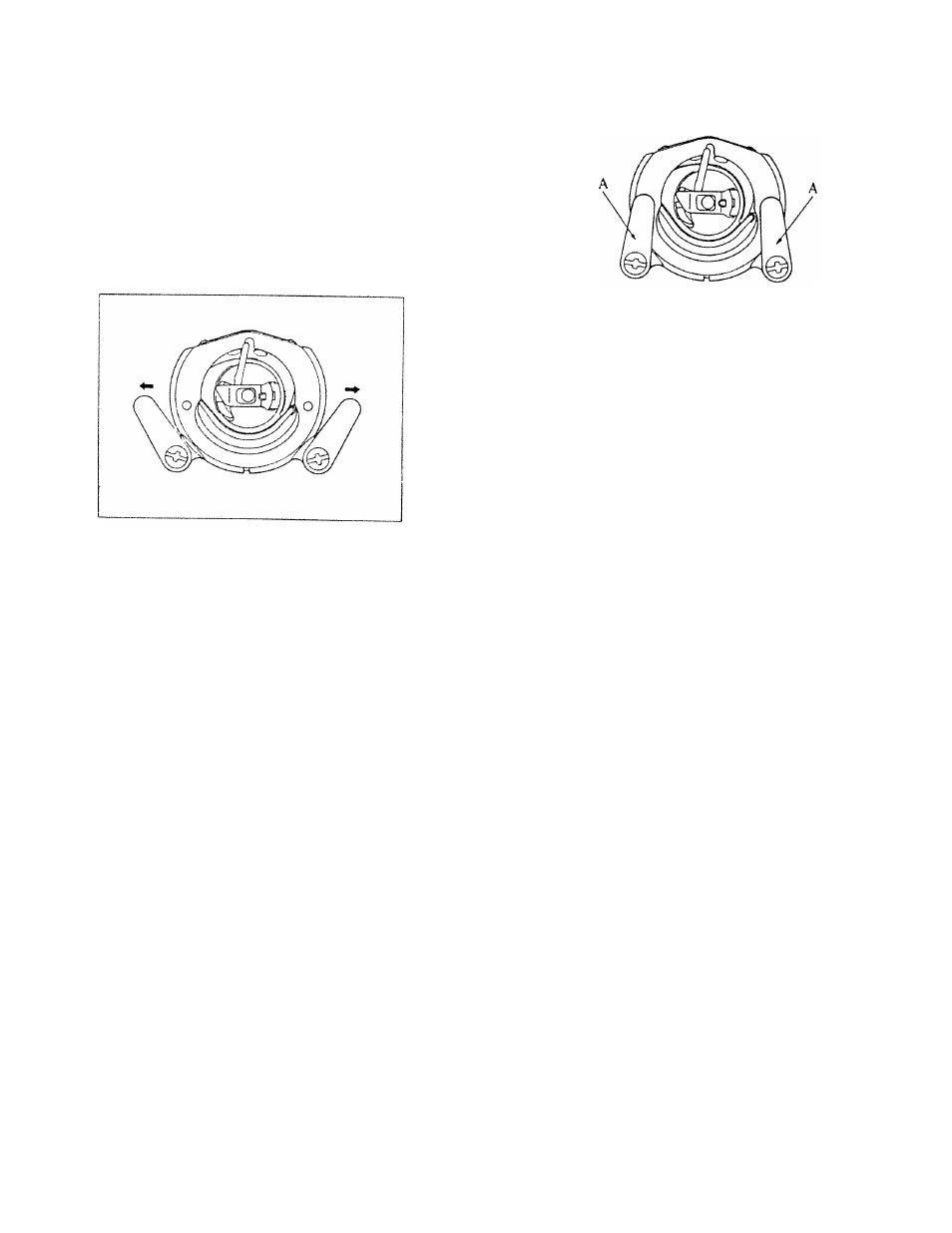

Fig. 40

Fig. 39

2. Pull the KNOBS {A) on both side of shuttle race (Fig. 39

& 40). aside, then take out the outside nn^ and the shuttle

body with your fingers.

3. After shuttle race and bobbin case have been cleaned, put

all of them back in reverse order.
