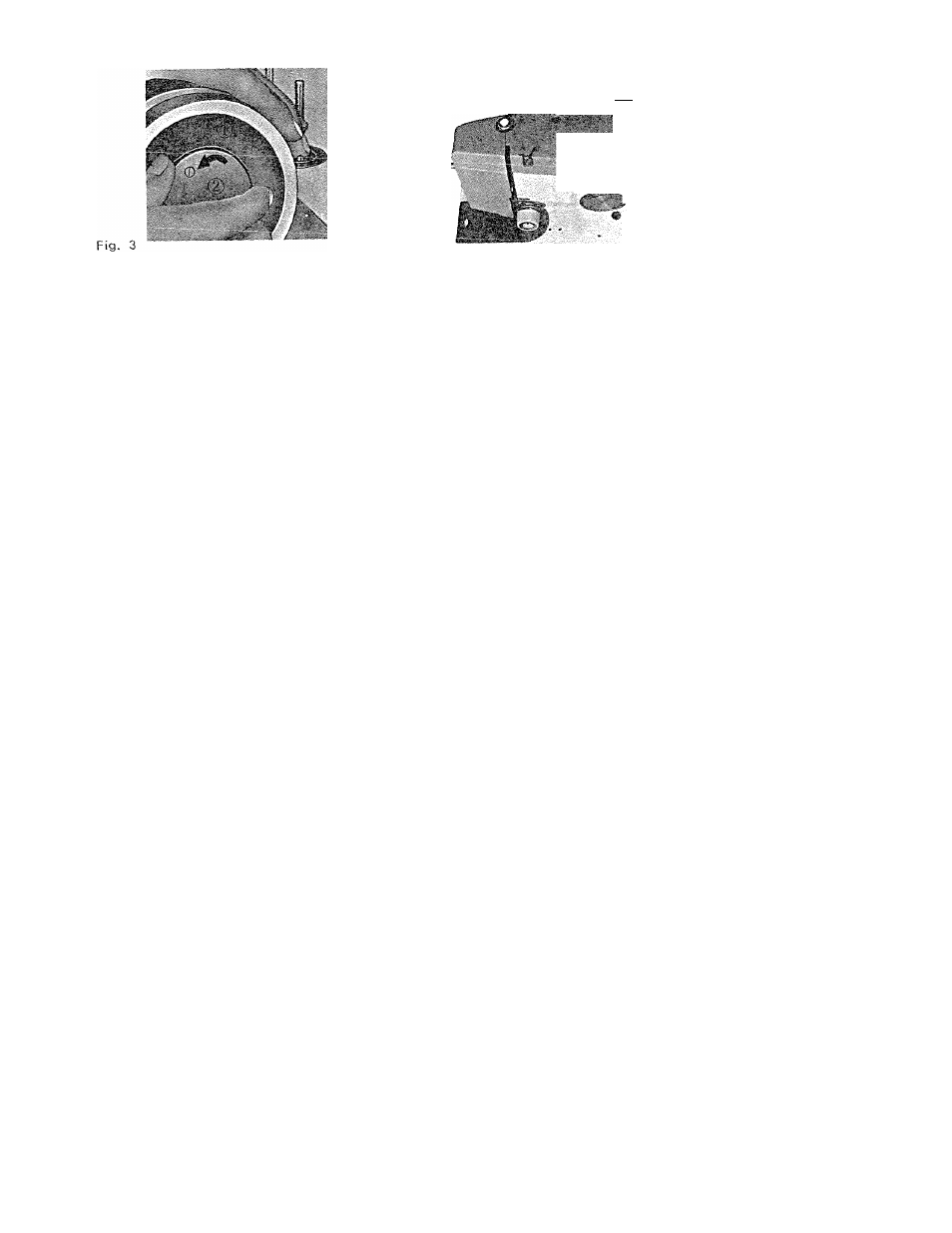

Fig. 4
WINDING THE BOBBIN
Disengage the hand wheel (l, Fig. 3) from the stitching mechanism by turning the
dutch (2, Fig. 3) toward you or counter clockwise. Place
a
spool of thread on one of
the spool pins and lead thread though ■ the arm th read guide (3, Fig. 4). Run end of
thread through a hole in the bobbin edge and place bobbin on spindle of bobbin winder
(4, Fig. 4) fitting the notch on bobbin over small pin on spindle. Push bobbin winder
(5, Fig. 4) to the right, and hold thread end loosely then start machine slowly.
Bodbin will stop winding when it is filled. Turn clutch away from you until sewing
mechanism Is again engaged so thet needle moves when you turn the hand wheel.
Break off loose thread end used to start the winding.
