INSTALLING SEWING HEAD IN CABINET

. Back off both head hinge set screws

until head hinge hole is clear.

2. Tilt head hinge tongues up and back

as far as they will go.

3. Carefully slip head onto head hinges

- - making sure tongues are inserted

as far as they can go into head

hinge holes.

Allow the head to rest in its tilted-

back position.

Tighten both set screws securely

with screw driver.

6. Plug electrical leads into sockets

located inside cabinet. Cord identi

fied with “motor” tag must be plugged

into socket marked “motor”.

Untagged cord goes to “light”

socket.

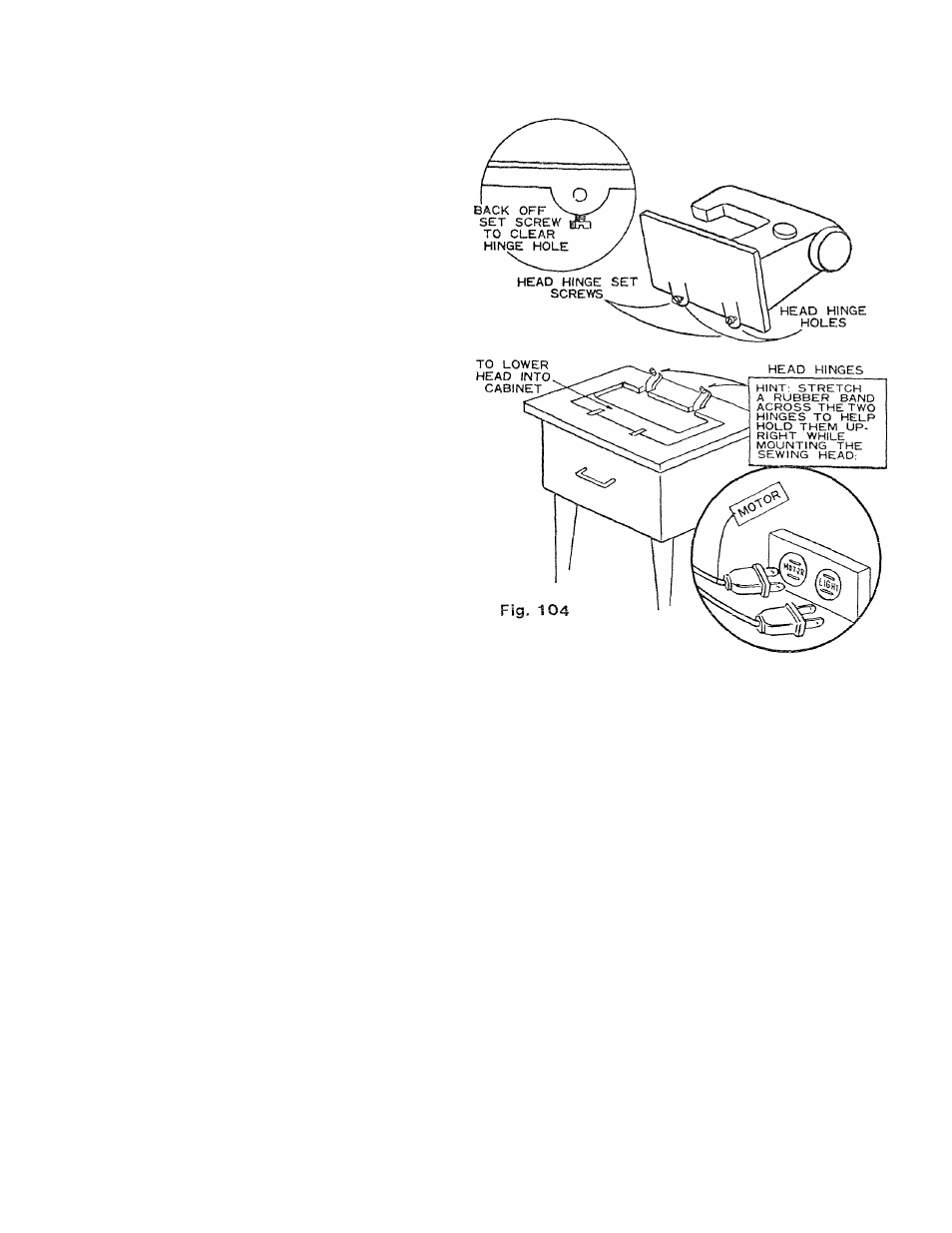

See Fig.' 104

LIFT FLAP
