28
ADJUSTING AND CHANGING “V” BELT

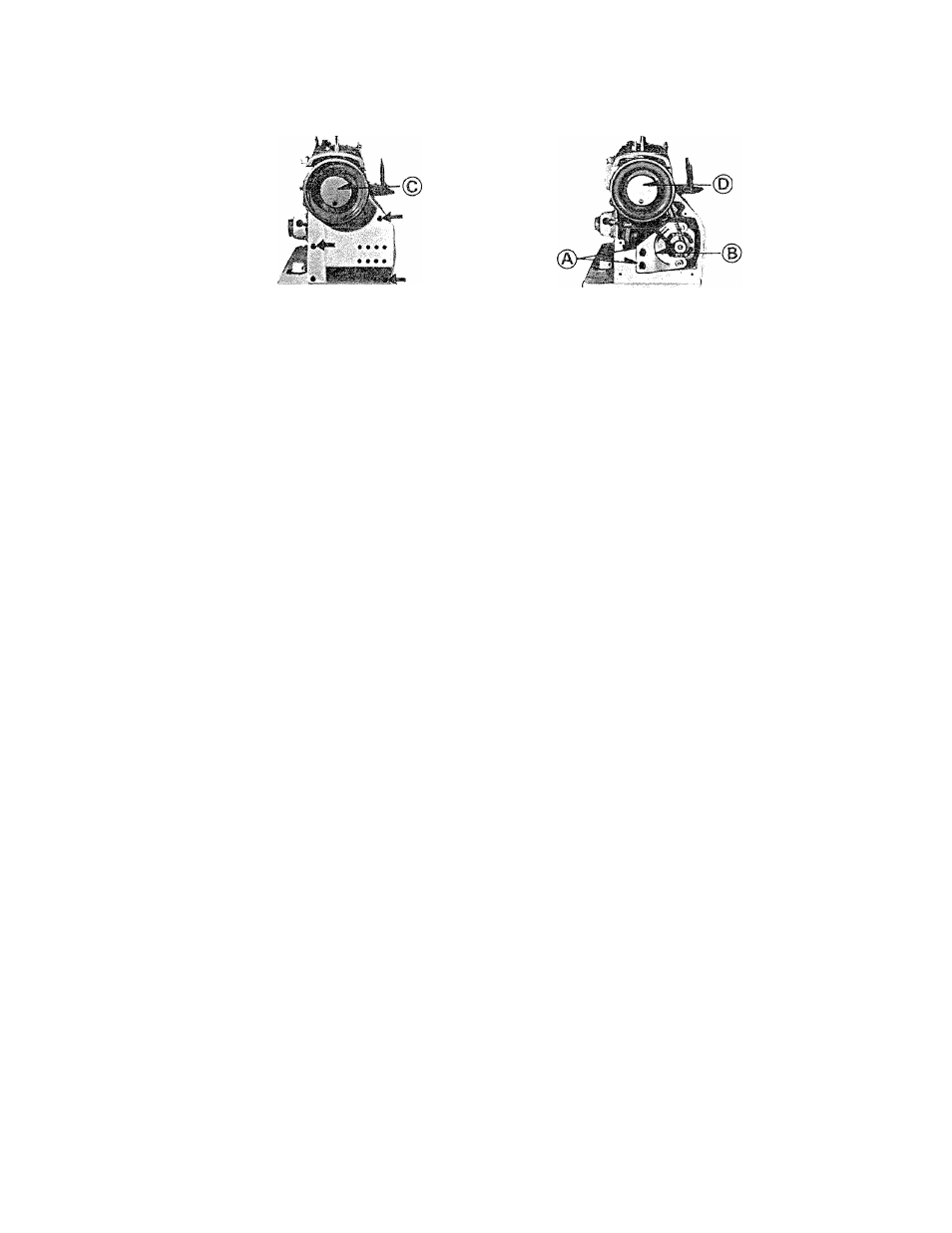

Fig. 58 Fig. 59
Following are the instructions for adjusting and changing the “V” belt;
(1) Remove three screws holding rear cover (Fig. 58) by tipping it out
pivoting around the hand wheel away from the front of the machine.
(2) To adjust “V” belt, loosen screws (A, Fig. 59 ) and move bracket B
down to tighten.
(3) To remove “V” belt:
at the bottom and
up to loosen belt and
(A)
(B)
(C)
(D)
(E)
(F)
Remove top cover.
I con (C' Fin
Loosen screws “ a ” (Fig. 59) and move bracket B” to its highest position.
Slip belt off motor pulley and then over hand wheel.
Replace “V” belt by slipping it over hand wheel and then over motor pulley.
Adjust as noted under No. 2.
