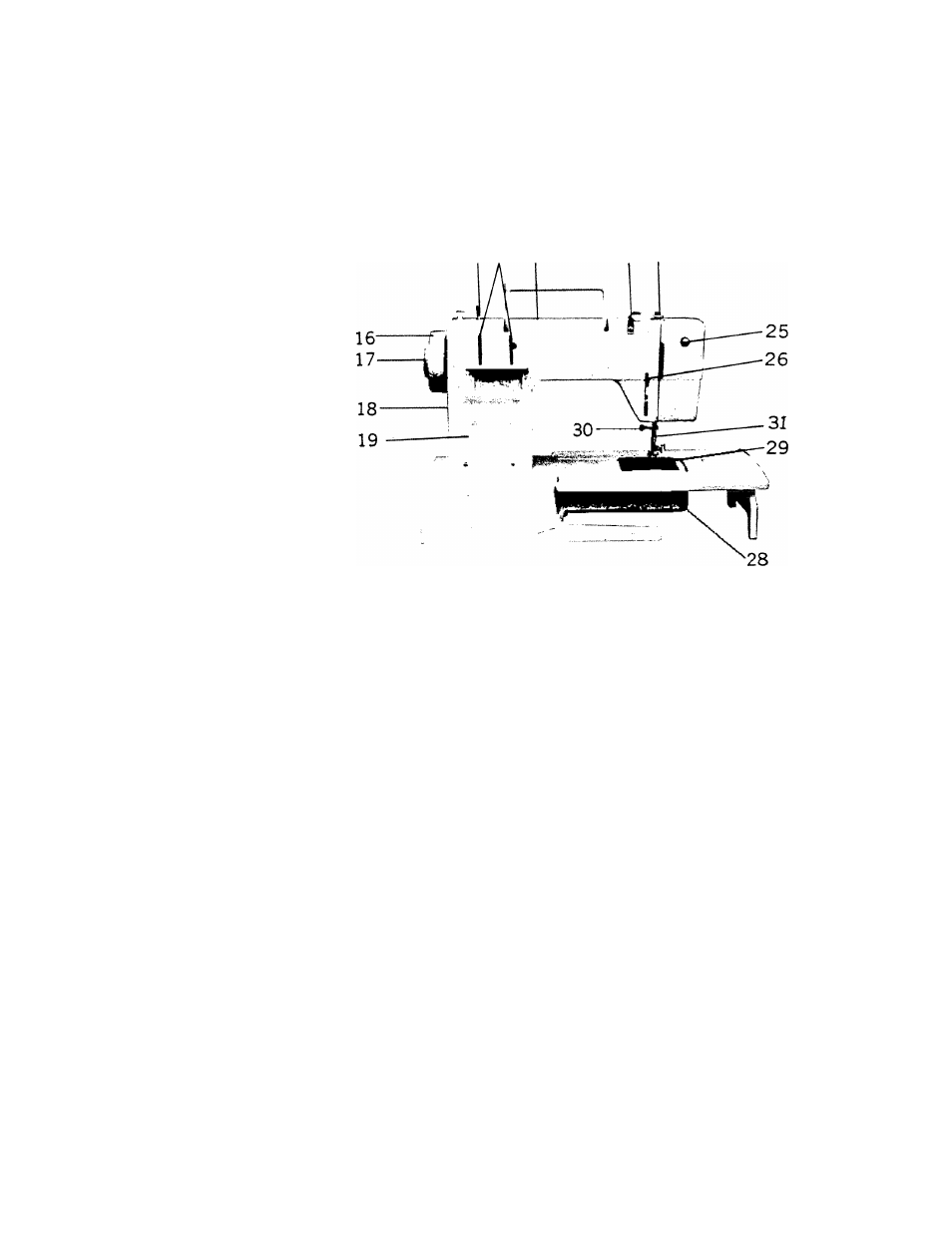

REAR VIEW
20 21 22
23 24
16.
Hand Wheel
25.
Sew Light Switch
17.
Stop Motion Knob
26.
Presser Foot Lifter
18.
Cover Plate
27.
Extension Plate
19.
Bobbin Holders
28.
Free Arm
20
.
Bobbin Winder
29.
Steel Plate
21
.
Spool Pin
30.
Needle Clamp Screw
22
.
Top Plate
31.
Thread Cutter
23.
Thread Guide and Bobbin
Winder Thread Tension
24.
Patch-O-Matic Darner
