21
\
\

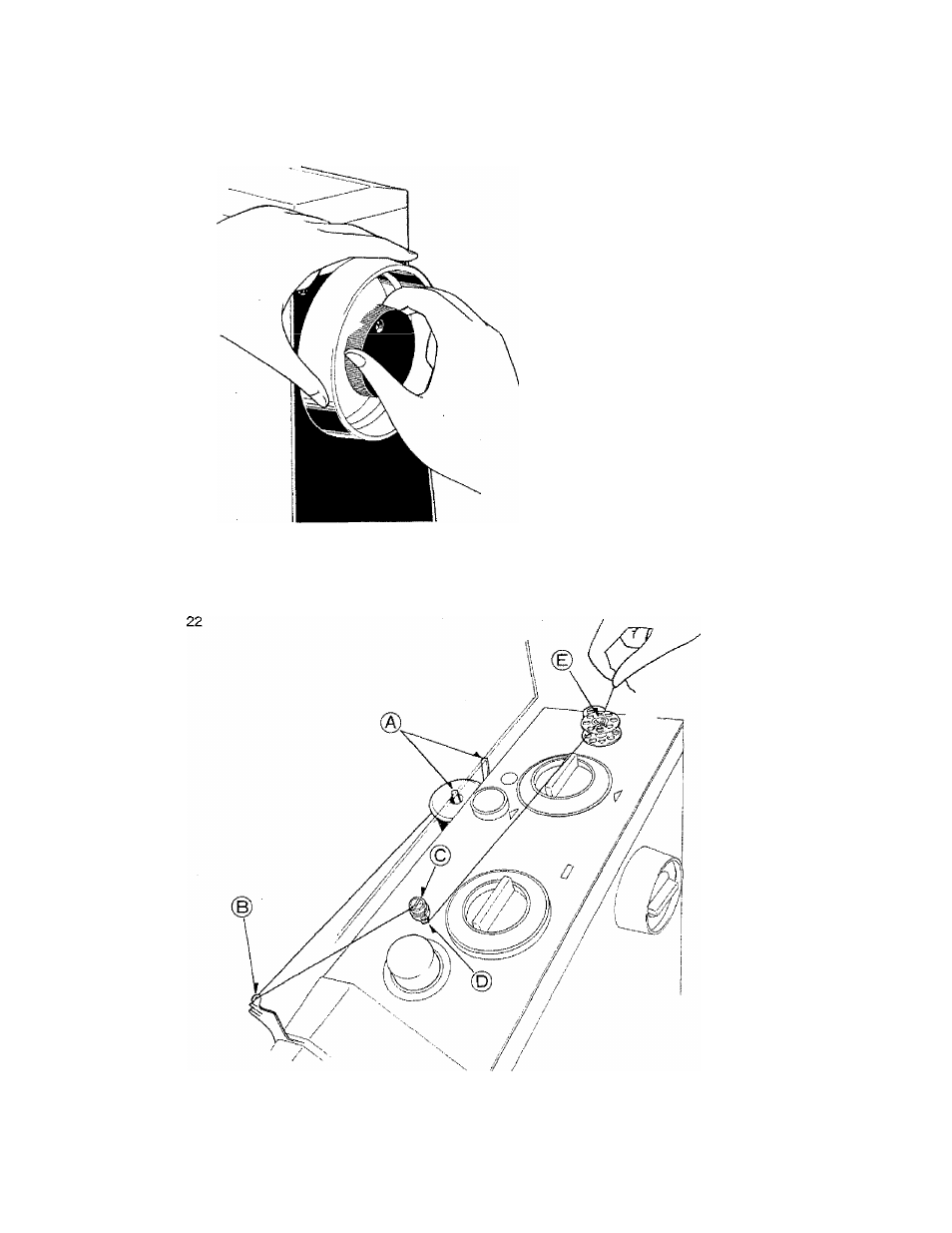

Disengage the hand wheel by holding it
tightly with your ¡eft hand and turning
the coupling wheel toward you with your
right hand (Fig, 21), Place the spool
on spool pin (A), leaving about one foot
of thread free. Lead the thread around
the top thread hook of the guide (B) on
the left back of the machine and around
the bobbin winder tension disc (C). Then
thread guide (D) as illustrated (Fig, 22).
Run the end of the thread through a hole
on the riiTi of the bobbin on the spindle,
(E) and push the bobbin winder to the
right. Hold the thread end securely and
run the machine slowly. Bobbin will stop
turning when filled. Cut thread and push
bobbin
winder to the left. Remove
bobbin from spindle. Tighten the coupl­
ing wheel by turning it away from you as
you hold the hand wheel in place. The
needle should now move when you turn
the hand wheel.
WINDING THE BOBBIN
Note: If the bobbin is winding unevenly,
adjust bobbin winder thread guide
(D) up or down as needed.
9
