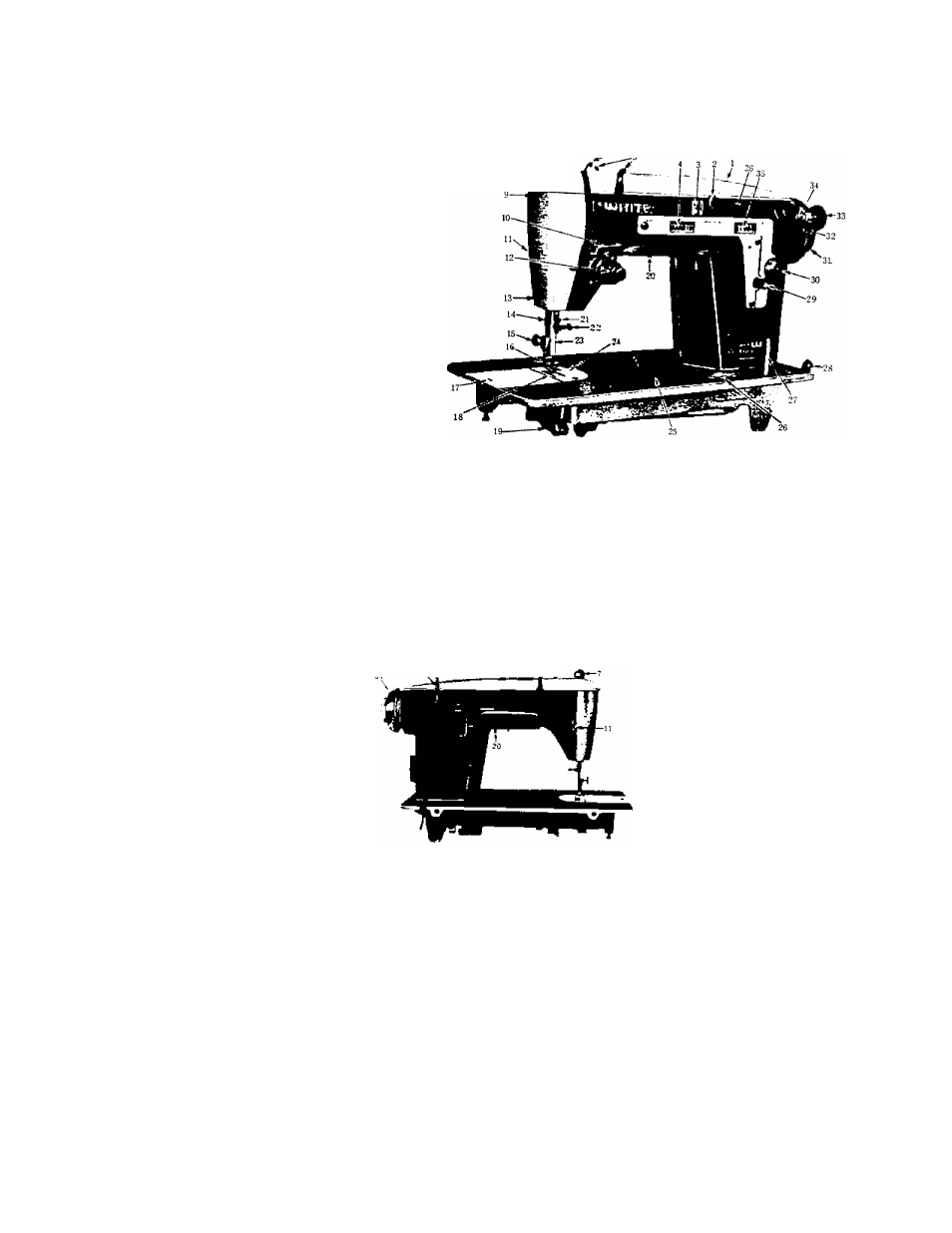

Name of Each Part
1. Arm spool pin
2. Zigzag width stop lock
3. Zigzag width regulating lever
4. Zigzag width indicator
5. Upper arm thread guide
6. Thread take-up lever
7. Automatic darner
8. Top cover
9. Face plate
10. Lower arm thread guide
11. Presser bar lifter
(Pig. 1-B)
(Fig. "I—A)
12. Thread tension regulator
13. Face plate set screw
14. Presser bar
15. Thumb screw
16. Presser foot
17. Slide plate
18. Feed dog
19. Shuttle race
20. Switch for light
21. Needle bar
22. Needle clamp
23. Needle
24. Needle plate
25. Bed
26. Drop feed buttons
27. Bed spool pin
28. Bobbin winder tension bracket
29. Reverse button
30. Stitch length regulating dial
31. Hand wheel
32. Bobbin winder push button
33. Bobbin winder wheel
34. Bobbin winder spindle
35. Stitch length indicator
36. Arm
