TROUBLE CHART
Trouble
If Machine
Binds
Probgble Cause
Thread or lint in
race way
Correction

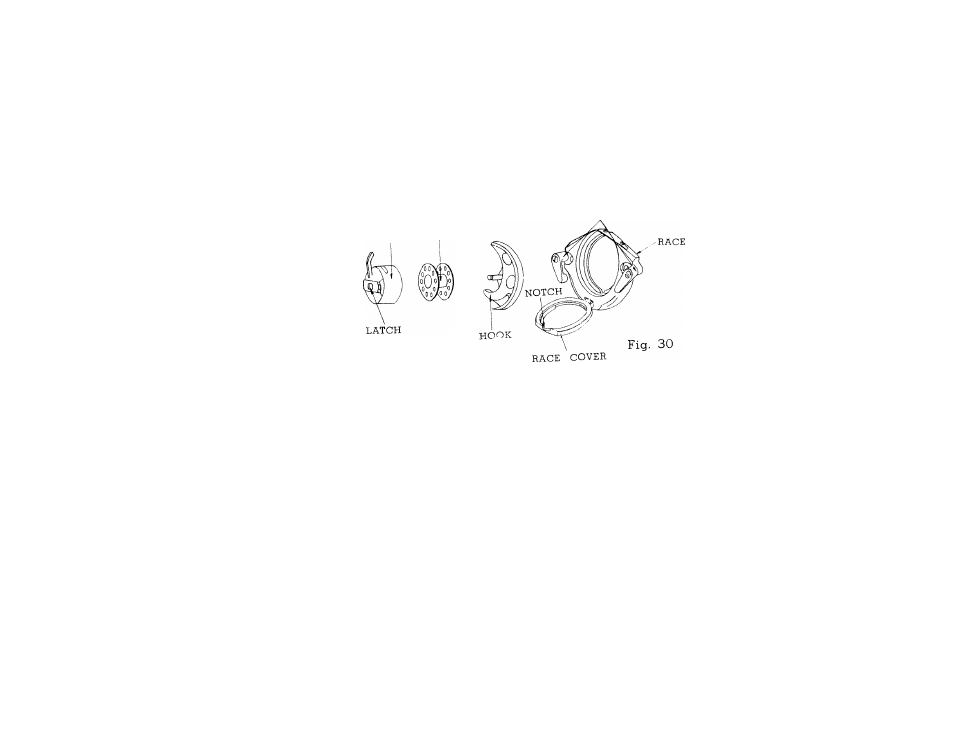

With take-up lever in highest position, tilt head
back on hinges and remove bobbin case.
CLAMPS
^°CASE BOBBIN
2 Turn clamps outward and remove race cover.
3 Remove hook.
4 Clean thread and lint from all parts, including
5 Run a drop of oil along rim oi hooK.
6- Replace hook, then race cover. Snap clamps
into place.
7 Grasp threaded bobbin case by latch and re
place, fitting tongue into notch of race cover.
