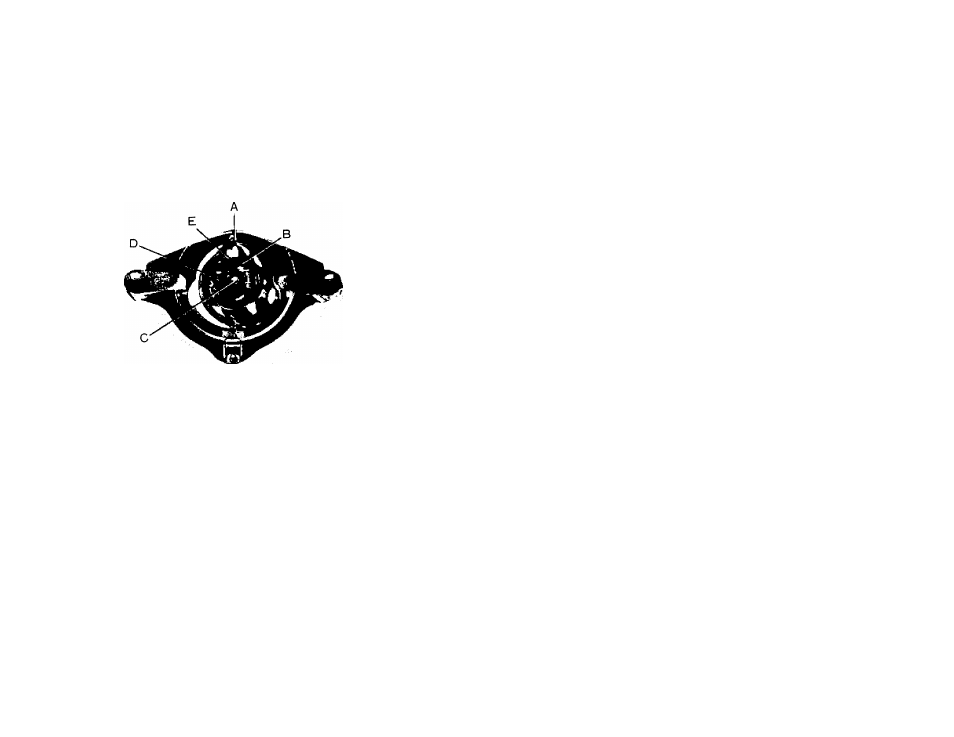

Fig. 12
PLACING BOBBIN CASE
Raise needle bar to highest position, and lift
hinged cover plate. (See 11 Fig. 1) Hold the
bobbin case latch (D, Fig. 12), between the thumb
and forefinger of the left hand, with at least three
inches of thread running from the top of the bobbin
case to the right. Insert and center the bobbin
case on the stud of the shuttle body, (C). Be sure
the bobbin case finger, (E), is opposite the shuttle
race notch, (A). Press the bobbin case (B) into
the shuttle as far as possible until latch catches
on the center post of the shuttle. Then release
the bobbin case latch, (D). Press bobbin case
again after latch has been released to make sure
the bobbin case is locked securely.
Close the cover plate.
