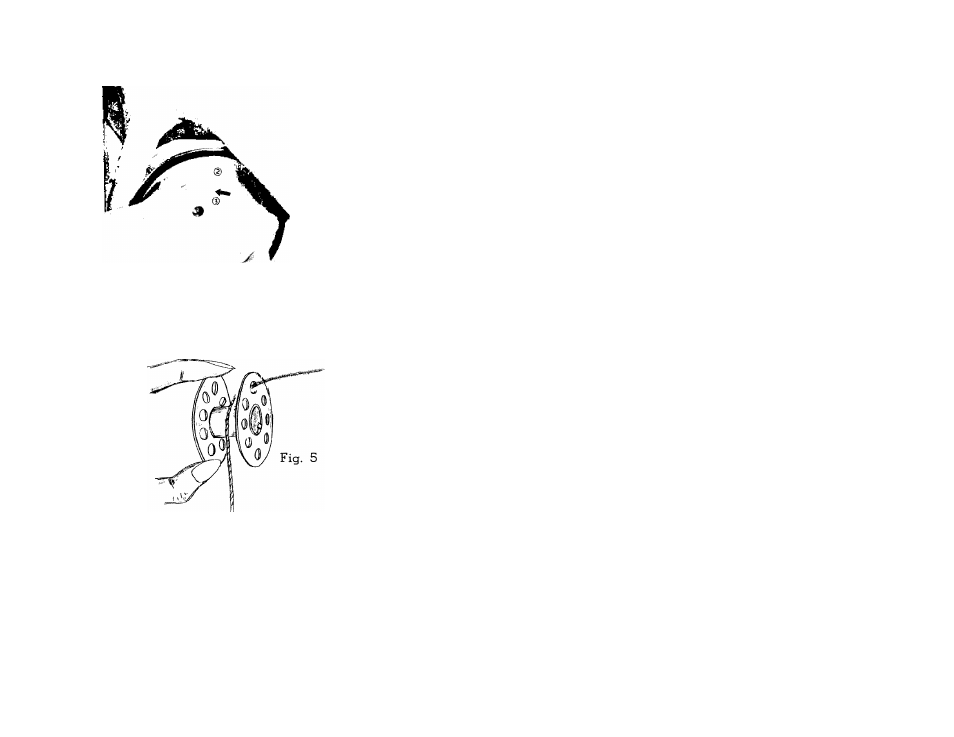

Fig. 4
WINDING THE BOBBIN
Disengage the hand wheel (2, Fig. 4) from the
stitching mechanism by turning clutch (3, Fig. 4)
toward you or counter-clockwise.
Place a spool of thread on one of the spool pins.
Lead thread through arm thread guides, (A, Fig.
3) and down between tension disc, 6, at the base
of the machine.
Put end of thread through a hole in bobbin
flange (Fig. 5) frcm inside to outside and place
bobbin, (B, Fig. 3) on spindle of bobbin winder (4,
Fig. 3) fitting the notch in bobbin over small pin
on spindle.
Push bobbin winder pulley against hand wheel.
Hold thread end loosely and start machine slowly.
Bobbin will be released when filled.
Hold the hand wheel and turn clutch away from
you until sewing mechanism is engaged so that the
needle moves up and down when you turn the hand
wheel.
Break off loose thread end used to start the
winding.
