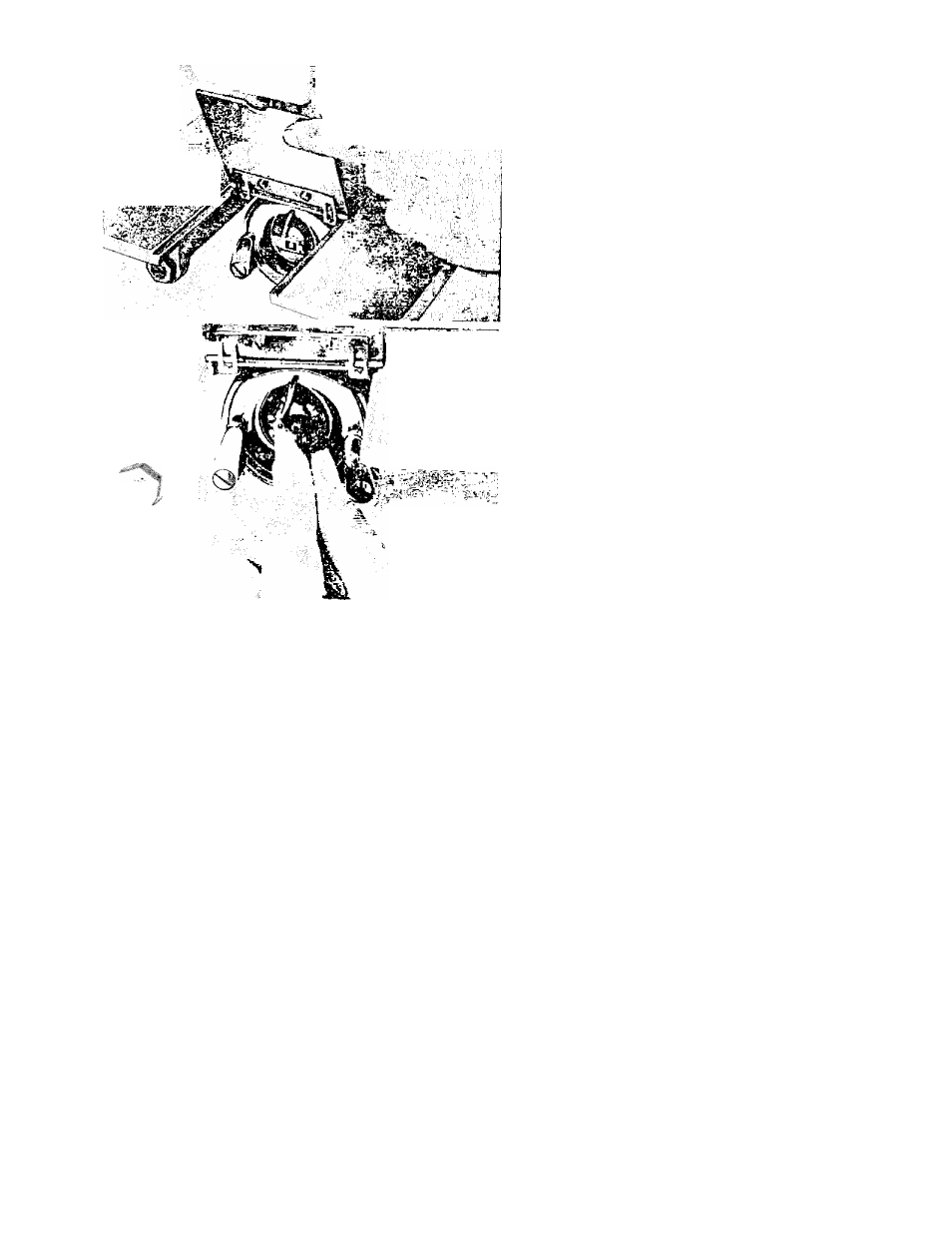

Our new type hinge plate supersedes the slide plate.

To open, place finger in recess and lift.

OPENING OR CLOSING THE HINGE PLATE

REMOVING THE BOBBIN CASE

Turn the balance wheel toward you until the needle bar

at its highest position.

Lift the hinged plate and insert thumb and forefinger of le

hand.

Open the latch of the bobbin case as shown and take out th

bobbin case by holding the latch.

Inportant—The shuttle hook and bobbin case can be knocke

out of position if you use a bent needle, or try to take oi

the bobbin case when the needle bar is lowered.
