SINGER W311 BBS User Manual
Page 49
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
601
• «
601—s
L
605
o
609—W
605—W
602
602-W-A
602-W-B
603
• •
603—s
^-4
604
602—S
o
609—W
609
606—S
615-S
608-S
b
606
608
»
610
u
610-W-A
O t
618
613
{
)
u
613—W “f 612
615
612—P
614—S
614-W
614
617

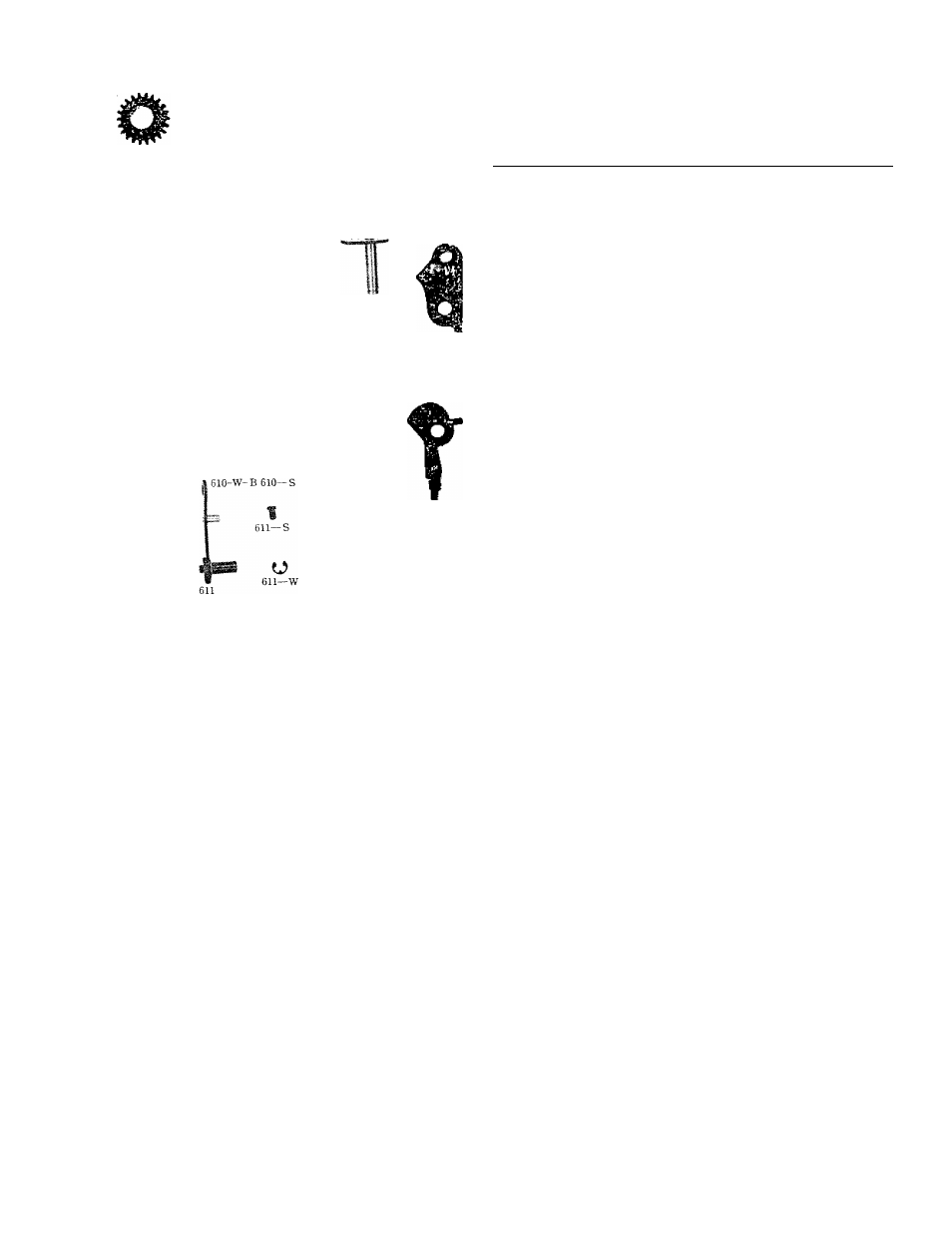

Parts No.
Description
Piece
609
S.S. Feed regulator fitting stud
1
609—W
S.S. Feed regulator fitting stud washer
2
610
S.S. Feed regulator stud
1
610—S
S.S. Feed regulator stud set screw
1
610-W-A
S.S. Feed regulator stud washer A
1
610-W-B
S.S. Feed regulator stud washer B
1
611
S.S. Cam lever
1
611—S
S.S. Cam lever set screw
1
611—W
S.S. Cam lever washer
1
612
S.S. Metal base
1
612—P
S.S. Lever stopper pin
1
613
S.S. Cam stud
1
613—W
S.S. Cam stud washer
1
614
S.S. Lever
1
614—S
S.S. Lever set screw
1
614—W
S.S. Lever washer
1
615
S.S. Base adjusting spring
1
615—S
S.S. Base adjusting spring stud screw
1
616
S.S. Indicator Plate
1
617
S.S. Lever knob
1
618
S.S. Feed regulator adjusting spring
1
