SINGER W311 BBS User Manual
Page 4
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

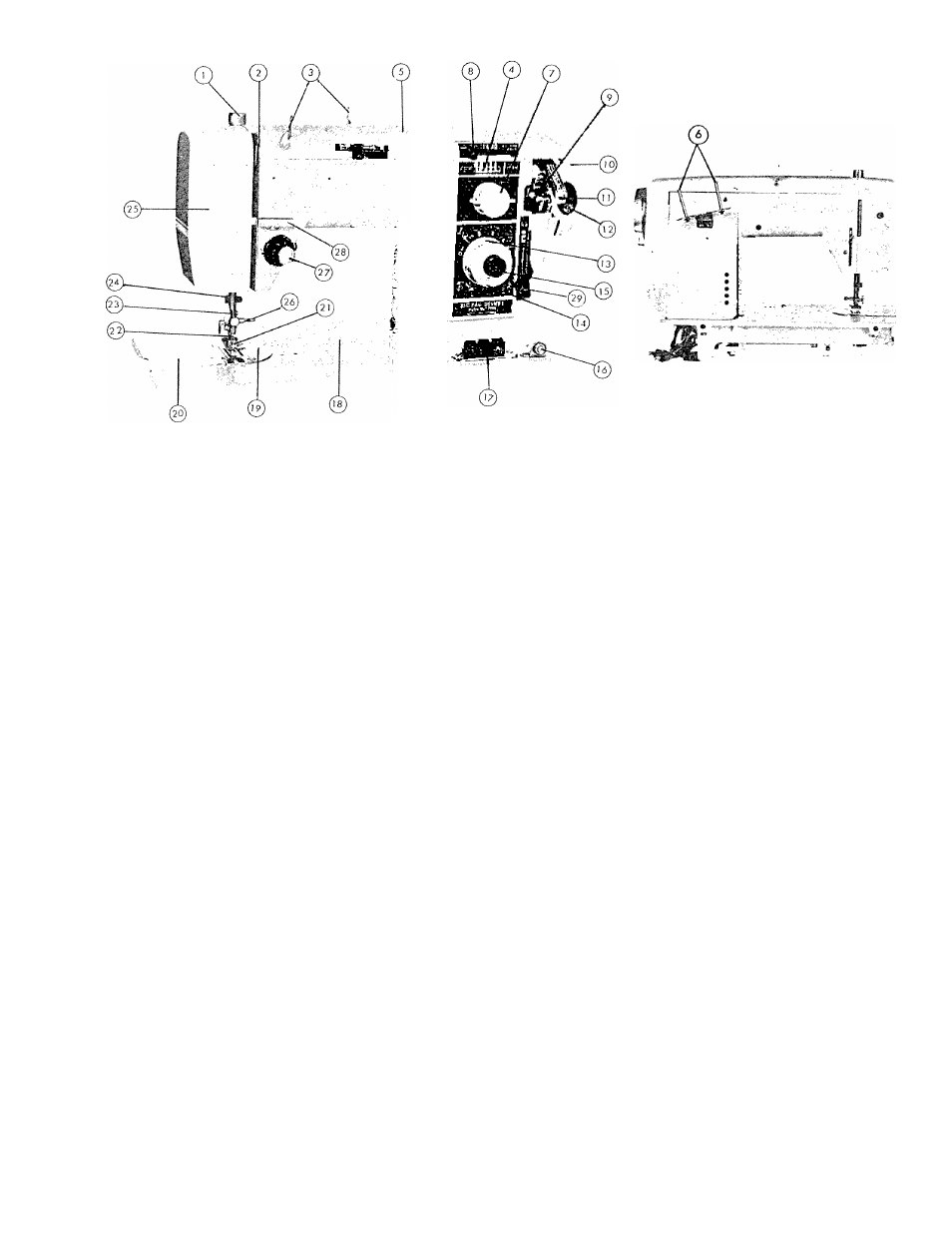

1 Pressure regulator
2
Thread take up lever
3 Upper thread guide
4 Zigzag window
5 Top cover
6 Spool pin
7 Zigzag lock
8 Zigzag lever
9 Bobbin winder release
10 Balance wheel
11 Bobbin winder lever
12 Rubber ring
13 Stitch length regulator
14 Stitch length dial
15 Reverse feed push button
16 Bobbin winder
tension bracket
17 Drop feed regulator
(push button type)
18 Bed-plate
19 Needle plate
20 Hinged plate
21 Presser foot
22 Needle
23 Needle bar thread guide
24 Thread cutter
25 Face plate
26 Needle clamp screw
27 Upper thread tension regulator
28 Arm thread guide
29 Stretch lever
