FORK

ARM

ADJUSTING

SCREW

ADJUSTING

LEVER

ADJUSTING

FINGER

SEPARATOR

BLADE

RUFFLING

BLADE

SEPARATOR

GUIDE

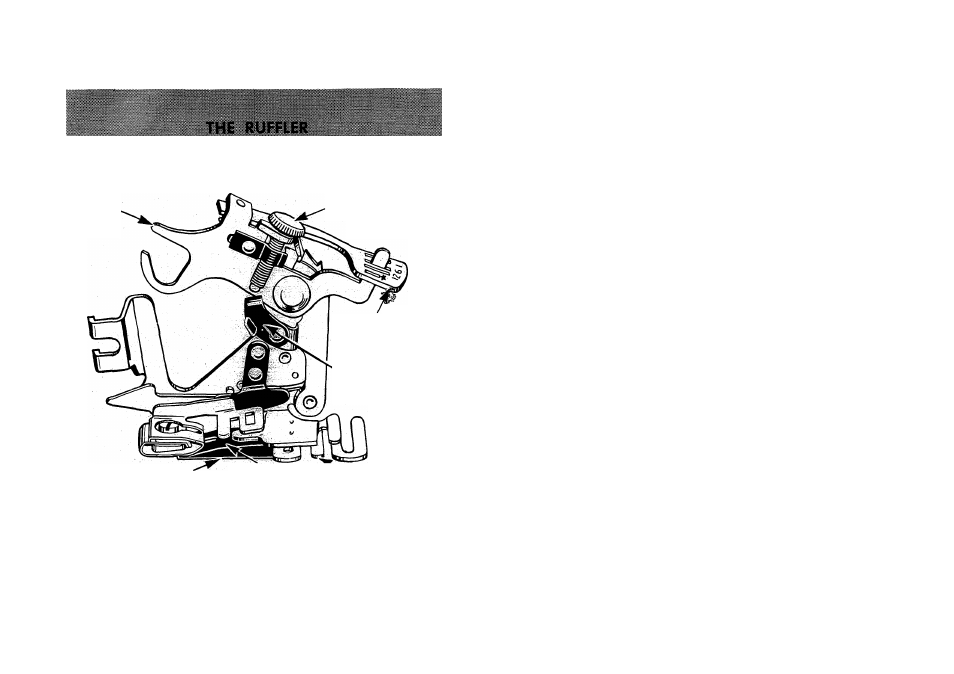

This attachment offers a simple and effective

way to make gathered and pleated rufHes. RufHes
may be made separately or made and applied at

the same time. The ruffler is attached to the
machine in place of the regular presser foot and
is used with a straight stitch setting only.

SELECTOR: AK

' RED LEVER: 3

THROAT PLATE: STRAIGHT STITCH

RUFFLER

Adjusting Points. 1. The adjusting lever sets

the ruffler for gathers or pleats.

The Number 1

space setting is for gathers, and places fullness at
every stitch. Numbers 6 and 12 are space settings
for pleats, Spacing them either 6 or 12 stitches
apart. The star- is for straight stitching, and is
used when grouping gathers or pleats.

2. The adjusting fìnger is used only for pleat

ing

and affects the width of the pleat. It is thrown

out of action by bringing it out of contact with
the adjusting screw, located directly above it.

3. The adjusting screw regulates the fullness

of gathers or pleats.

When turned down to its

limit with the adjusting liiiger in place, the at

tachment is set for its deepest pleat. When turned
upward to its limit and the adjusting finger out

of action, the ruffler gives only a hint of fullness.
