CLEANING AND OILING THE SHUTTLE

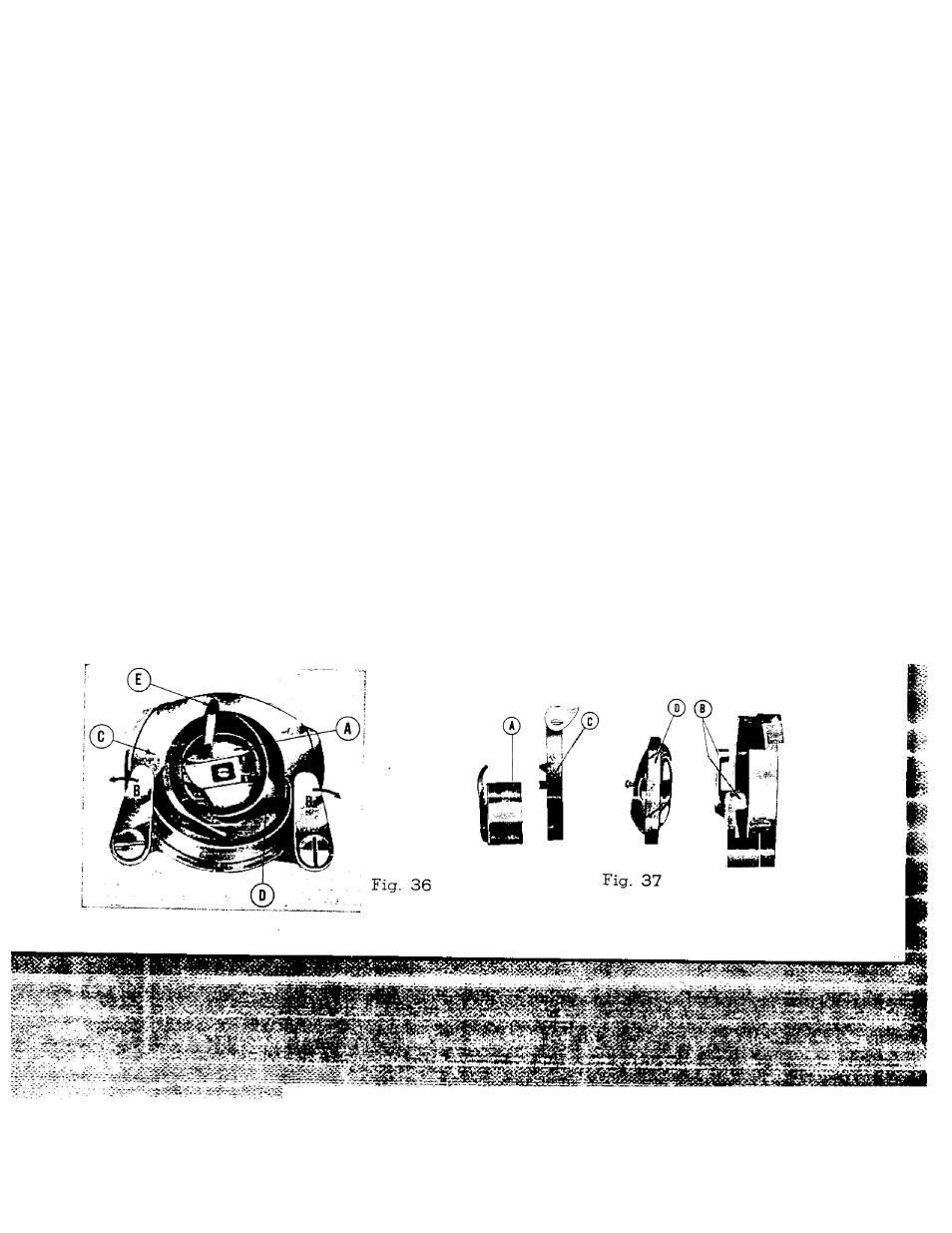

(See Figs. 36 and 37)

The

stitcn

forming

mechanism

occasionally

becomes

clogged

with

loose

threads

and

lint.

This

will

interfere

with

the

efficient

operation

of

the

machine.

Cleaning

and

removal

of

the lint will safeguard the performance. To remove the shuttle assembly, proceed as follows.

1.

Turn the balance wheel until the needle reaches its highest position. Tilt head back

on its hinges.

2.

Remove bobbin case (A), Fig. 36.

3.

Turn the two shuttle race cover clamps (B) outward and remove the shuttle race cover
(C) and shuttle body (D).

...........

--- ■
