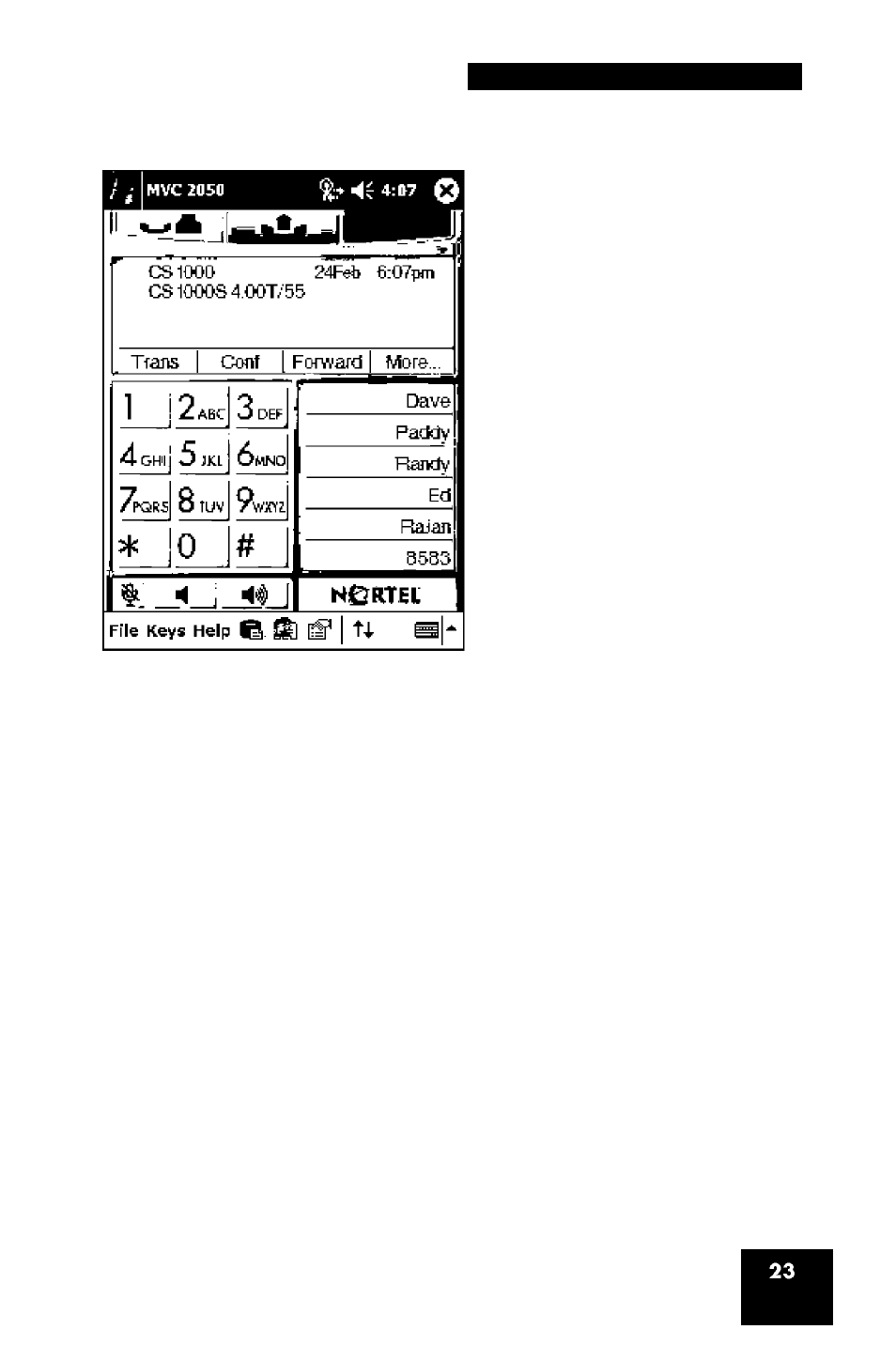

MVC 2050 Call Handling screen

Figure 9: Lime skin

Display

The display is located in the central area of the skin. See Figure 6 on

page 20.

Programmable line/feature keys

Six programmable line/feature keys are located on the right side of the

skin. They are aligned vertically and are the same color as the display.

See Figure 6 on page 20.

Soft keys (self-labeled)

Four soft keys (self-labeled) are located in the bottom row of the display

area. See Figure 6 on page 20.

Note 1: The label on the key changes, based on the active feature.

Note 2: A triangle before a key label indicates that the key is active.
