NOTE:
DO NOT make hose connections until the hose routing
and lengths have been determined. Remove the condensate trap
and drain hoses from the furnace and secure the drain hoses to
the drain stubs on the trap with the hose clamps (position the

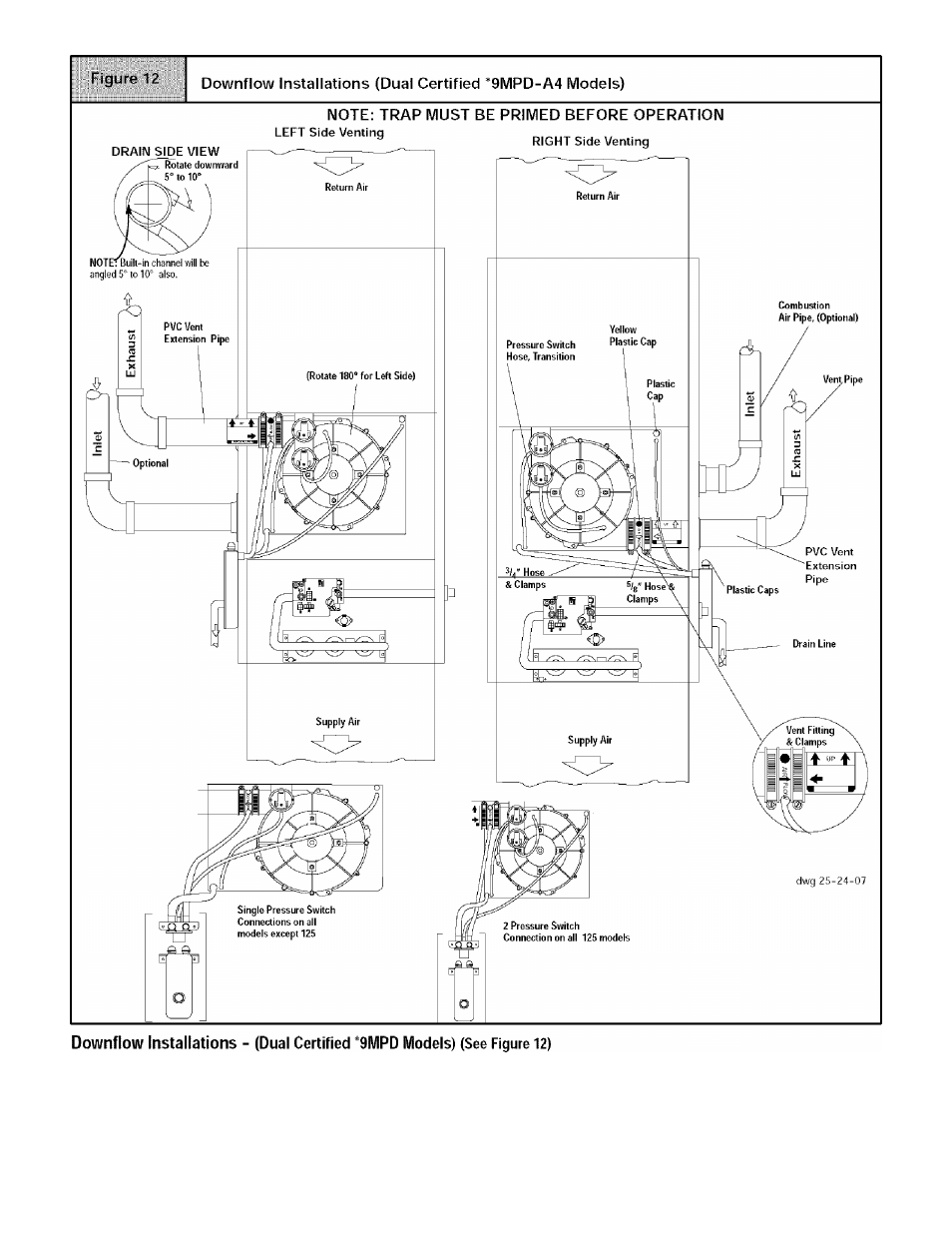

clamps as shown in
Figure 12).
Install the condensate trap/hose
assemblyto the furnace casing. Hook one side of the "clamp ears"
on the drain stub through the hole in the casing and push the con
densate trap into position. Secure with the two screws. Recon
nect the drain hoses to the stubs on the vent fitting and the plastic
transition and secure with the clamps.
Mount the condensate drain trap in a vertical position to either the
right or left side of the furnace using the two screws and gasket
