assembly
WARNING;
FOR
YOUR
OWN
SAFETY,
NEVER
CONNECT PLUG TO POWER SOURCE OUTLET UNTIL
ALL ASSEMBLY STEPS ARE COMPLETED.

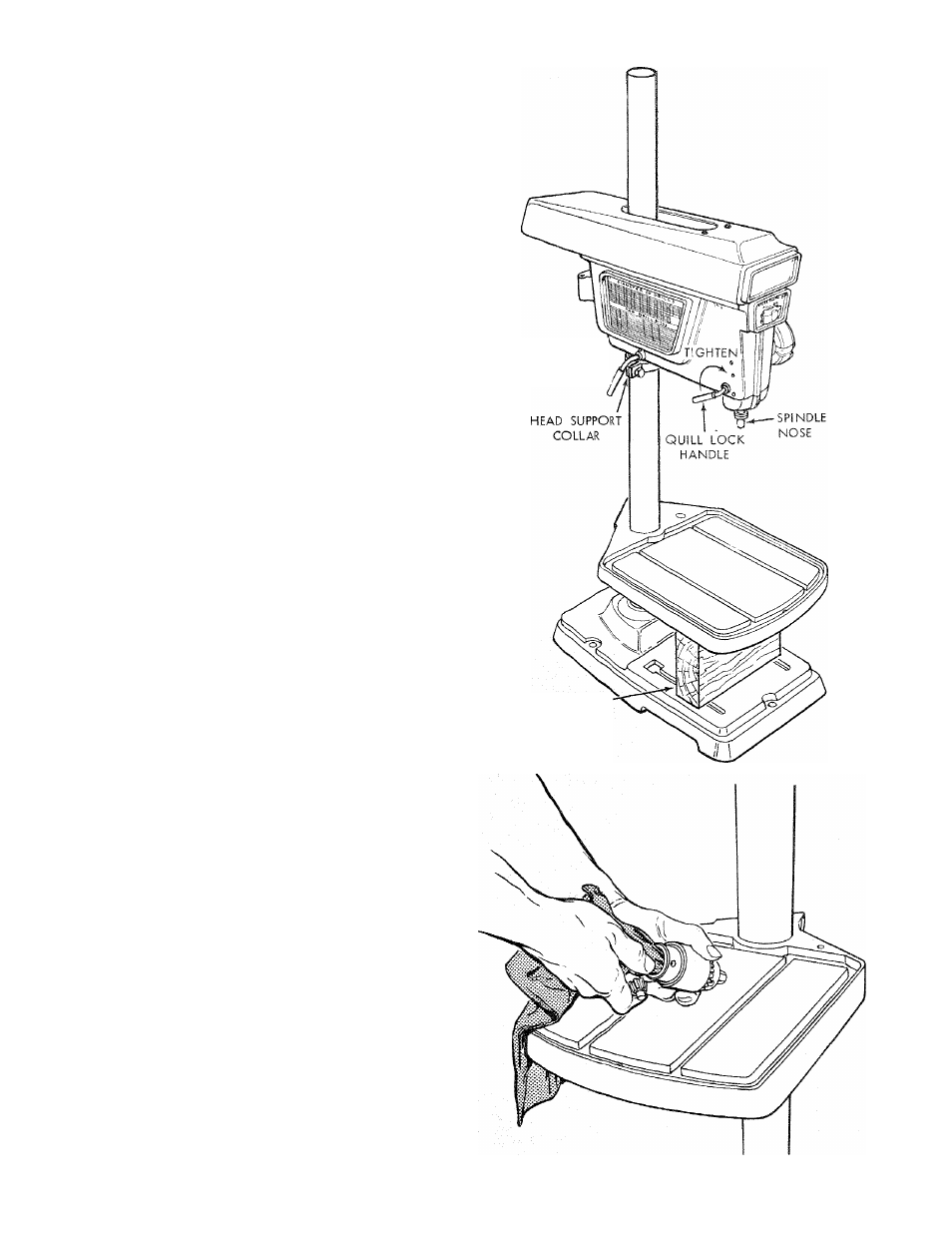

1. Unwind the power cord.
2. Make sure the quill lock handle is tight.
3.
Stand on the left side of the drill press and LOOSEN
the HEAD LOCK HANDLE.
4.
Raise the HEAD about HALF WAY up the column.
CAUTION:
THE
HEAD
WEIGHS
ABOUT
70
POUNDS
DROPPING
THE
HEAD
ACCIDENTLY
COULD
CAUSE
PERSONAL INJURY OR DAMAGE THE DRILL PRESS.
5. TIGHTEN the Head Lock Handle.
6.
Position
the
HEAD-SUPPORT
COLLAR
underneath
the head and tighten the TWO BOLTS using a 1/2 in.
wrench.
HEAD
LOCK HANDLE
PACKING BLOCK
IN
ORDER
TO
RAISE
THE
HEAD
TO
A
HIGHER
POSITION,
IT
WILL
BE
NECESSARY
TO
INSTALL
SEVERAL PARTS.
INSTALLING THE CHUCK
1.
Clean out the TAPERED HOLE in the chuck; clean the
spindle nose with a clean cloth. Make sure there are no
foreign particles sticking to the surfaces. The slightest
piece of dirt on the spindle nose or in the chuck will
prevent the chuck from seating properly. This will cause
the drill to "wobble."
