Sears 917.275223 - Manual (Page 49)

TRACTOR- MODEL NUMBER917.275223

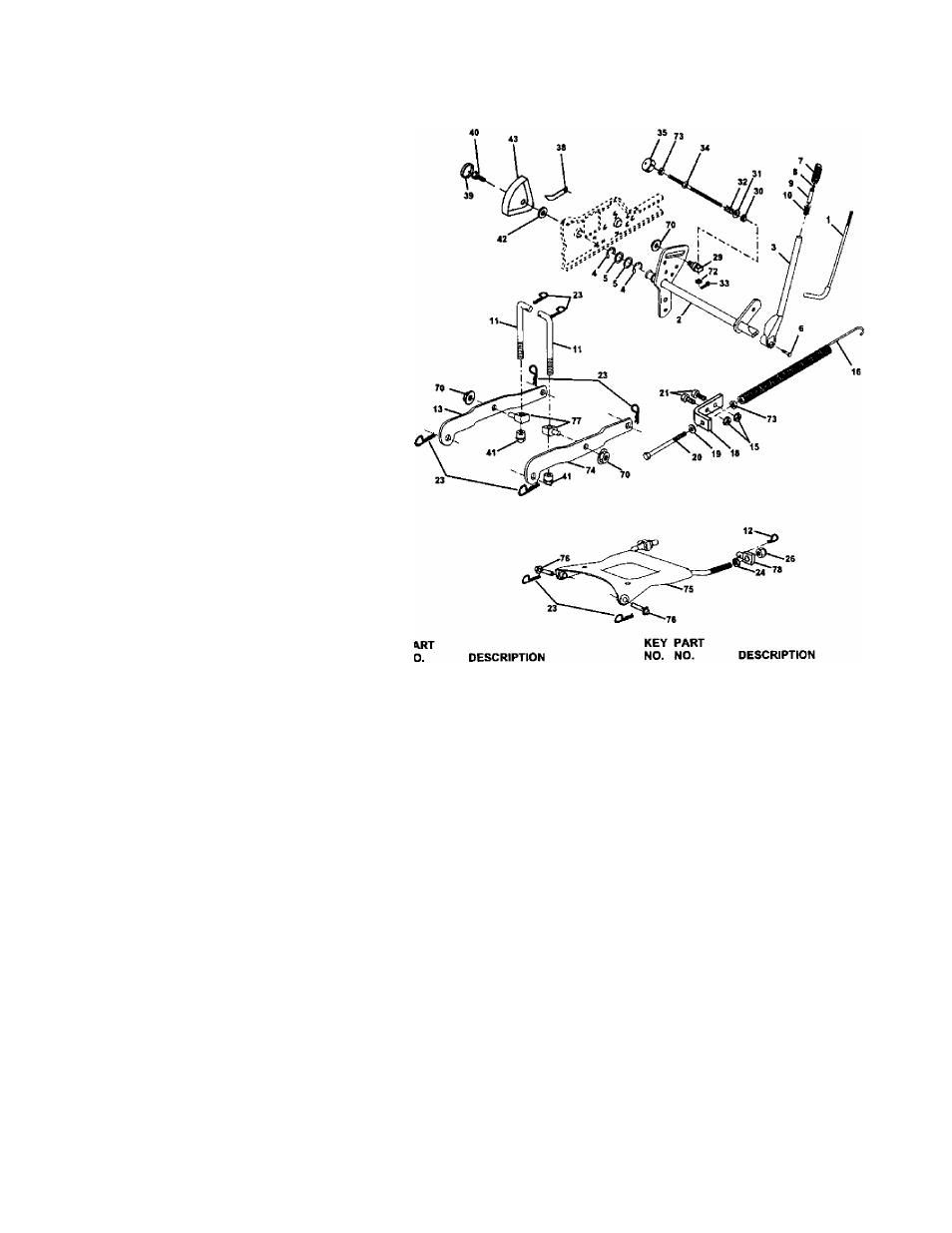

LIFT ASSEMBLY
NO.
1 121006X Rod Asm., Lever
2 177535 Shan Asm., LiflVgl
3 159189 Lever Asm., un Rh
4 12000022 E-FHngTnjarc#5133-87
5 19292016 Washer 29/32 x 1-1/4 X 16 Ga.
6 71110624 B o H, Fin Hex 3/8-16 X 1-1/2
7 175830 Grip, Handle Fluted
8 175831 Button, Plunger
9 122364X Plunger, Button
10 2676H Spring 2-1/8"
11 175375 Link Lift
12 163552 Retainer Spring
15 STD541437 Nut, Crownlock 3/8-16 Une
16 674A247 Spring/tem., Assist Lift
18 143363 Bracket, Spring Assist
19 STD551037 Washer 13/32 X 13/16 X 16 Ga.
20 5328J Bolt, Adjust Spring Assist
21 STD523710 Bolt, Fin Hex 3/8-16 x 1
23 STD624008 Retainer, Spring
24 73350800 Nut, Jam Hex 1/2-13 Une
26 73680800 NutCrownlock 1/2-13 Une
29 150233 Trunnion, Infin Height
30 110807X Nut, Special
49
31 5TDS51037 Washer 13/32 X 5/8 X 16 Ga.
32 137150 Spring, Compression Inf Hgt
33 STDS60907 Pin, Cotter 3/32 x 1/2
34 137167 Rod, AdJ Lift
35 138057 Knob, Inf 3/8-16 Unc
33 155097 Pointer, Height Indicator
39 123935X Plug, Hole
40 17490516 Screw Hex Wsh 5/16-18x1
41 175994 Nut, Lift Unk 7/16-20
42 19112410 Washer 11/32 X 1-1/2 X 10 Ga.
43 123934X Scale, Indicator Height
70 145212 Nut Hex Flange Lock
72 110452X NutPushPhosiOn
73 73350600 Nut Hex Jam 3/8-16 UNC
74 175802 Arm Susp. Rear RH
75 175805 Plate Asm. Susp. Front
76 175560 Pin, Flange
77 176205 Trunnion Susp. Arm
78 175689 Tnjnnion Susp. Front
79 175378 Arm, SUsp. R LH
NOTE: All component dimensions given in U. S.
inches 1 Inch = 25.4 mm
