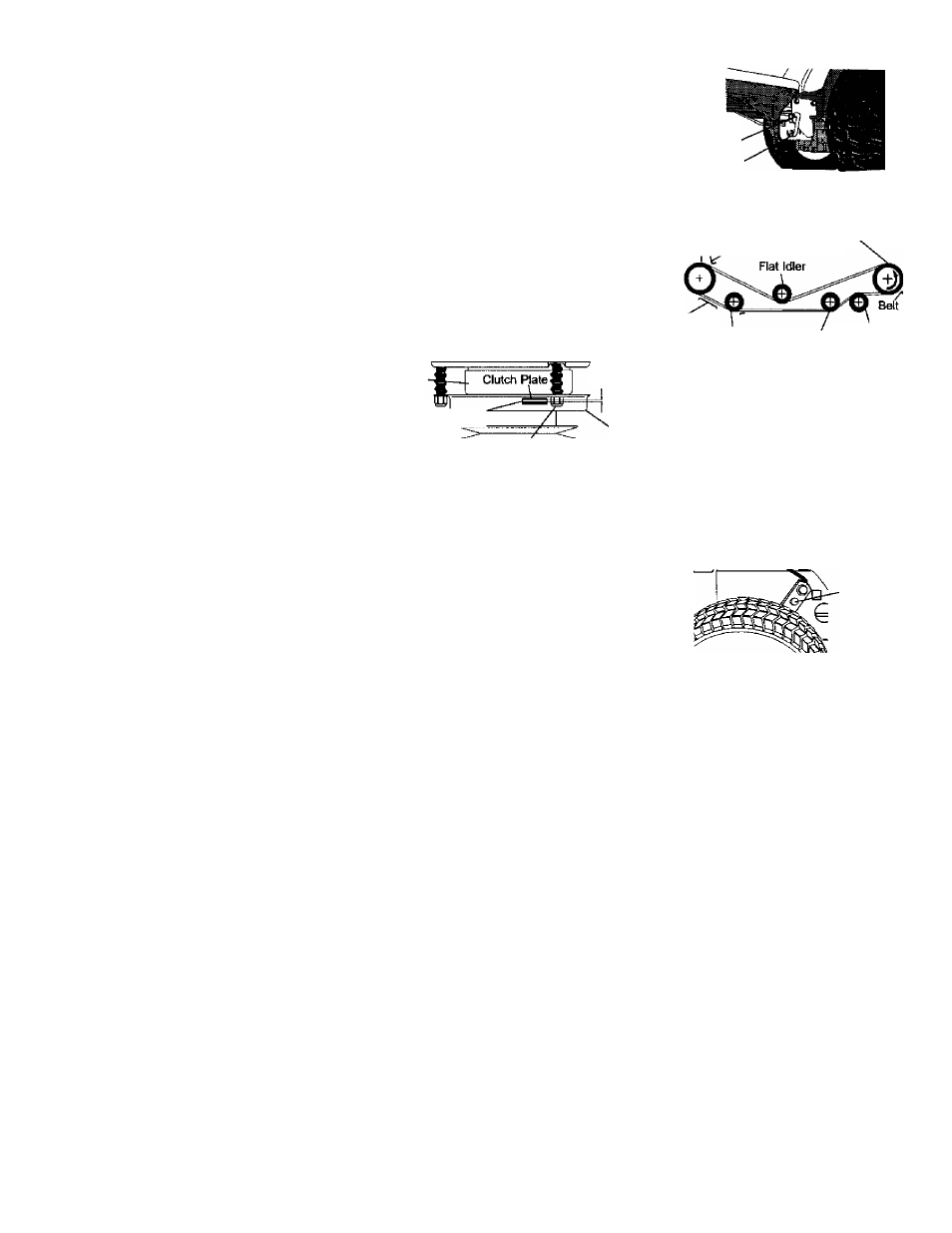

TO ADJUST ATTACHMENT CLUTCH
The electric clutch should provide years
of service. The clutch has a built-in brake
that stops the pulley within 5 seconds.
Eventually, the internal brake will wear
which may cause the mower blades to
not engage, or, to not stop as required.
Adjustments should be made by your
nearest authorized service center/
department.
1. Make sure attachment clutch and
ignition switches are in "OFF" position.
2. Adjust the three nylon locknuts until
space between clutch plate and rotor
measures .012" at all three slot
locations cut in the side of brake plate.
NOTE: After installing a new electric
clutch, run tractor at full throttle and
engage and disengage electric clutch 10
cycles to wear in clutch plate.
Rotor-
. 012 ’
Slot (3) —^
Nylon Locknut ( 3 ) '
Brake
Plate
Retainer
Spring
Drive Belt
Tension
Handle
Engine Pulley Transaxle Pulley
;lt Keeprer
Belt ,
Keeper v-ldler , Keeper
Clutching
Catching p| 3 (
Idler
TO REPLACE MOTION DRIVE BELT
Park the tractor on level surface. Engage
parking brake. For ease of service there
is a belt Installation guide decal on
bottom of left footrest.
1. Remove mower (See “TO REMOVE
MOWER” in this section of this
manual.)
BELT REMOVAL -
2. Create slack in belt by removing
retainer spring from drive belt tension
handle.
3. Remove belt from all idler pulleys,
transaxle pulley and then lk>m engine
pulley.
BELT INSTALLATION -
1. Install new belt around engine pulley
first, then around transaxle pulley and
lastly into all the idler pulleys.
2. Check to be sure belt is positioned
correctly and is on proper side of all
belt keepers.
3. Engage the drive belt tension handle
and replace the retainer spring.
4. Reinstall mower.
TRANSAXLE MOTION CONTROL
LEVER NEUTRAL ADJUSTMENT
The motion control lever has been preset
at the factory and adjustment should not
be necessaiy.
1. Park Tractor on level surface. Stop
tractor by turning ignition key to “OFF”
position and engage parking brake.
2. Loosen the adjustment bolt in front of
the right rear \^eel.
3. Move motion control lever to the
neutral position.
4. Tighten the adjustment bolt.
Adjustment
Bolt
TRANSMISSION REMOVAUREPLACE-
MENT
Should your trartsmission require
removal for service or replacement, it
should be purged after reinstallation and
before operating the tractor. See
"PURGE TRANSMISSION” in the
Opteration section of №is manual.
28
